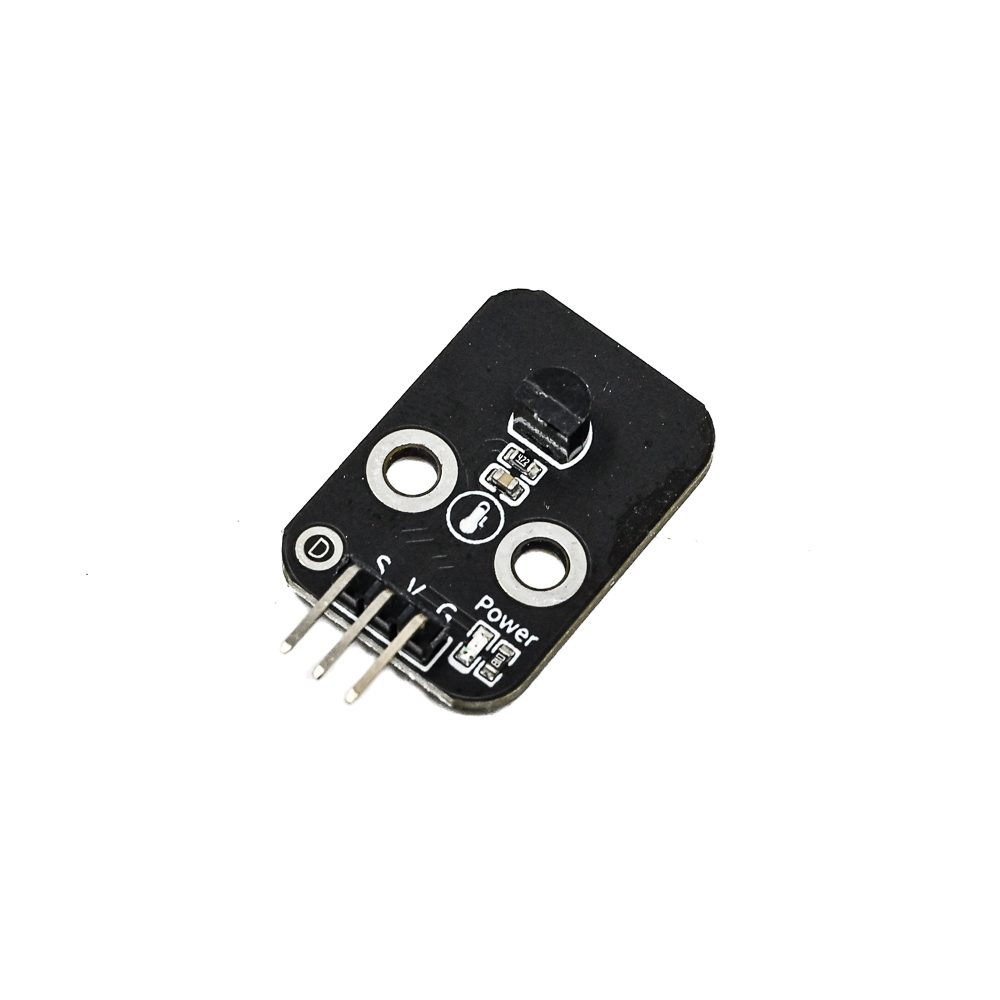

HS-S24A Digital Temperature Sensor Module - 3.3-5.5V Digital Output

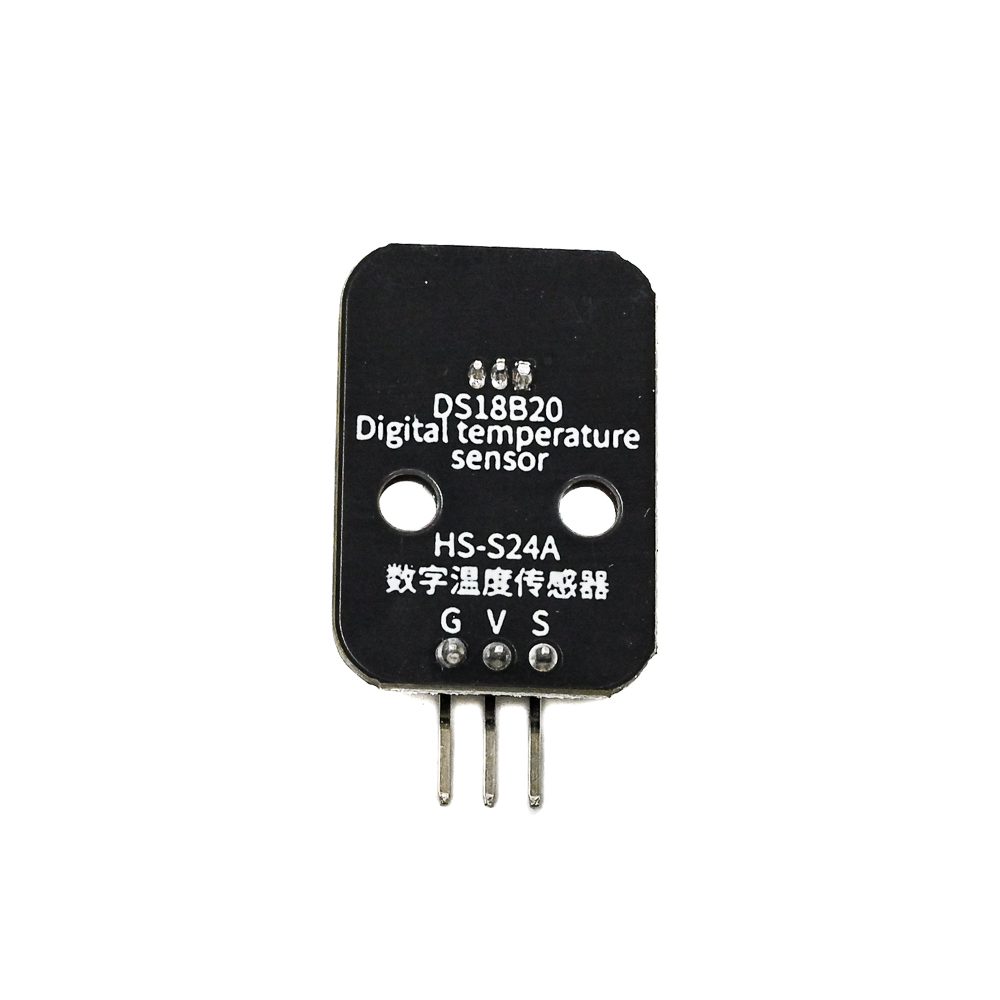

HS-S24A Digital Temperature Sensor Module - 3.3-5.5V Digital Output - Image 2
SKU: SENS-3388
📋 GST Invoice Available

HS-S24A Digital Temperature Sensor Module - 3.3-5.5V Digital Output

₹116.00 (Inclusive of all taxes)
Out of Stock

The HS-S24A is a compact digital temperature sensor module compatible with 3.3V and 5V logic systems like Arduino, Raspberry Pi, and ESP32. It provides accurate real-time temperature readings via a single digital output pin for integration into automation and monitoring projects.

Features

  • Digital temperature sensor with single-wire output interface
  • Wide operating voltage range from 3.3V to 5.5V DC
  • Compact PCB module with 2.54mm pin header for easy prototyping
  • Stable performance across a broad environmental temperature range
  • Includes mounting holes (3mm aperture, 10mm spacing) for secure installation

Out of stock

Description

The HS-S24A Digital Temperature Sensor utilizes a semiconductor sensing element to provide precise thermal monitoring. It outputs a digital signal proportional to ambient temperature, simplifying integration compared to analog sensors by eliminating the need for ADC conversion. The module includes on-board signal conditioning for stable readings.

Designed for durability, the sensor is suitable for integration into enclosed electronics enclosures, smart home devices, and industrial control panels. Its digital output ensures reliable communication with microcontrollers and single-board computers, minimizing noise susceptibility for consistent performance in HVAC, environmental monitoring, and automation systems.

Key Features

  • Digital single-wire output for simplified microcontroller interfacing
  • Low-power operation suitable for battery-powered monitoring nodes
  • Compact PCB footprint (26mm x 18mm) for space-constrained designs
  • Pre-drilled mounting holes for secure mechanical fixation in end products
  • Wide 3.3V to 5.5V supply range ensures compatibility with 3.3V and 5V logic families
  • Optimized performance-to-cost ratio for high-volume embedded applications

Applications

  • Smart thermostat and HVAC system temperature feedback control
  • Embedded temperature monitoring in 3D printer enclosures and electronics cases
  • Environmental data logging nodes for weather stations and indoor air quality monitors
  • Over-temperature protection circuits in power supplies and battery management systems
  • Process temperature verification in small-scale industrial automation and laboratory equipment

Technical Specifications

Model NumberHS-S24A
Sensor TypeDigital Temperature Sensor
Operating Voltage3.3V to 5.5V DC
Output InterfaceDigital Signal (Single-wire)
Pin Interface3-pin 2.54mm Header (GND, VCC, Signal)
Module Dimensions (LxWxH)26mm x 18mm x 10mm
Module Weight4g (approx. 0.004 kg)
Mounting Hole Aperture3mm
Mounting Hole Spacing10mm

Frequently Asked Questions

What is the output type of the HS-S24A sensor and how do I read it with a microcontroller?

The HS-S24A provides a digital output signal on its 'S' pin. To read the temperature, connect this pin to a digital input on your microcontroller (e.g., Arduino, ESP32). You will need to implement the specific timing protocol for this sensor to request a measurement and read the resulting pulse width or data frame, as the exact communication method is vendor-specific.

What is the operating voltage range and can I power it directly from a 5V Arduino pin?

The module operates from 3.3V to 5.5V DC. You can safely power it from the 5V output pin of an Arduino Uno or similar board. Ensure you connect the module's VCC to your board's 5V rail and GND to a common ground. The digital signal pin is typically compatible with both 5V and 3.3V logic levels.

How do I physically mount the HS-S24A module in my project enclosure?

The PCB includes two mounting holes with a 3mm diameter and a center-to-center spacing of 10mm. Use M3 screws and standoffs to securely fasten the module to your enclosure or chassis, ensuring the sensor element has adequate airflow for accurate ambient temperature measurement and is isolated from heat-generating components.

Package Includes

  • 1 x HS-S24A Digital Temperature Sensor Module

Additional Information

Weight 0.004 kg
Dimensions 2.6 × 1.8 × 1 cm

Related Products

Out of Stock

Keyestudio LM35 Linear Temperature Sensor Module for Arduino

339.00
Learn More
Out of Stock

DFRobot Gravity SFA40 HCHO Sensor (0–1000 ppb Wide Range, High Accuracy ±20 ppb) - I2C Interface

6,609.00
Learn More
Out of Stock

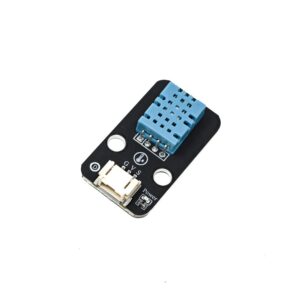

HS-S26-L Digital Temperature & Humidity Sensor Module - PH2.0 3-Pin

309.00
Learn More
Out of Stock

Asair AM2305B Digital Temperature and Humidity Sensor - 3.3-5.5V Digital Interface

1,349.00
Learn More
Out of Stock

WTMotion WT931+ Evaluation Board with Separate Pin Headers (Unsoldered) - 9-Axis IMU Module

4,359.00
Learn More
Out of Stock

Generic LM35D Analog Temperature Sensor Module (Without Cable) - Analog Voltage Output

138.00
Learn More
Out of Stock

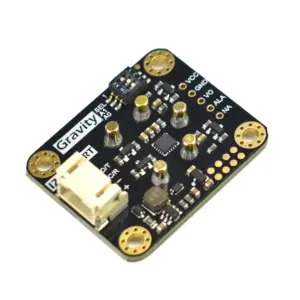

DFRobot Gravity H2 Gas Sensor Calibrated - I2C, UART & Analog Output
