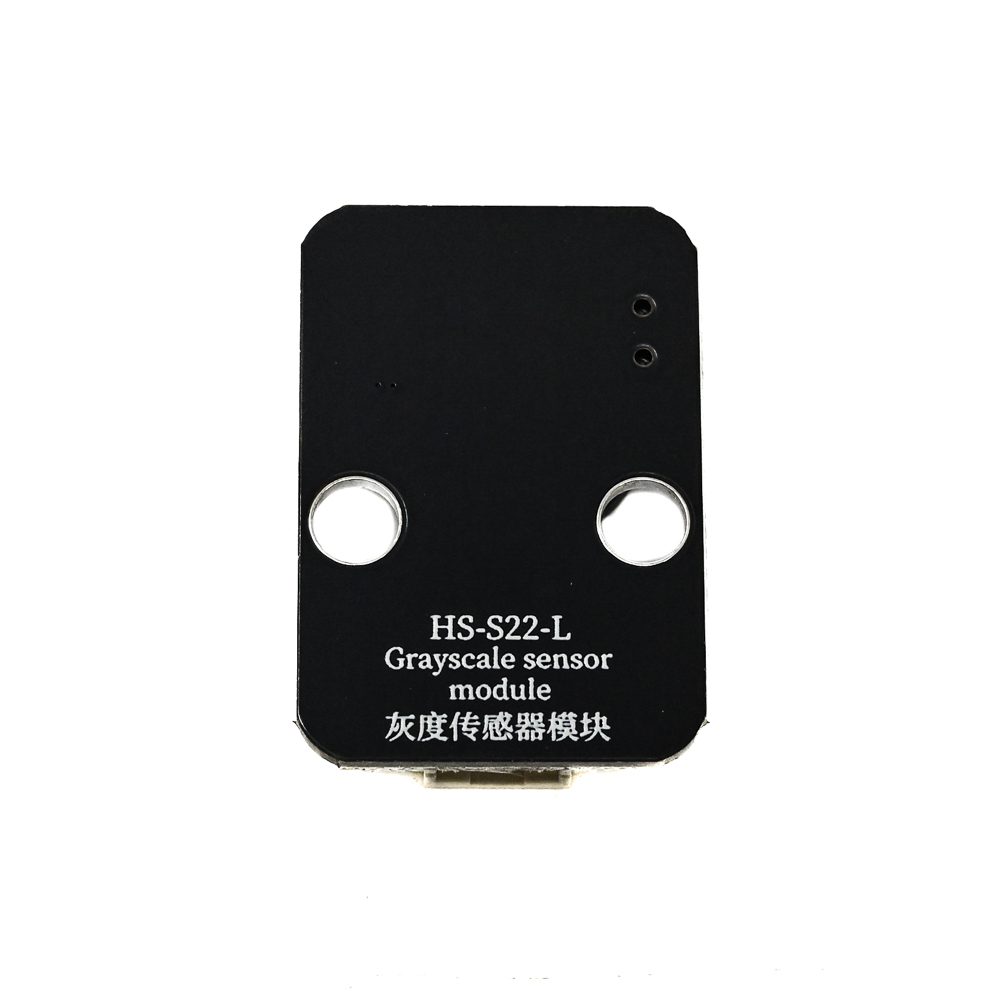

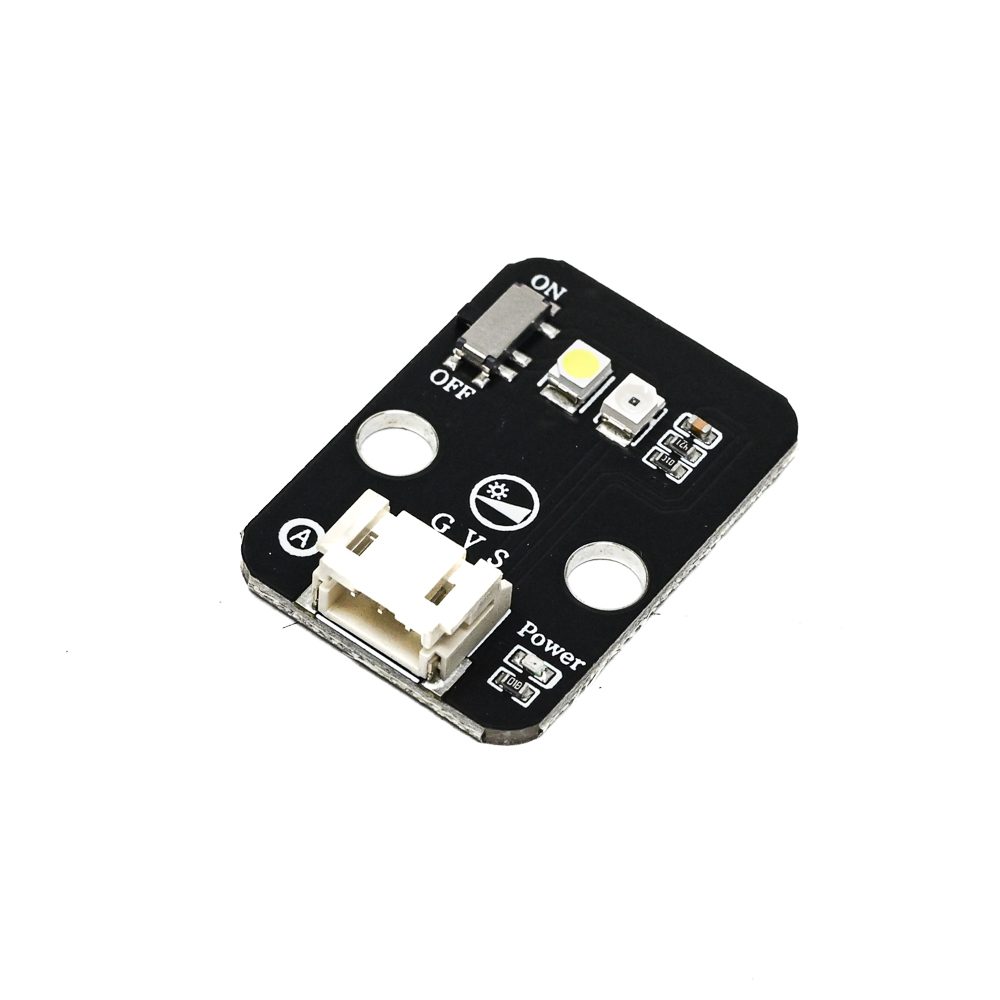

HS-S22-L Grayscale Sensor Module - Analog Output, PH2.0 3P Connector
The HS-S22-L is a compact analog grayscale sensor module designed for robotics and automation systems, providing precise detection of surface reflectivity and grayscale levels. It operates on a 3.3V to 5.5V DC supply and outputs an analog voltage signal compatible with microcontrollers like Arduino, Raspberry Pi, and ESP32 for easy integration.
Features
- Analog output for precise grayscale intensity measurement.
- Wide operating voltage range from 3.3V to 5.5V DC.
- Compact PCB design measuring 33mm x 23mm for easy integration.
- PH2.0 3-pin connector for reliable power and signal connection.
- High sensitivity for detecting subtle differences in surface reflectivity.
Out of stock
The HS-S22-L Grayscale Sensor operates on a reflective optical sensing principle. It emits light from an integrated LED and measures the intensity of the light reflected from a target surface. The analog output voltage corresponds directly to the surface’s grayscale level, with darker surfaces absorbing more light and producing a lower output signal.
This module is engineered for stable performance across various lighting conditions and environments, making it suitable for embedded systems. Its simple three-wire interface (VCC, GND, Signal) allows for straightforward connection to analog input pins on most development boards and industrial PLCs.
Additional Information
| Weight | 0.004 kg |
|---|---|
| Dimensions | 2.3 × 3.3 cm |
