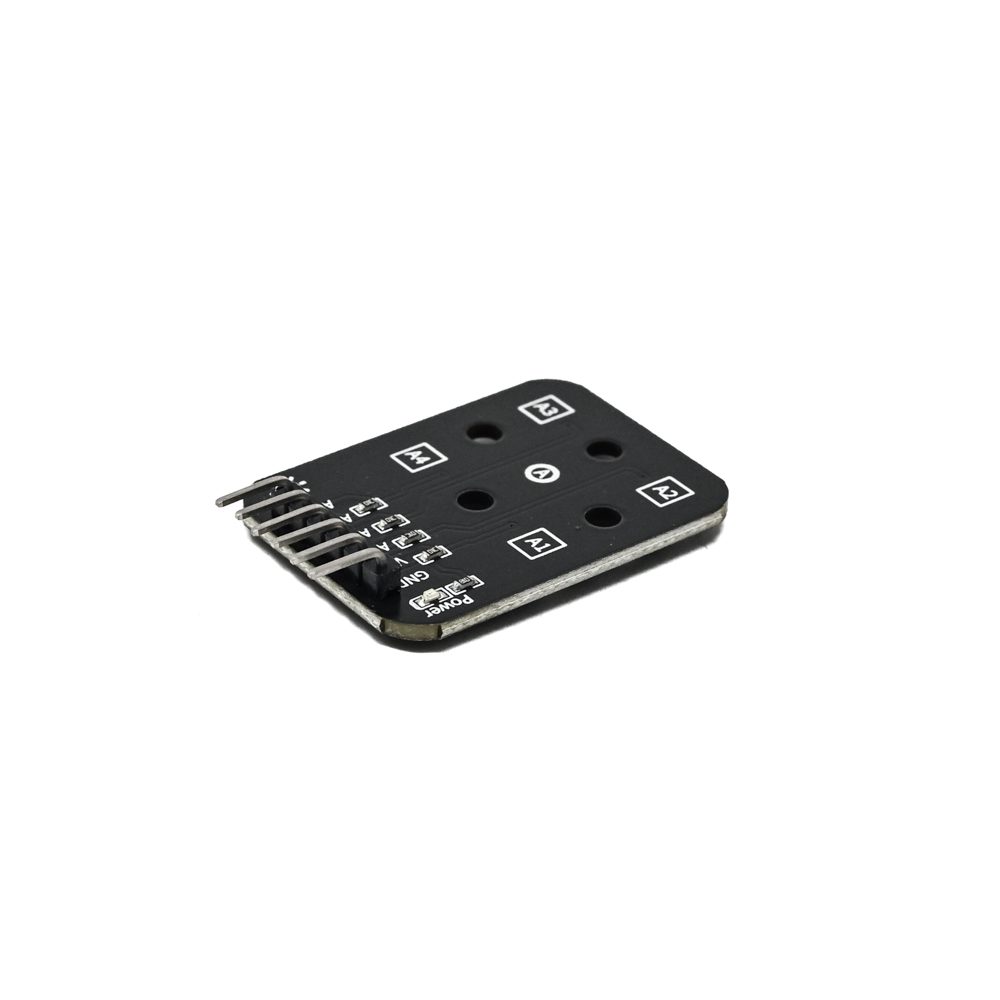

HS-S06 Four-way Photosensor Module - 4-Channel Digital Output, 3.3V-5.5V, 2.54mm Pin Header

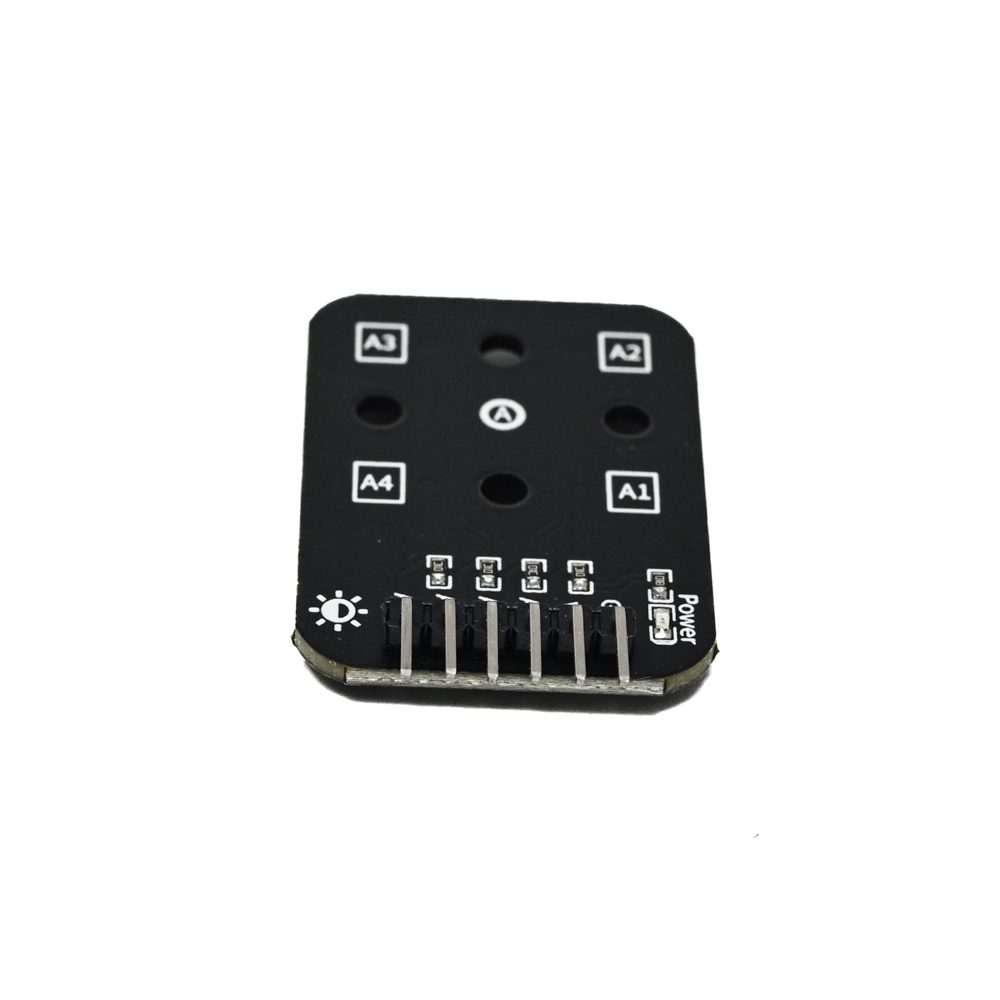

HS-S06 Four-way Photosensor Module - 4-Channel Digital Output, 3.3V-5.5V, 2.54mm Pin Header - Image 2
SKU: SENS-1704
📋 GST Invoice Available

HS-S06 Four-way Photosensor Module - 4-Channel Digital Output, 3.3V-5.5V, 2.54mm Pin Header

₹119.00 (Inclusive of all taxes)
Out of Stock

The HS-S06 is a 4-channel digital photosensor module compatible with 3.3V and 5V logic systems like Arduino, Raspberry Pi, and ESP32. It provides four independent digital outputs for multi-directional light detection, line following, and obstacle avoidance in robotics and automation projects.

Features

  • Four independent digital outputs for multi-directional detection
  • Wide 3.3V to 5.5V operating voltage range
  • Standard 2.54mm pin header for easy interfacing
  • Compact 36mm x 26mm x 9mm PCB with pre-drilled mounting holes
  • 10-30mm typical detection distance for precise sensing

Out of stock

Description

The HS-S06 Four-way Photosensor Module is a photoelectric sensor designed for robotics and automation control systems. It utilizes four independent phototransistor or photodiode circuits to generate digital signals based on reflected light intensity, enabling precise line tracking, edge detection, and object presence sensing.

Operating from a 3.3V to 5.5V DC supply, it is directly compatible with common microcontroller platforms. The module outputs a clean digital signal for each channel, simplifying integration into feedback loops for motor control, conveyor belt sorting, and autonomous navigation systems.

Key Features

  • Multi-channel digital output for simultaneous detection zones
  • Broad voltage compatibility for flexible system integration
  • Standard 2.54mm pin spacing for reliable breadboard and PCB connection
  • Compact, lightweight PCB design optimized for embedded applications
  • Pre-drilled 3mm mounting holes for secure mechanical installation
  • High-value build offering reliable performance for educational and prototyping use

Applications

  • Multi-line follower robots for competition or education
  • Object counting and sorting on conveyor systems
  • Edge detection and limit sensing in CNC or 3D printer beds
  • Obstacle avoidance for autonomous mobile robots (AMRs)
  • Position feedback in simple automated guided vehicles (AGVs)

Technical Specifications

Model NumberHS-S06
Item TypePhotosensor Module
Detection Distance10–30 mm
Operating Voltage3.3 – 5.5 V DC
Output Signal4x Digital (High/Low)
Interface2.54mm Pin Header (G, V, S1, S2, S3, S4)
Dimensions (L x W x H)36 x 26 x 9 mm
Weight6.0 g
Mounting Hole Diameter3 mm
Mounting Hole Spacing16 mm / 14 mm

Frequently Asked Questions

What is the operating voltage range for the HS-S06 photosensor?

The HS-S06 module operates from 3.3V to 5.5V DC. This wide range makes it directly compatible with 3.3V logic microcontrollers like ESP32 and 5V systems like standard Arduino boards without requiring a level shifter.

How do I connect and read the four output signals?

Connect the module's 2.54mm pin header: 'V' to your system's positive supply (3.3V or 5V), 'G' to ground, and signals 'S1' through 'S4' to digital input pins on your microcontroller. Each output provides a digital HIGH or LOW signal based on the detected light intensity in its respective sensing zone.

What is the typical detection distance and how is it affected?

The module has a typical detection range of 10mm to 30mm. This distance is influenced by ambient light conditions and the reflectivity of the target surface. For consistent performance, calibrate the detection threshold in your application's specific environment.

Package Includes

  • 1 x HS-S06 Four-way Photosensor Module

Additional Information

Weight 0.006 kg
Dimensions 3.6 × 2.6 × 0.9 cm
