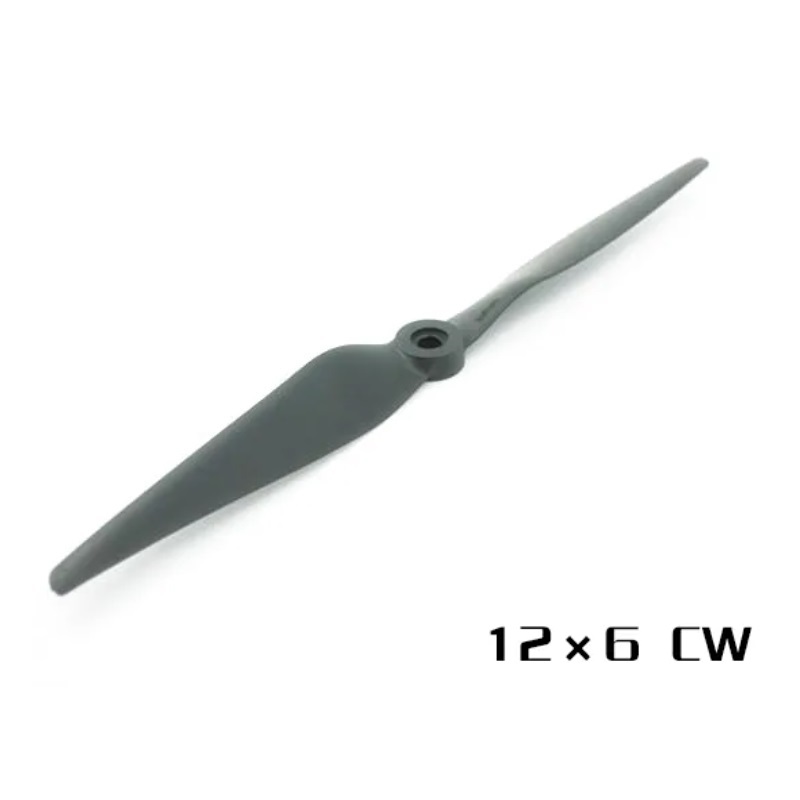

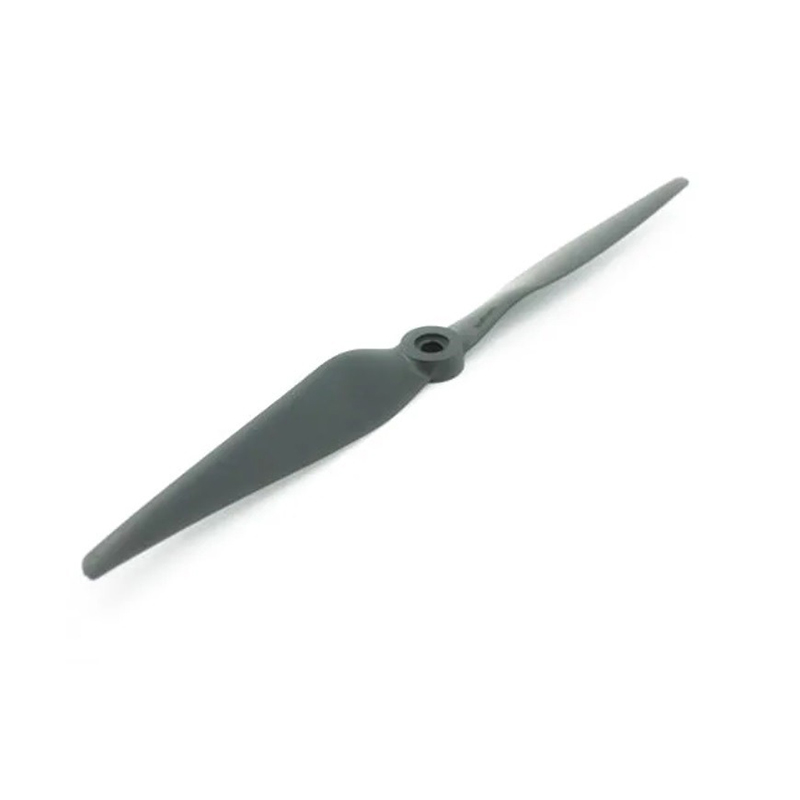

HQProp Thin Electric Pusher Prop 12x6R (2CW) Propeller - Dark Grey
HQProp Thin Electric Pusher Prop 12x6R (2CW) Propeller - Dark Grey - Image 2
SKU: DRFC-1586
📋 GST Invoice Available

HQProp Thin Electric Pusher Prop 12x6R (2CW) Propeller - Dark Grey

₹499.00 (Inclusive of all taxes)
Out of Stock

The HQProp Thin Electric Pusher Prop 12x6R is a high-performance carbon fiber propeller designed for large-scale multirotor and fixed-wing UAV applications. This 2-blade pusher configuration (CW rotation) delivers efficient thrust for long-endurance flights and is compatible with standard 9.5/8/6mm motor shafts.

Features

  • 12x6R Pusher Configuration (CW Rotation)
  • Constructed from durable, lightweight carbon fiber composite
  • Optimized thin electric profile for high efficiency and reduced noise
  • Includes adapter ringsets for 6mm, 5mm, 4mm, and 3mm motor shafts
  • 18mm hub diameter with 7.5mm thickness for secure mounting

Out of stock

Description

The HQProp 12x6R Thin Electric Pusher Prop is engineered for demanding aerial platforms requiring a balance of high thrust and efficient power consumption. Its carbon fiber construction ensures a high strength-to-weight ratio, providing durability while minimizing rotational mass for responsive motor control.

The pusher (CW) rotation direction makes this propeller ideal for tractor-pusher configurations on VTOL platforms or as the primary propulsion on fixed-wing UAVs. The advanced aerodynamic profile of the thin electric blade design reduces drag and vortex generation, contributing to longer flight times and stable cruise performance.

Key Features

  • Carbon Fiber Composite Build: Offers exceptional rigidity and fatigue resistance for consistent performance and longevity.
  • Precision-Balanced Design: Manufactured to tight tolerances to minimize vibration and ensure smooth motor operation.
  • Multi-Shaft Adapter Kit: Included ringset provides compatibility with a wide range of large-format brushless motors.
  • Optimized for Electric Flight: The thin electric airfoil is tailored for the torque characteristics of brushless motors, maximizing efficiency.
  • High-Thrust Profile: The 6-inch pitch combined with the 12-inch diameter generates substantial static and dynamic thrust for heavy-lift applications.

Applications

  • Large-scale FPV and mapping quadcopters (e.g., 12-inch+ frame class).
  • Heavy-lift multirotor platforms for agricultural or industrial payloads.
  • Fixed-wing UAVs requiring pusher-propeller configurations.
  • VTOL (Vertical Take-Off and Landing) hybrid drones.
  • Aerial photography platforms prioritizing flight efficiency and stability.

Technical Specifications

Propeller Diameter12 inches
Pitch6 inches
Rotation DirectionClockwise (CW)
Blade Count2
MaterialCarbon Fiber
Hub Diameter18 mm
Hub Thickness7.5 mm
Shaft Size Compatibility9.5 / 8 / 6 mm
Adapter Rings Included6, 5, 4, 3 mm
Weight (per prop)43 g
ColorDark Grey

Frequently Asked Questions

What is a 'pusher' propeller and when should I use it?

A pusher propeller, like this CW-rotation 12x6R, is designed to be mounted on the rear of an aircraft to push it forward, as opposed to a tractor configuration which pulls. It is commonly used on the rear motor of fixed-wing UAVs, on the rear arms of VTOL drones, or in specialized multirotor configurations where a specific torque balance is required.

Are the included adapter rings necessary for installation?

Yes, the adapter rings are crucial for ensuring a tight, concentric fit between the propeller's 18mm hub and your motor's shaft. You must select the ring that matches your motor's exact shaft diameter (6mm, 5mm, 4mm, or 3mm) to prevent vibration and potential shaft damage during operation.

Is this propeller suitable for high-RPM FPV racing drones?

No, this 12x6R propeller is not designed for high-RPM racing applications. It is a large-format, high-thrust propeller optimized for efficiency and lift on larger multirotor platforms, heavy-lift drones, and fixed-wing UAVs where torque and endurance are prioritized over extreme agility and top speed.

Package Includes

  • 2 x HQProp Thin Electric Pusher Prop 12x6R (CW) Propeller
  • 2 x Adapter Ringset (6mm, 5mm, 4mm, 3mm)

Additional Information

Weight 0.05 kg
Dimensions 6 × 30 × 4 cm
