SKU: DRFC-2017
📋 GST Invoice Available

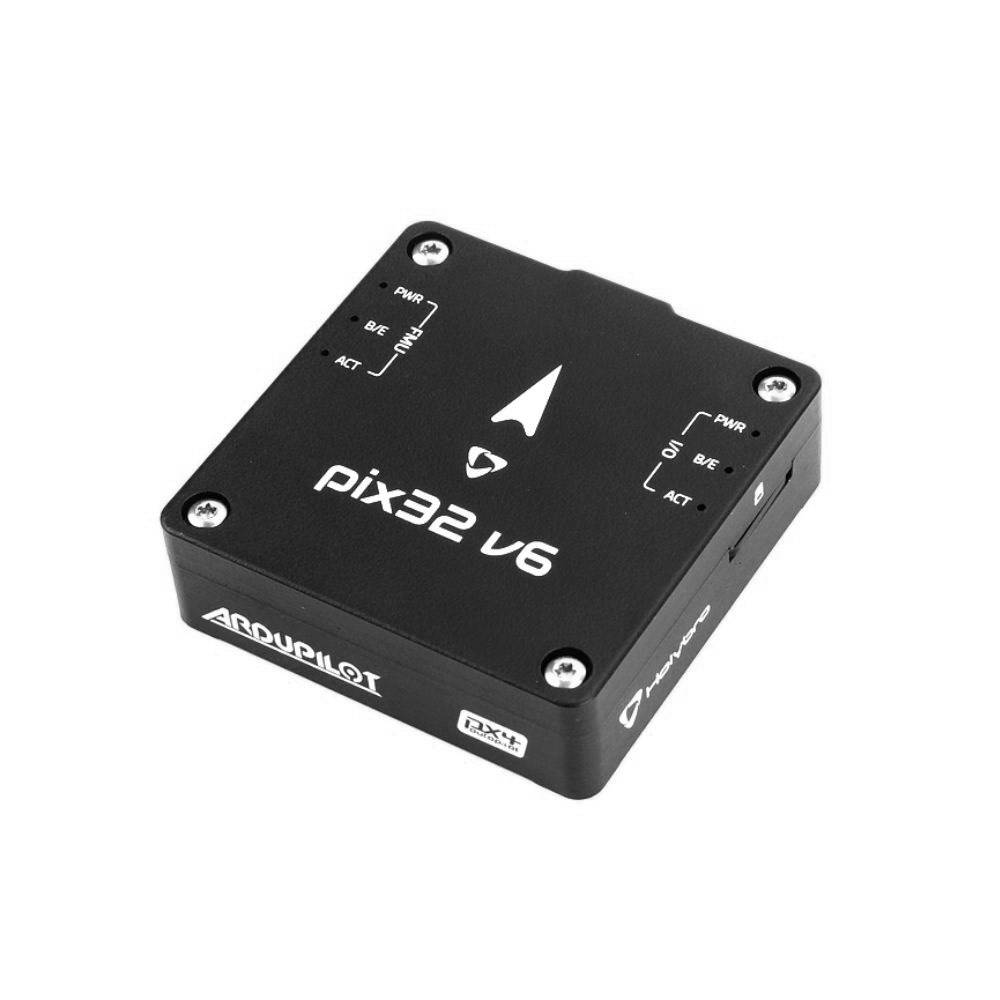

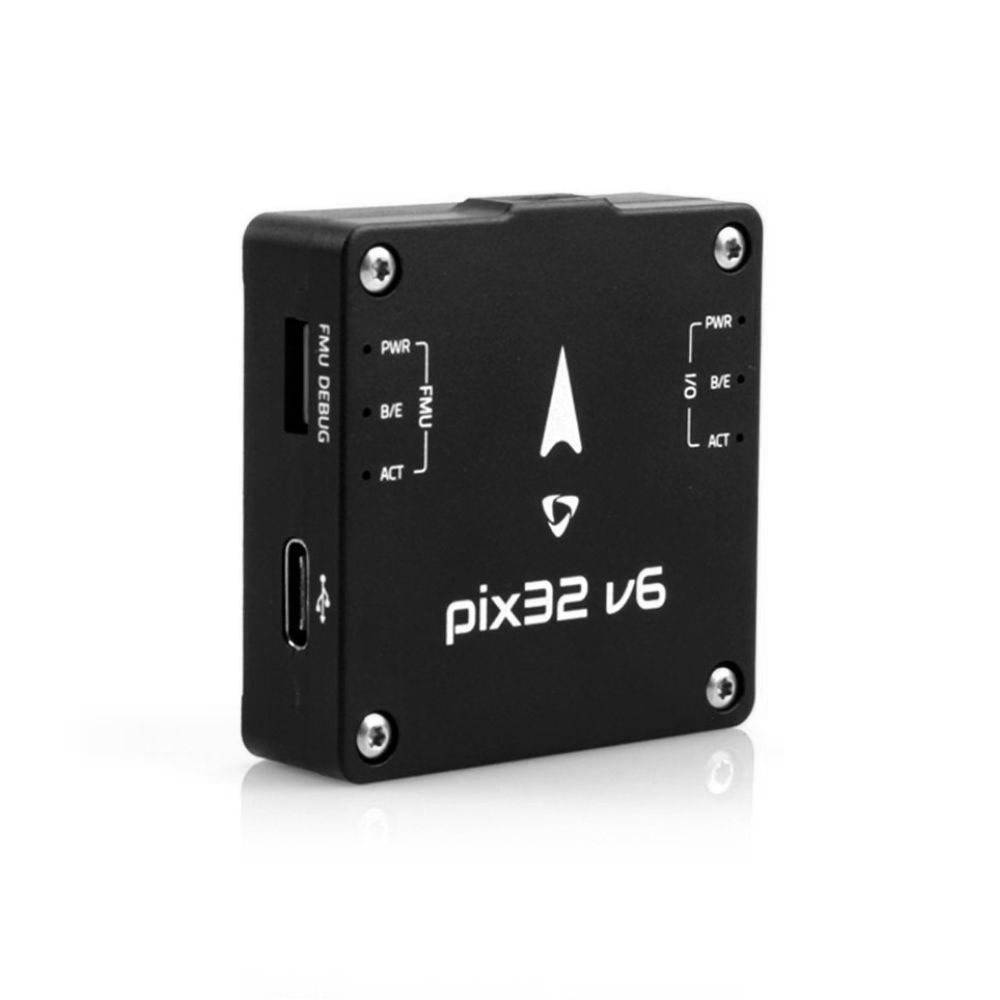

Holybro Pix32 v6 Flight Controller Module Standard Set

₹25,629.00 (Inclusive of all taxes)
Out of Stock

The Holybro Pix32 v6 Flight Controller Module is a modular, high-performance autopilot system built around the powerful STM32H743 processor. It features a separate flight controller and carrier board connected via a 100-pin connector, offering flexibility for custom power distribution and pinouts in advanced UAV and robotic applications compatible with ArduPilot and PX4.

Features

  • High-performance STM32H743 processor with Arm Cortex-M7 core running at 480 MHz, 2MB Flash, and 1MB RAM.

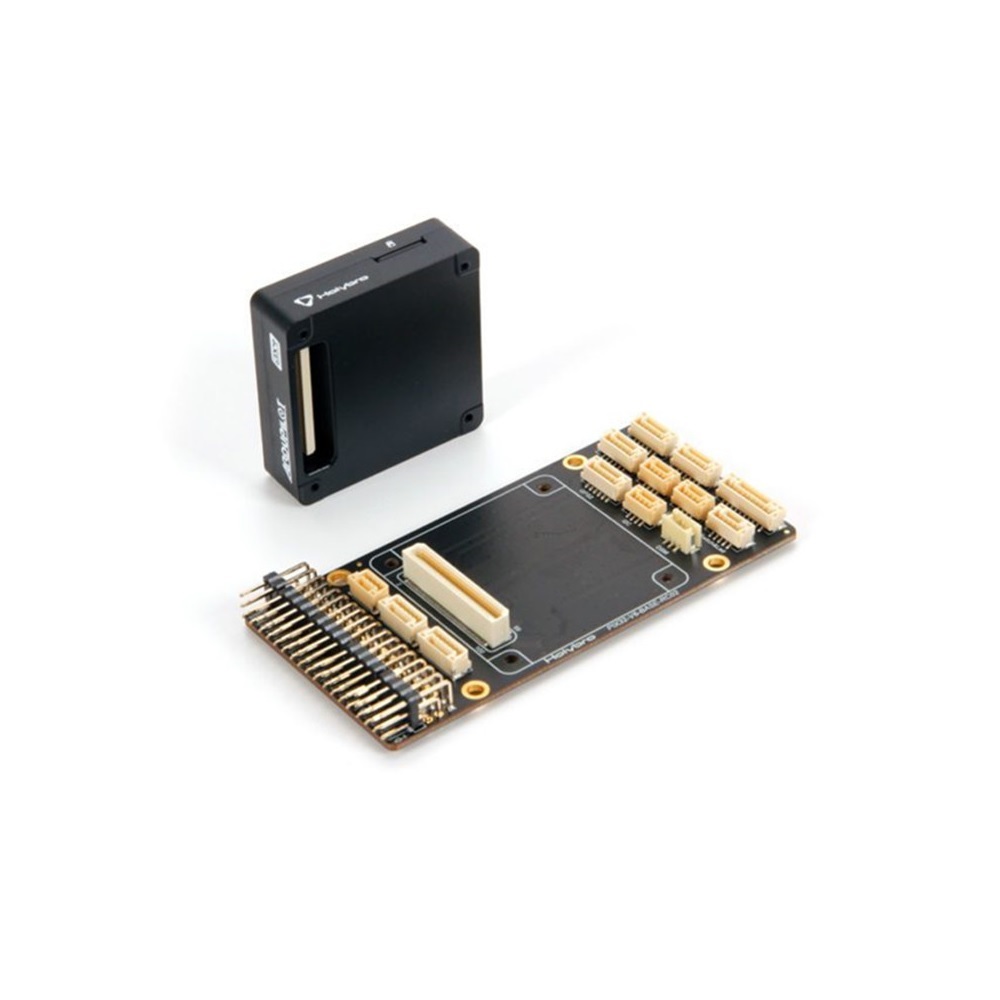

  • Modular design with separate flight controller module and standard baseboard connected via a 100-pin connector for customization.
  • Integrated vibration isolation system and temperature-controlled IMUs (BMI055) for enhanced sensor accuracy and reliability.
  • Supports wide input voltage range: 6V for main power, 4.75-5.25V via USB, and servo rail input from 0-36V.
  • Includes Bosch BMI055 accelerometer/gyro, IST8310 magnetometer, and MS5611 barometer for comprehensive flight sensing.

Out of stock

Description

The Pix32 v6 represents the latest evolution in Holybro’s modular flight controller lineup, designed as a variant of the Pixhawk 6C. Its architecture separates the core Flight Management Unit (FMU) from the carrier board, enabling developers to tailor the physical size, power distribution, and I/O connections precisely to their vehicle’s requirements. This eliminates unnecessary bulk and connectors, optimizing the system for specialized academic, commercial, and heavy-lift UAV platforms.

At its core, the STM32H743 microcontroller delivers substantial computational headroom for running complex autonomous navigation algorithms and models within the ArduPilot or PX4 ecosystems. The system incorporates advanced sensor fusion from Bosch and InvenSense, with redundancy and thermal management via onboard heating resistors ensuring the IMUs operate within their optimal temperature range, critical for consistent performance in varying environmental conditions.

Key Features

  • Modular Flight Controller: Separate FMU module (STM32H743) and IO processor (STM32F103) on a customizable carrier board connected via a 100-pin interface.
  • Enhanced Sensor Suite: Features a Bosch BMI055 6-axis IMU, IST8310 magnetometer, and MS5611 barometer with integrated vibration damping.
  • Thermal Management: Onboard heating resistors maintain optimal operating temperature for IMU sensors, improving accuracy across flight envelopes.
  • High-Speed Processing: Arm Cortex-M7 core at 480 MHz with 2MB Flash and 1MB RAM supports advanced autonomous flight algorithms.
  • Robust Power Design: Accepts 6V main input, 4.75-5.25V USB power, and a broad 0-36V servo rail input for peripheral compatibility.

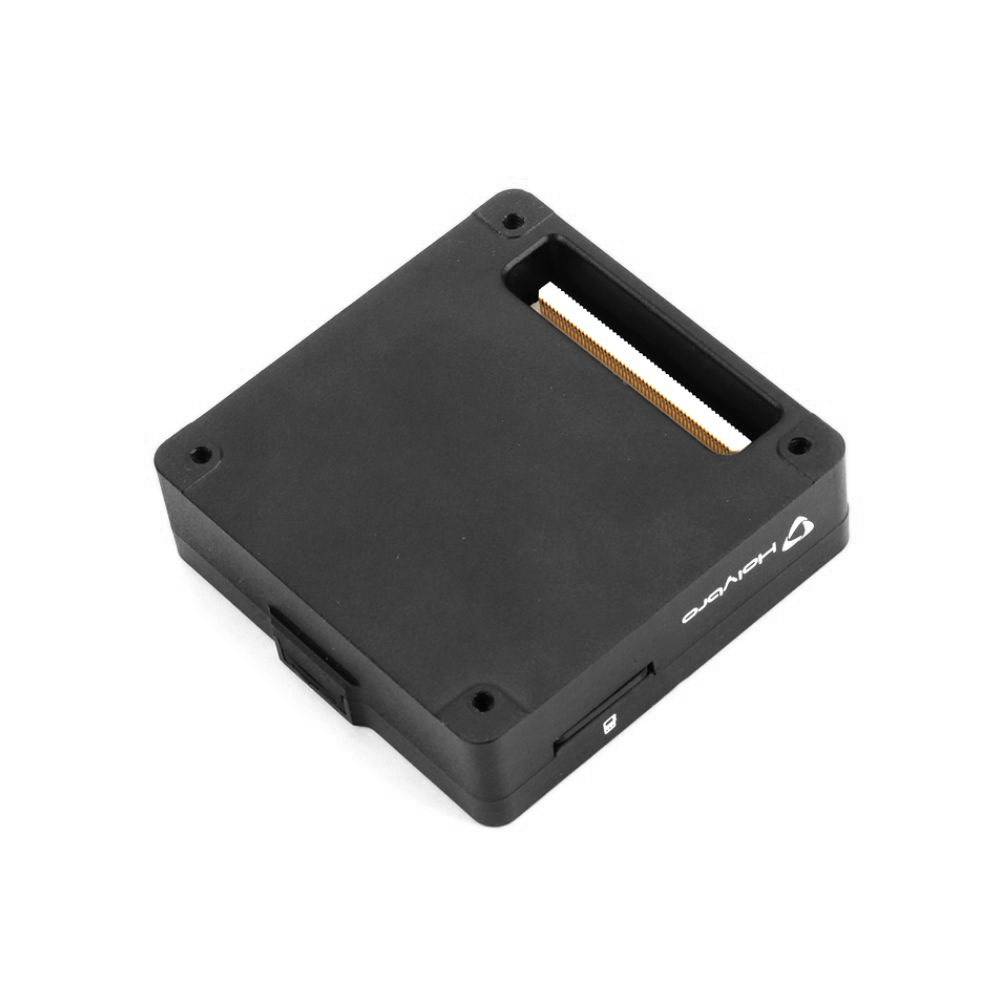

  • Durable Construction: Flight controller module housed in a machined aluminum alloy body for EMI shielding and physical protection.
  • Customization Ready: Standard baseboard serves as a reference; users can design custom carrier boards for specific power and I/O needs.

Applications

  • Custom heavy-lift and industrial UAV platforms requiring tailored power distribution and I/O mapping.
  • Academic and research robotics projects leveraging the high computational power for advanced autonomy algorithms.
  • Commercial drone applications where modularity allows for integration with specialized payloads and sensors.
  • PX4 and ArduPilot-based autonomous vehicles needing a flexible, high-performance flight control foundation.

Technical Specifications

Item TypeFlight Controller
FMU ProcessorSTM32H743
IO ProcessorSTMF103
Accelerometer/GyroscopeBMI055
MagnetometerIST8310
BarometerMS5611
Main Input Voltage6V
USB Input Voltage4.75-5.25V
Servo Rail Input0-36V
Body MaterialAluminium Alloy

Frequently Asked Questions

What is the main advantage of the Pix32 v6's modular design?

The modular design separates the core flight controller from the carrier board, connected via a 100-pin connector. This allows developers to design a custom baseboard that perfectly matches their vehicle's specific power distribution, physical size constraints, and I/O pinout requirements, eliminating unnecessary connectors and bulk.

What flight control firmware is compatible with the Holybro Pix32 v6?

The Pix32 v6 is fully compatible with the open-source ArduPilot and PX4 autopilot firmware ecosystems. Its high-performance STM32H743 processor provides the necessary computational resources for running complex navigation and control algorithms supported by these platforms.

How does the integrated vibration isolation system improve performance?

The system uses a newly designed mechanical isolation mount to filter out high-frequency vibrations from motors and propellers. This reduces noise in the IMU sensor data, leading to more accurate attitude estimation, smoother flight performance, and more reliable autonomous operation, especially on larger or vibration-prone platforms.

What is the purpose of the onboard heating resistors for the IMUs?

The heating resistors actively control the temperature of the inertial measurement units (IMUs). Maintaining a consistent, optimal operating temperature minimizes thermal drift in the gyroscope and accelerometer readings, which is critical for maintaining sensor calibration and flight stability across varying environmental conditions.

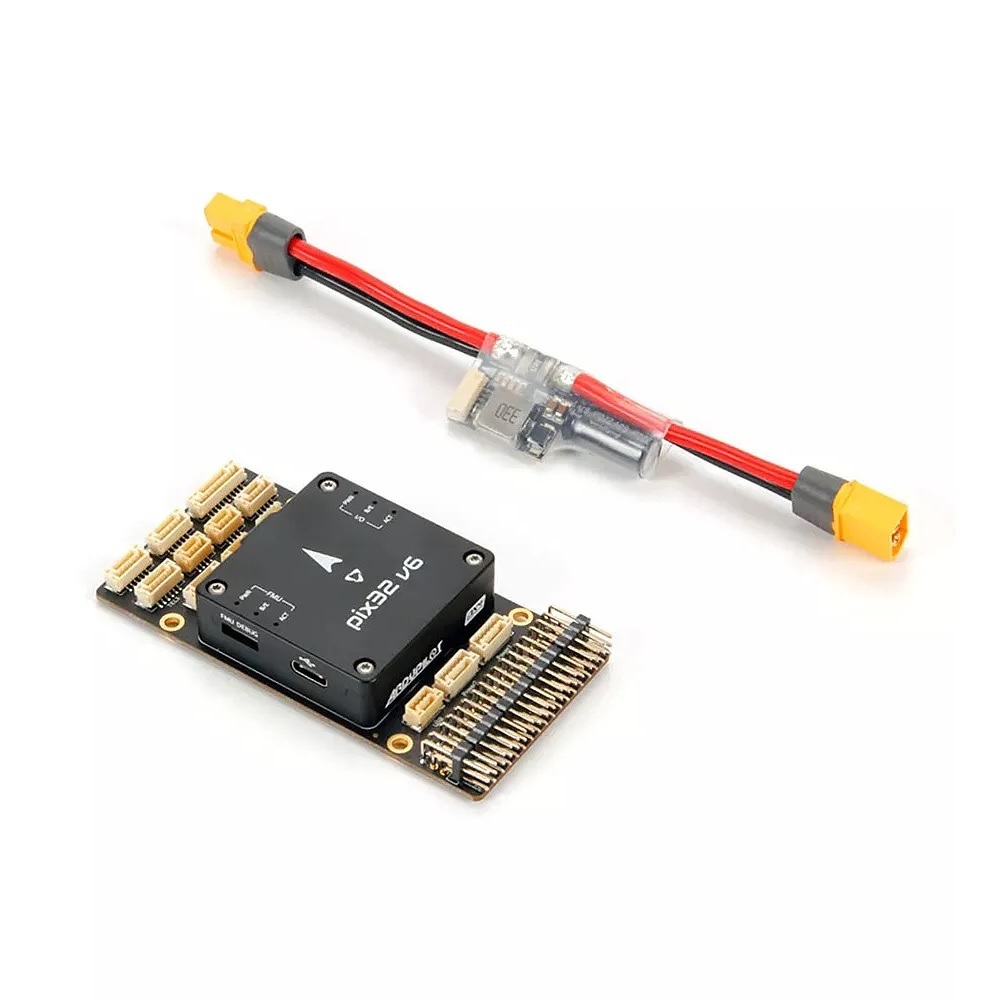

Package Includes

  • 1 x Pix32 v6 Flight Controller Module (metal body)

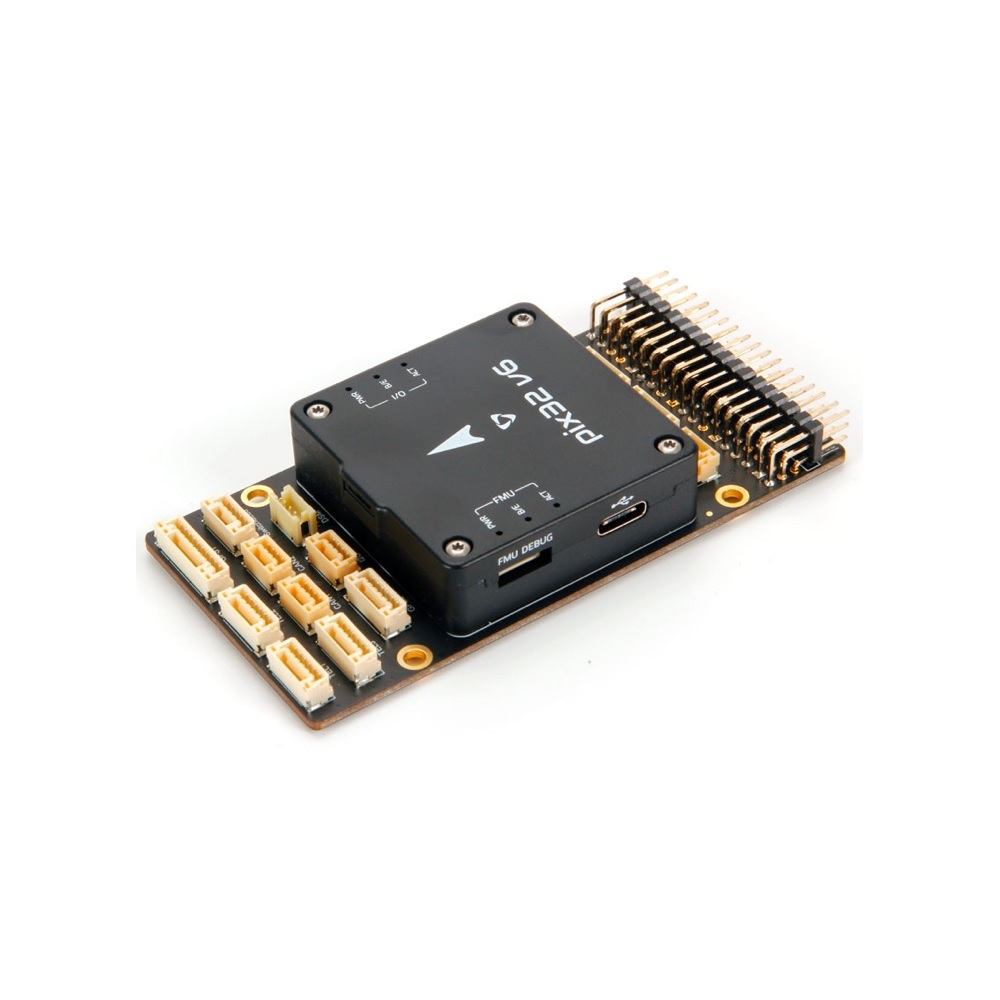

  • 1 x Standard Baseboard
  • 1 x Standard Cable Set

Additional Information

Weight 0.25 kg
Dimensions 9 × 16 × 5 cm
