Holybro Kakute H7 V2 FC & Tekko32 F4 4in1 ESC Stack
The Holybro Kakute H7 V2 & Tekko32 F4 4in1 ESC Stack is a high-performance flight control and power delivery system for advanced FPV and autonomous drones. It features an STM32H743 processor, integrated Bluetooth for wireless Betaflight tuning, and supports 4-6S LiPo batteries with 50A continuous current per motor.
Features
- STM32H743 480 MHz MCU paired with a 50A 4-6S BLHeli_32 4-in-1 ESC.
- Integrated ESP32-C3 Bluetooth for wireless Betaflight configuration via the SpeedyBee app.
- Onboard 9V VTX ON/OFF Pit Switch for DJI/CaddxFPV HD and analog video systems.
- Dual plug-and-play 4in1 ESC ports for simplified octocopter and X8 wiring.
- Features 6x UARTs, BMP280 barometer, AT7456E OSD, and 128MB flash for logging.
Out of stock

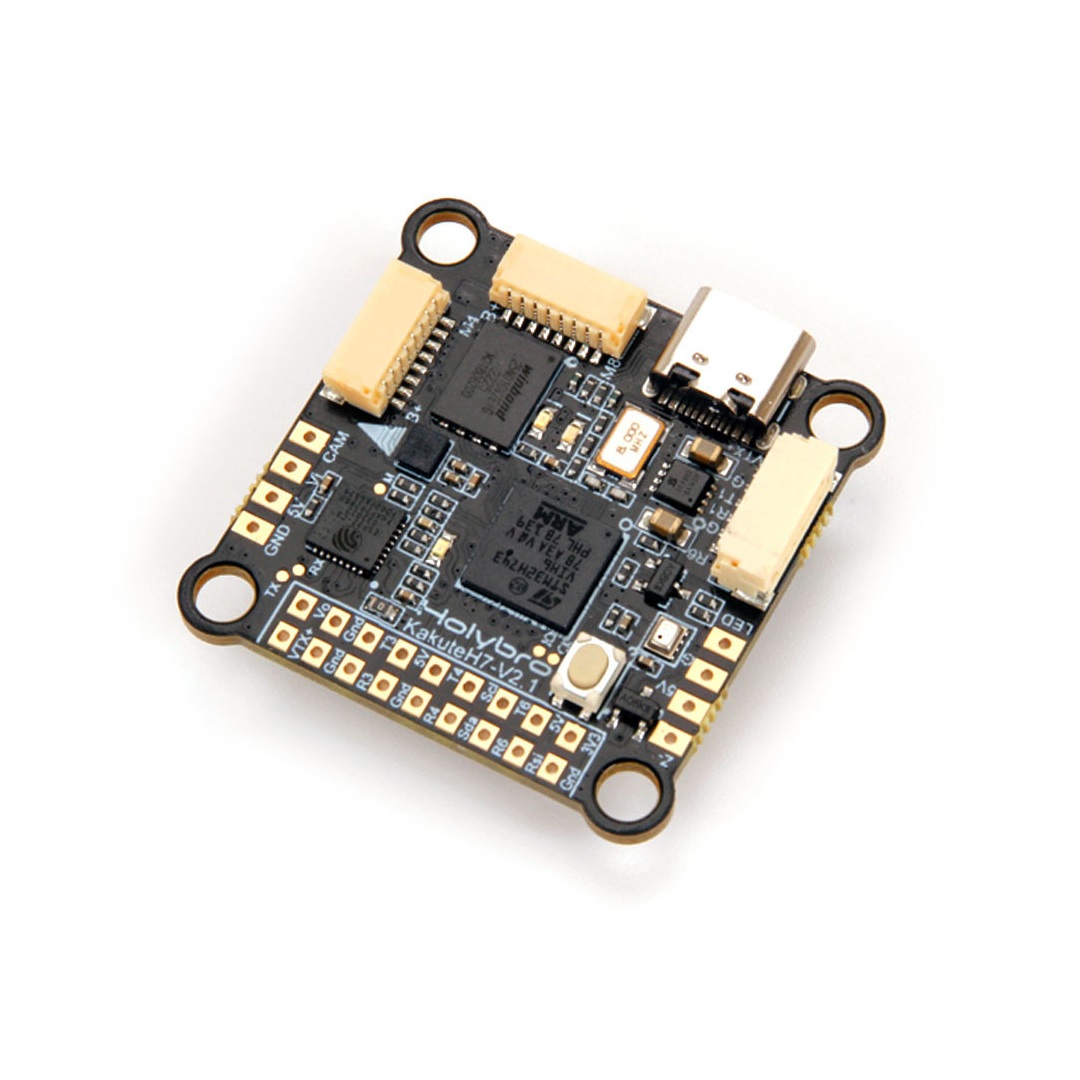

The Kakute H7 V2 Flight Controller builds upon its F7 predecessor with a more powerful STM32H743 processor and enhanced layout. It is designed for complex builds requiring extensive telemetry and peripheral support, offering six dedicated UART ports with built-in inversion. The integrated Bluetooth chip facilitates wireless PID tuning and configuration, streamlining the setup process directly from a mobile device.
Paired with the Tekko32 F4 4in1 ESC, this stack delivers robust 50A continuous current per motor, capable of handling high-power 6S setups. The ESC features a separate drive and control circuit design to minimize electrical interference, supporting high-resolution DShot protocols up to 1200. The stack’s 30.5×30.5mm M4 mounting pattern and included M3 grommets ensure secure and vibration-damped installation in standard FPV frames.
Additional Information
| Weight | 0.065 kg |
|---|---|
| Dimensions | 7 × 10 × 4 cm |
