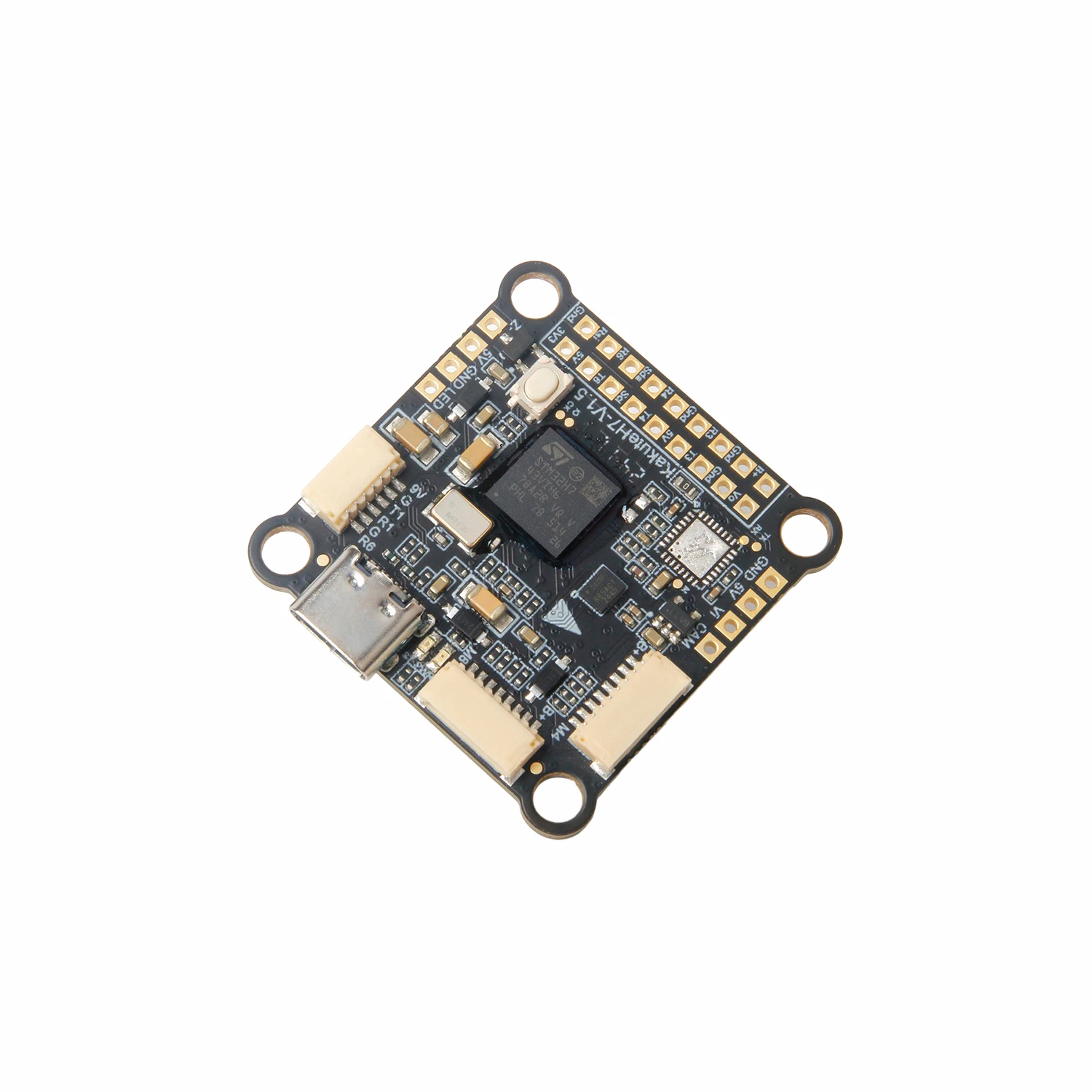

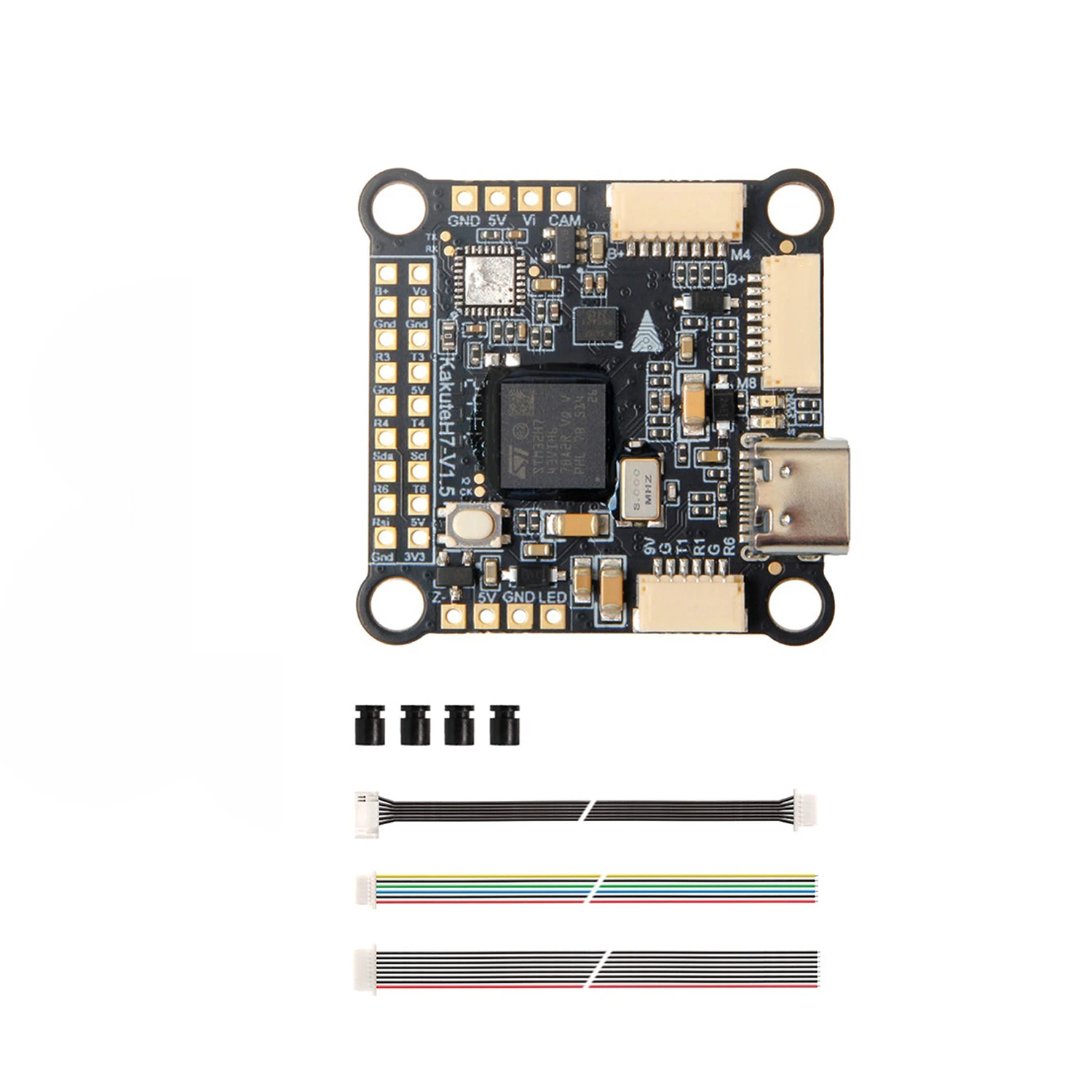

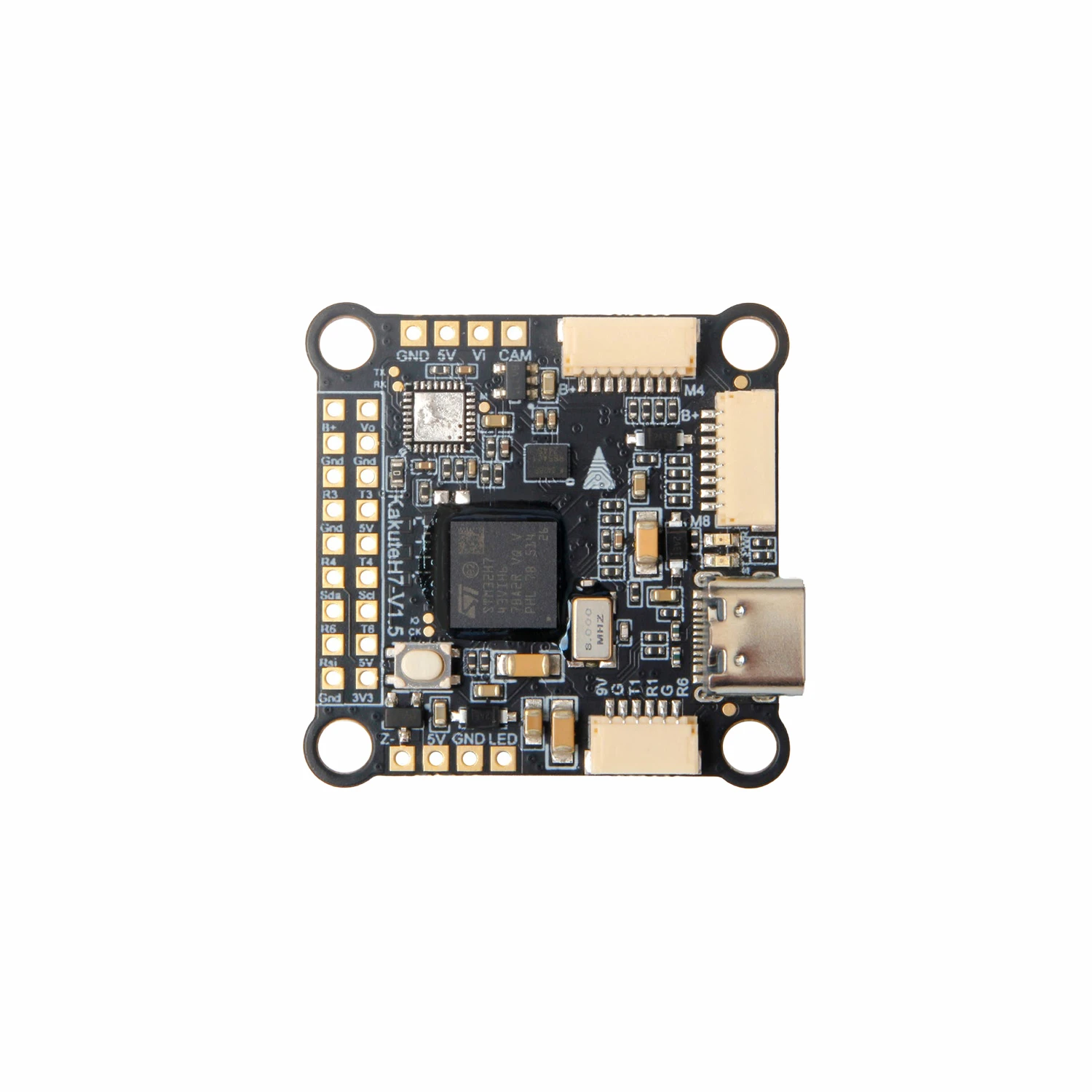

Holybro Kakute H7 V1.5 Flight Controller
The Holybro Kakute H7 V1.5 Flight Controller features a powerful STM32H743 480 MHz MCU, integrated Bluetooth for wireless Betaflight tuning via the SpeedyBee app, and dual 4-in-1 ESC ports for octocopter configurations. It supports 2S-8S LiPo batteries and includes dedicated ports for DJI/CaddxFPV HD FPV systems and analog VTXs.
Features
- STM32H743 32-bit MCU at 480 MHz for high-performance flight processing.
- Integrated ESP32-C3 Bluetooth chip for wireless Betaflight configuration via SpeedyBee app.
- Dual JST-SH 8-pin ESC ports supporting plug-and-play 4-in-1 ESCs and x8 octocopter setups.
- Dedicated 9V/3A BEC and JST-SH 6-pin port for DJI/CaddxFPV Vista & Air Unit HD VTX systems.
- Supports 2S to 8S LiPo input voltage with 6x UARTs, BMP280 barometer, and full MicroSD Blackbox logging.
Out of stock
The Holybro Kakute H7 V1.5 Flight Controller is engineered around the high-performance STM32H743 microcontroller, delivering 480 MHz of processing power for advanced flight algorithms in Betaflight and ArduPilot. Its professional underfill epoxy construction provides mechanical reinforcement against vibration, while the MPU6000 IMU ensures precise gyroscopic data for stable flight control.
Designed for modern FPV and cinematic drone builds, the board features a dedicated 9V/3A BEC and plug-and-play JST-SH port to power HD digital video transmitters like the DJI Air Unit and CaddxFPV Vista without external regulators. The integrated ESP32-C3 Bluetooth module enables wireless telemetry and tuning via the SpeedyBee mobile app, automatically disabling when the aircraft is armed to prevent RF interference.
Additional Information
| Weight | 0.1 kg |
|---|---|
| Dimensions | 7 × 7 × 4 cm |
