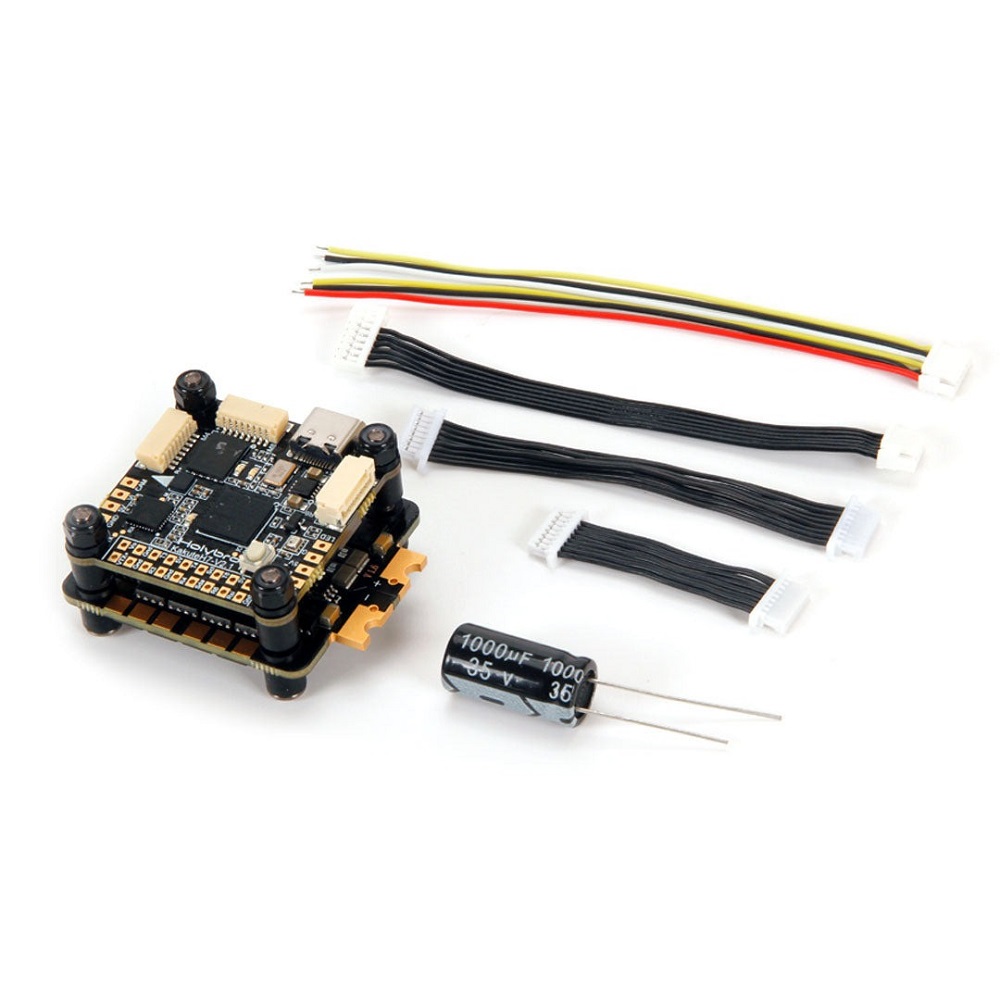

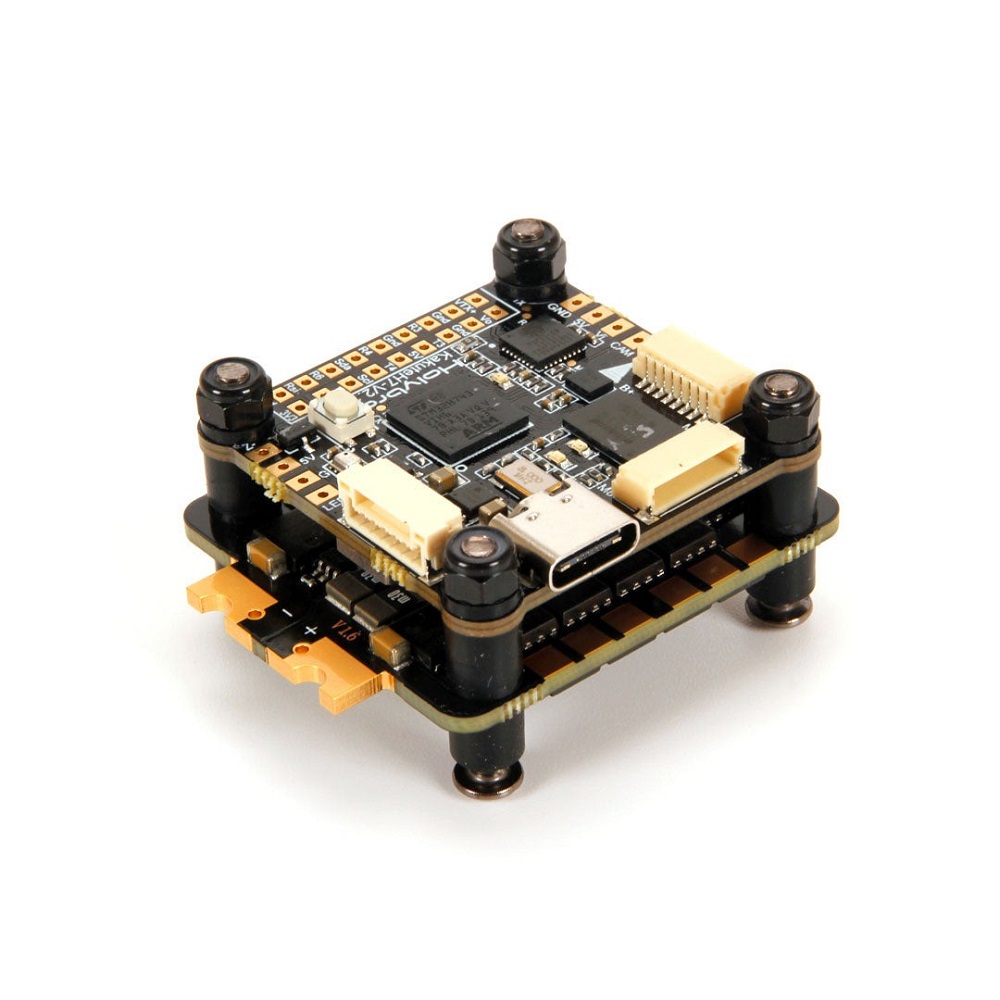

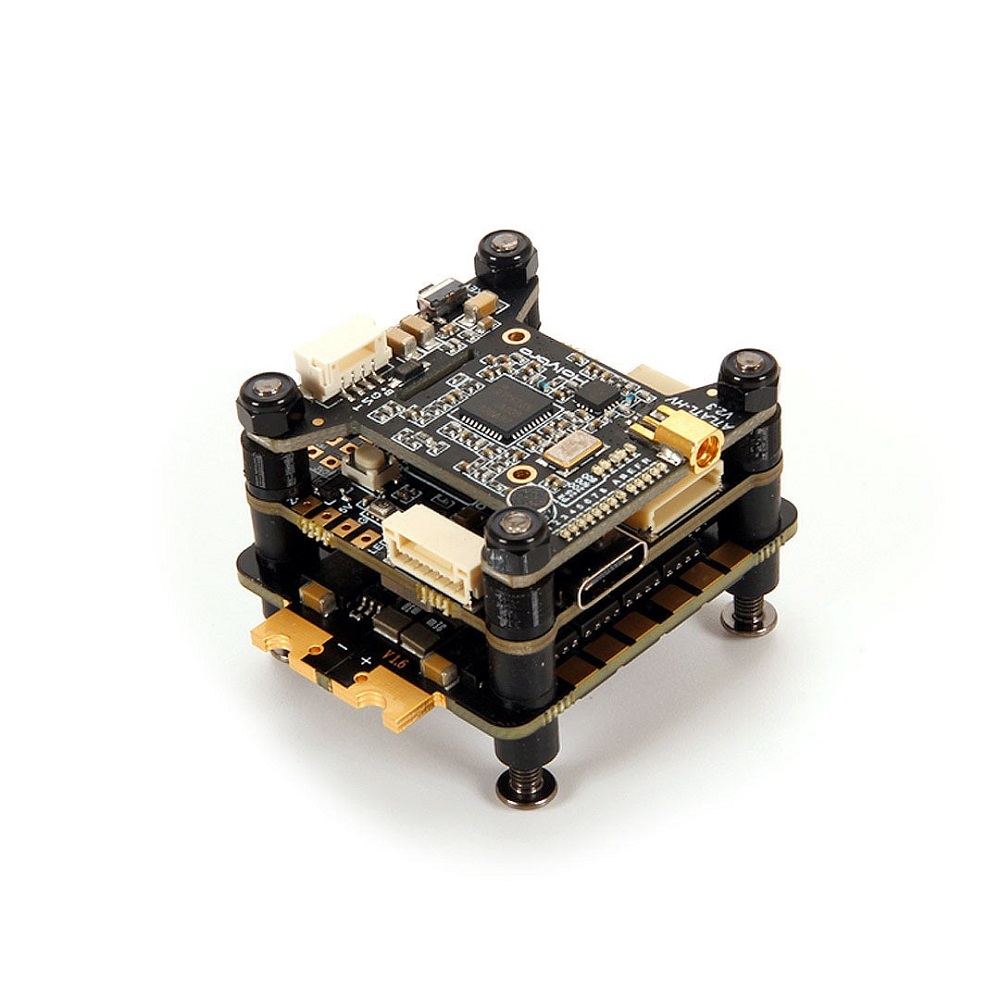

Holybro Kakute H7 V1.3 FC & Tekko32 F4 4in1 ESC Stack
The Holybro Kakute H7 V1.3 FC & Tekko32 F4 4in1 ESC Stack integrates a high-performance STM32H743 flight controller with a 50A BLHeli_32 4-in-1 ESC, designed for 4-6S FPV racing and freestyle drones. It features integrated Bluetooth for wireless Betaflight tuning via the SpeedyBee app, dual plug-and-play ESC ports for octocopter configurations, and is ready for both DJI/CaddxFPV HD and analog video systems.
Features
- High-performance STM32H743 MCU (480 MHz) paired with a 50A BLHeli_32 4-in-1 ESC.
- Integrated ESP32-C3 Bluetooth for wireless Betaflight configuration via the SpeedyBee app.
- Dual plug-and-play 4-in-1 ESC connectors support x8 octocopter configurations.
- Ready for DJI/CaddxFPV HD systems with onboard 9V BEC and dedicated plug-and-play port.
- Comprehensive I/O: 6x UARTs, full MicroSD Blackbox logging, barometer, and OSD.
Out of stock

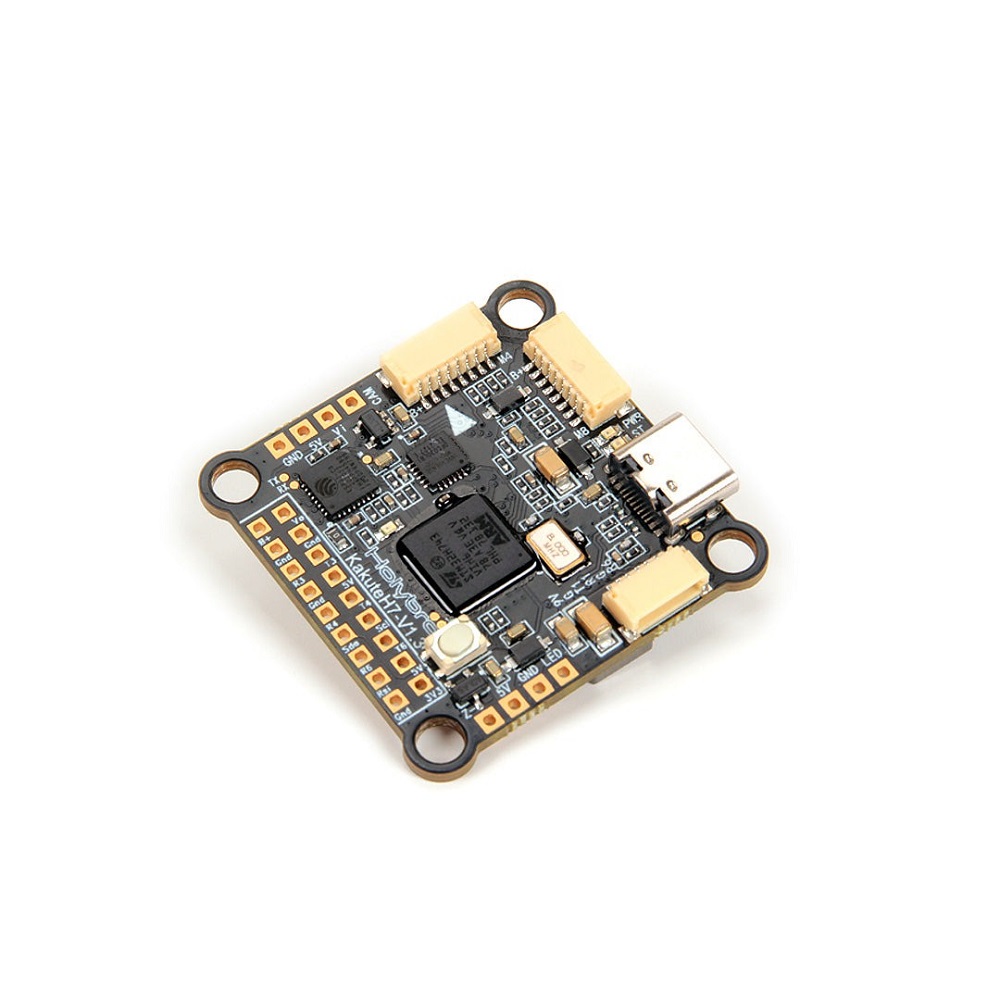

The Holybro Kakute H7 V1.3 and Tekko32 F4 stack delivers a robust, integrated flight control solution for demanding 5-inch and larger FPV drones. The flight controller’s STM32H743 processor provides ample computational headroom for complex Betaflight filters and future firmware features, while the MPU6000 IMU ensures reliable gyro data. The integrated ESP32-C3 Bluetooth module eliminates the need for external adapters, enabling direct wireless telemetry and tuning from a mobile device.
The matched Tekko32 F4 4-in-1 ESC is built on BLHeli_32 firmware, supporting DShot1200 and providing 50A continuous current per motor with robust 6S capability. The stack’s electrical design includes a separate drive and control circuit to minimize noise interference, enhancing flight stability. The layout prioritizes clean builds with dedicated, labeled ports for HD systems, peripherals, and dual ESC connections, simplifying wiring for both standard quadcopter and advanced octocopter setups.
Additional Information
| Weight | 0.07 kg |
|---|---|
| Dimensions | 7 × 10 × 4 cm |
