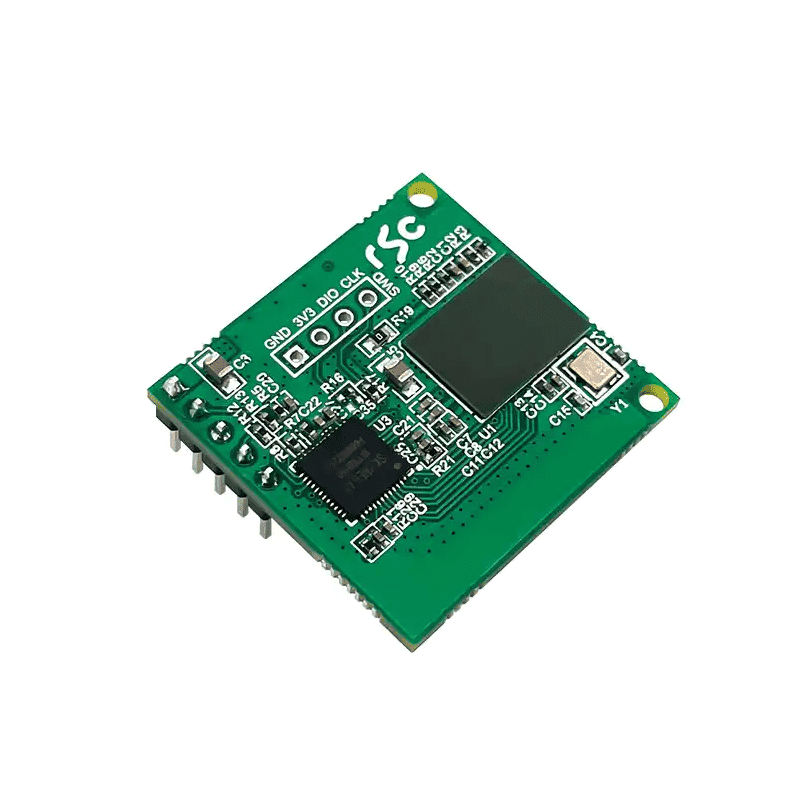

Hi-Link HLK-LD6001B 60GHz Trajectory Detection Radar Sensor
The Hi-Link HLK-LD6001B is a 60GHz millimeter-wave radar sensor designed for advanced indoor presence and trajectory detection. It provides non-intrusive, privacy-preserving monitoring of up to 10 targets, unaffected by ambient light, and is ideal for integration into smart home systems, security applications, and IoT platforms.
Features
- 60GHz millimeter-wave radar for precise, privacy-safe motion and presence detection.
- Multi-target tracking capable of monitoring up to 10 individuals simultaneously.
- Configurable detection zones for flexible area setup and false-trigger suppression.
- Low average power consumption of 0.3W for energy-efficient continuous operation.
- Robust performance unaffected by ambient light, temperature, or humidity variations.
Out of stock
The HLK-LD6001B utilizes 60GHz Frequency Modulated Continuous Wave (FMCW) radar technology to detect micro-motions and track human trajectories within a range of 0.5 to 8 meters. Its advanced signal processing algorithms enable it to distinguish between human presence (even in static states like sleeping) and environmental interference from moving curtains or plants.
Built with a domestic chipset for supply chain independence, this sensor offers a reliable, high-performance sensing solution. It outputs processed data via its communication interface, making it suitable for direct integration into automation controllers, smart home hubs, and security systems without the privacy concerns associated with optical cameras.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 10 × 7 × 2 cm |
