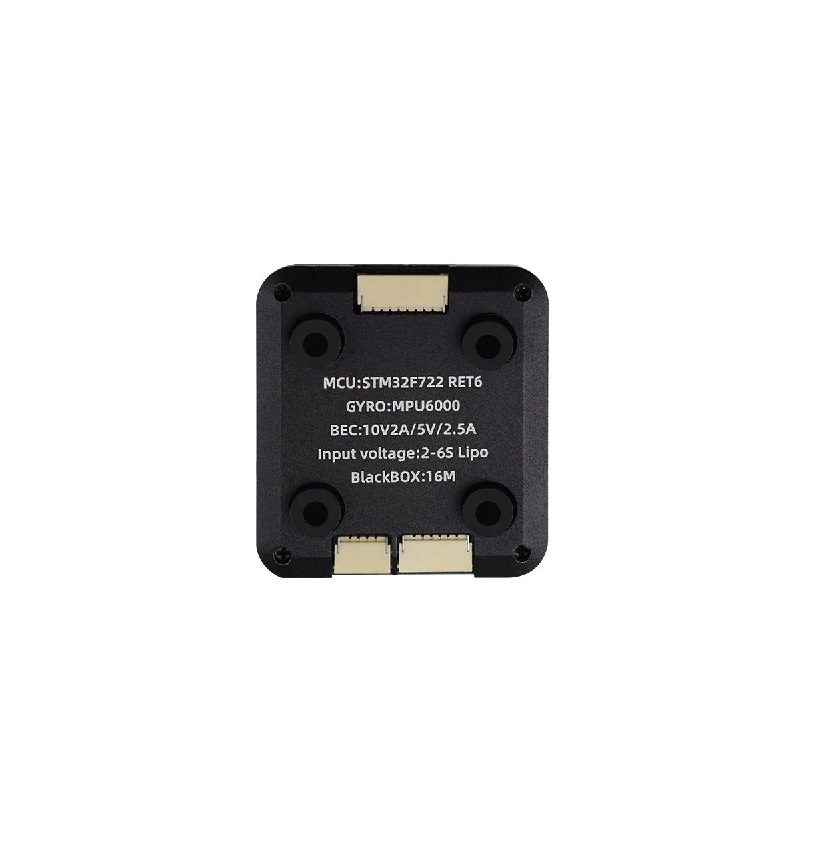

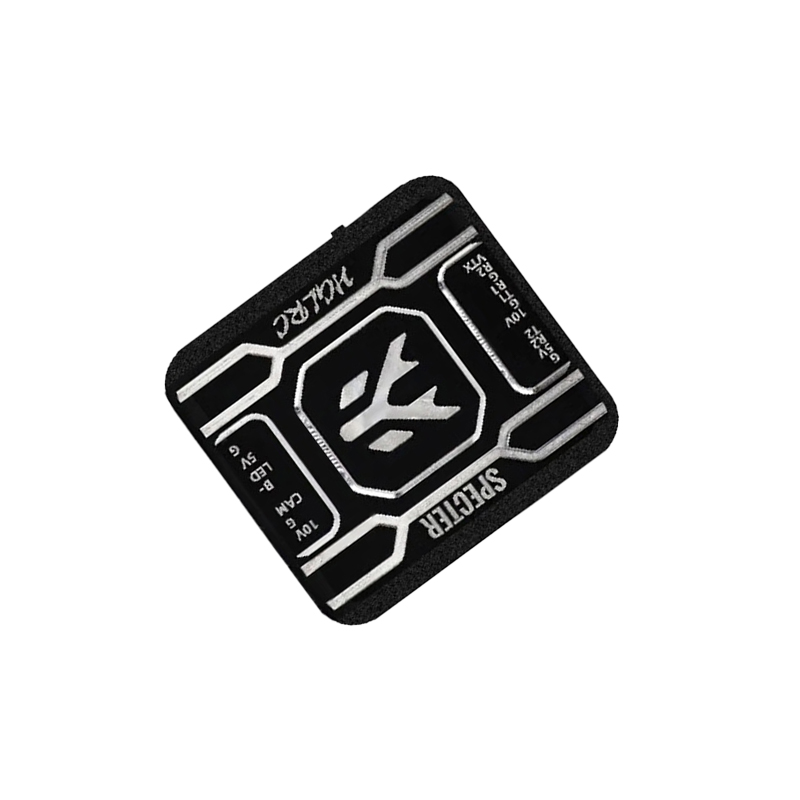

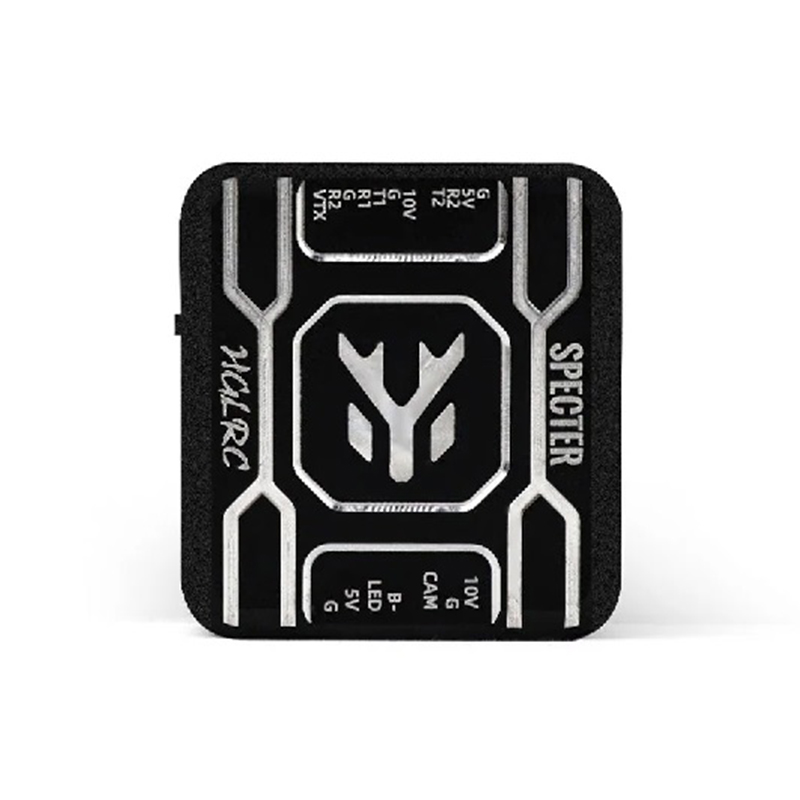

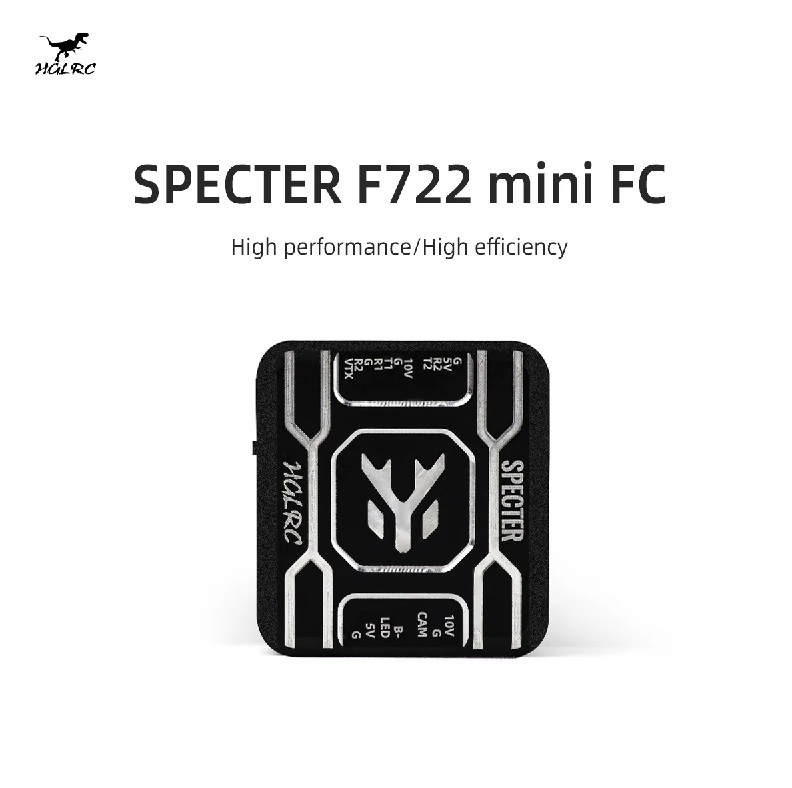

HGLRC SPECTER F722 Mini Flight Controller
The HGLRC SPECTER F722 Mini Flight Controller is a compact F7-based flight controller featuring an STM32F722 MCU and MPU6000 gyro, designed for high-performance FPV racing and freestyle drones. It offers modular connectivity, integrated Bluetooth for Betaflight configuration, and supports 4-6S LiPo inputs.

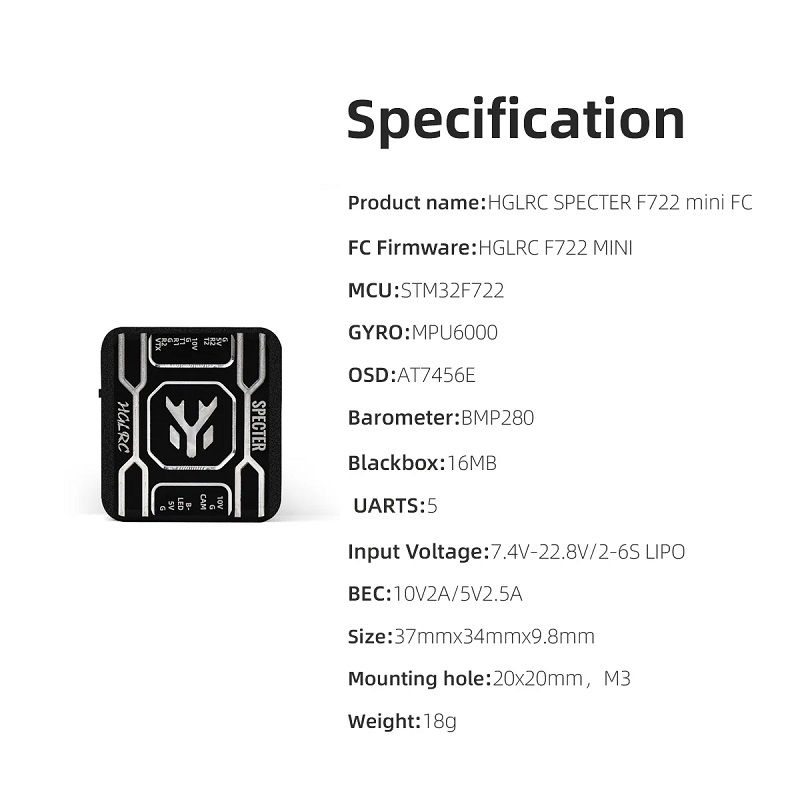

Features
- STM32F722 MCU (216 MHz) for high-speed flight control processing.
- MPU6000 gyroscope with dedicated 42688 pad for enhanced flight stability.

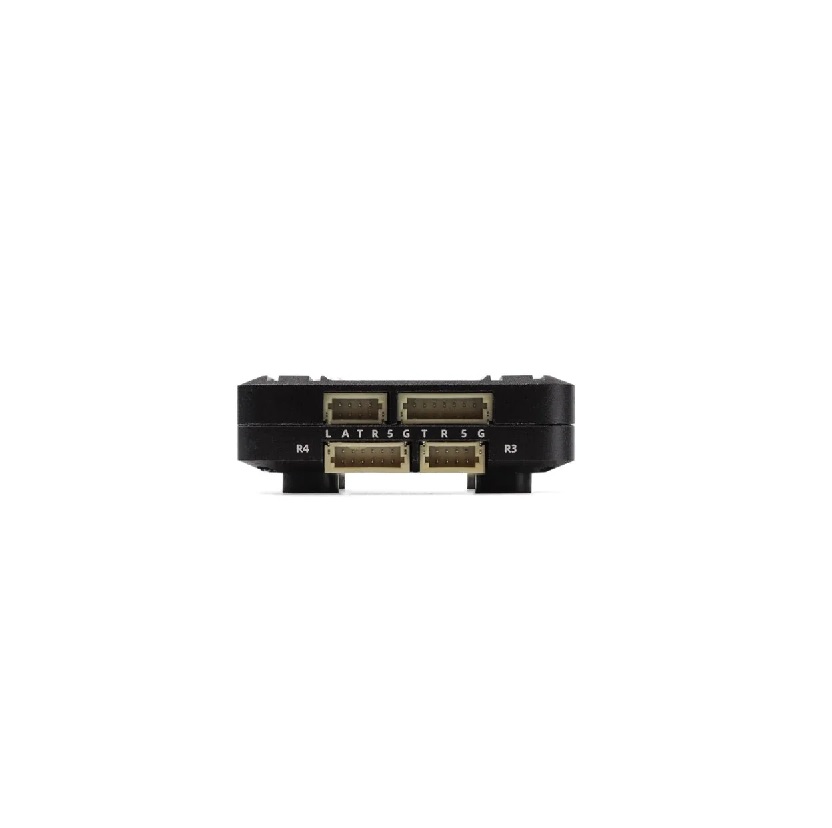

- Modular plug-and-play design with pre-wired SH1.0 cables for ESC, VTX, camera, and receiver.
- Integrated Bluetooth 5.1 for wireless Betaflight tuning via SpeedyBee app.
- 16MB black box for detailed flight data logging and analysis.
Out of stock
The HGLRC SPECTER F722 Mini Flight Controller is engineered for pilots demanding a balance of compact size and high-end performance. Its STM32F722 processor delivers the computational power needed for complex flight algorithms, while the MPU6000 gyroscope ensures precise attitude sensing. The board’s modular cable system eliminates soldering for core components, streamlining the build process for 20x20mm micro and mini quadcopters.
Advanced features include a 10V/2A BEC for powering peripherals, a configurable electronic switch to manage onboard heating, and a protective CNC-machined aluminum heatsink shell. Nano-coating on the PCB provides resistance against moisture and corrosion, enhancing durability in varied flying conditions. With five UARTs and support for Betaflight, this flight controller is a versatile foundation for competitive FPV builds.
Additional Information
| Weight | 0.065 kg |
|---|---|
| Dimensions | 10 × 10 × 5 cm |
