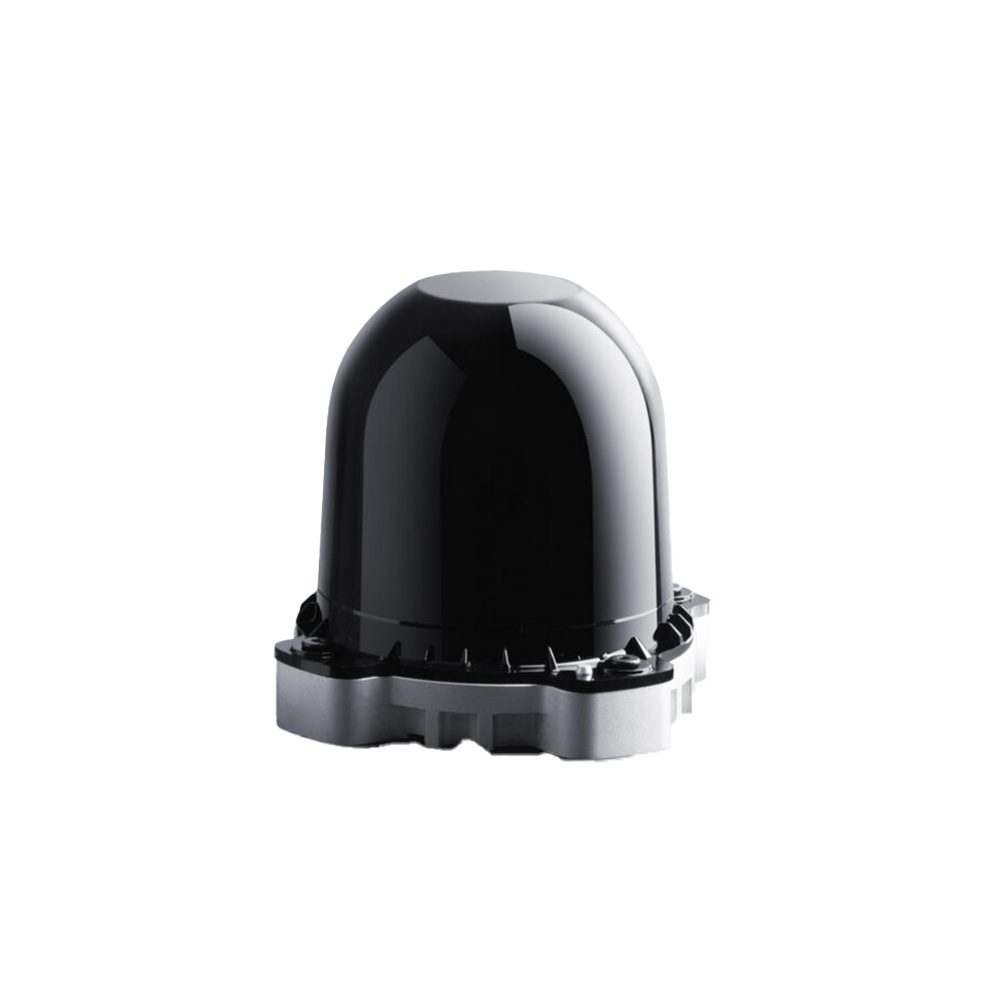

Hesai Technology JT16 Mini 360° x 40° 3D Lidar - IP6K7 & IP6K9K Rated, Built-in IMU
The Hesai Technology JT16 Mini is a compact, high-performance 3D LiDAR sensor offering a 360° x 40° field of view for robotics, autonomous systems, and industrial automation. Featuring a built-in IMU for motion compensation and robust IP6K7 & IP6K9K environmental ratings, it delivers precise spatial perception with a 30m range at 10% reflectivity and up to 100m maximum range.
Features
- Ultra-compact 3D LiDAR design, approximately 70% smaller than standard models for flexible integration.
- Wide 360° horizontal x 40° vertical field of view for comprehensive environmental scanning.
- 30m detection range at 10% reflectivity with a maximum range of up to 100m.
- Integrated Inertial Measurement Unit (IMU) for precise motion tracking and point cloud stabilization.
- High environmental durability with IP6K7 & IP6K9K ingress protection ratings.
Out of stock
The Hesai Technology JT16 Mini 3D LiDAR employs advanced time-of-flight (ToF) laser ranging technology to generate high-density point clouds for real-time 3D mapping and object detection. Its miniature form factor enables deployment in space-constrained mobile robotics, drones, and automated guided vehicles (AGVs) without compromising performance.
Engineered for demanding environments, the sensor’s robust housing and IP6K7 & IP6K9K ratings ensure reliable operation against dust ingress and high-pressure water jets. The integrated IMU provides direct motion data, enhancing point cloud accuracy during dynamic movement and enabling seamless fusion with other navigation sensors.
Additional Information
| Weight | 0.35 kg |
|---|---|
| Dimensions | 13 × 12 × 12 cm |
