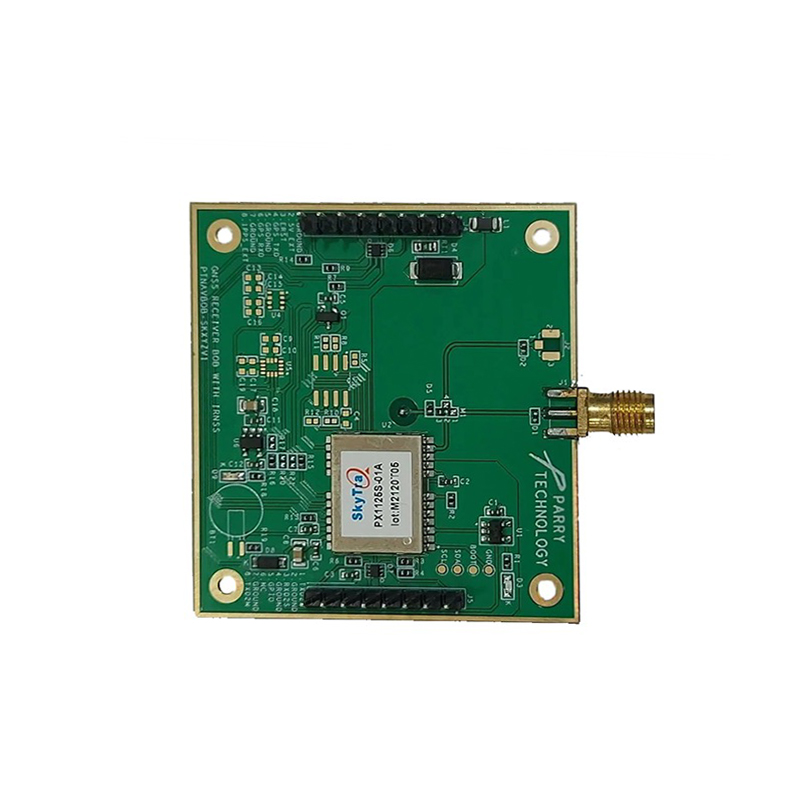

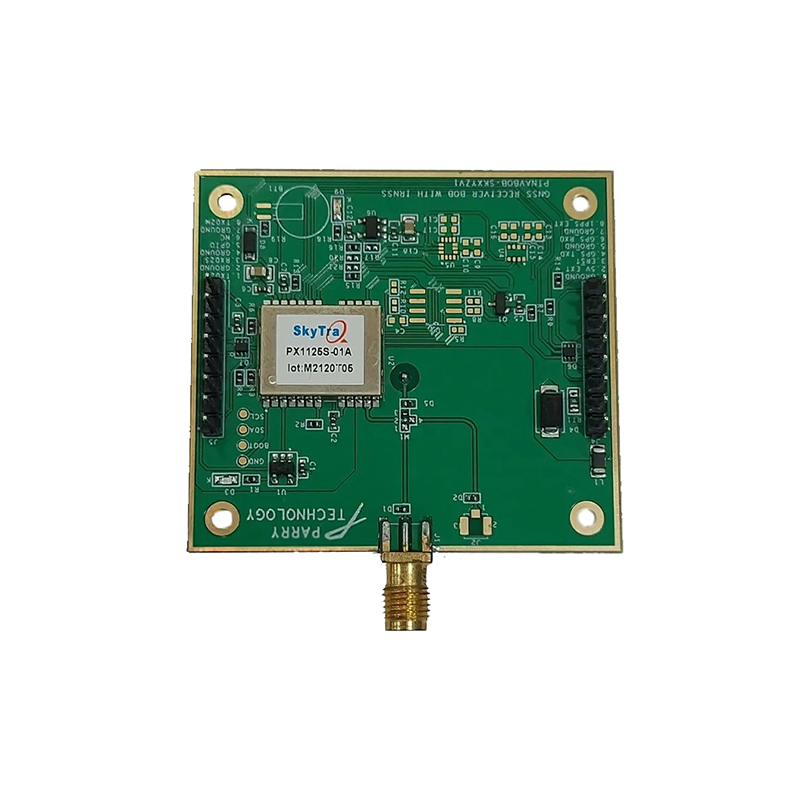

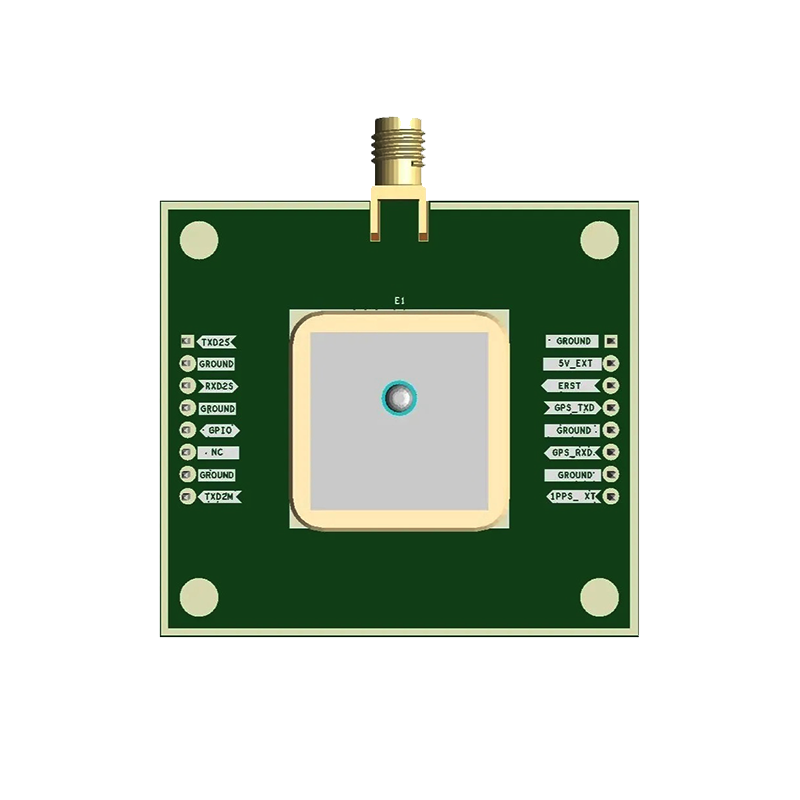

GNSS Receiver BOB with NavIC & GPS

This GNSS Receiver BOB provides robust support for multiple satellite navigation systems, including NavIC (L5 band), GPS (L1 band), GAGAN, and GLONASS. It leverages both L1 and L5 signal reception to ensure comprehensive and reliable 3D navigation, enhancing positional accuracy across diverse operational environments for UAVs.

The Dead Reckoning capability, encompassing Odometer-less Dead Reckoning (ODR) and Automotive Dead Reckoning (ADR), is supported by either internal sensors within the GNSS BOB or optional external sensor integration. This functionality allows the module to maintain accurate positioning even in signal-denied environments like urban canyons or tunnels, crucial for continuous UAV operation.

This GNSS Receiver BOB operates efficiently on an external DC input of 5V ±5%. It requires a maximum current draw of ≤120mA, resulting in a power consumption of ≤0.6W. This low power requirement makes it suitable for integration into various drone and UAV platforms where power efficiency is a critical design consideration.

Yes, this GNSS Receiver BOB features an optional Real-time Kinematic (RTK) module integration. When combined with an RTK module, it can achieve centimeter-level precision and accuracy. This capability is essential for applications demanding high positional fidelity, such as precision agriculture, aerial mapping, and autonomous surveying with UAVs.
