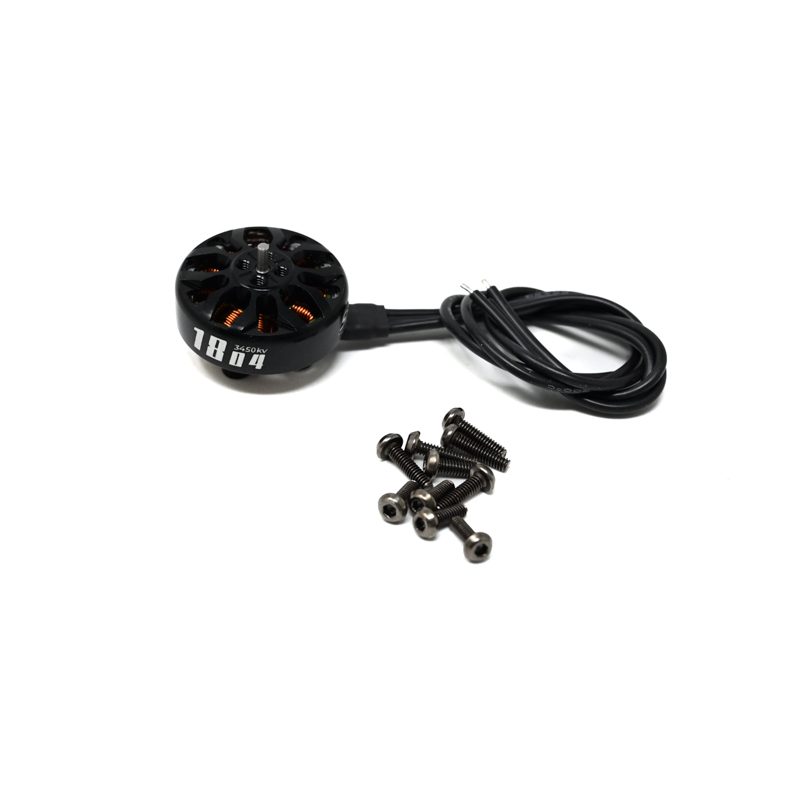

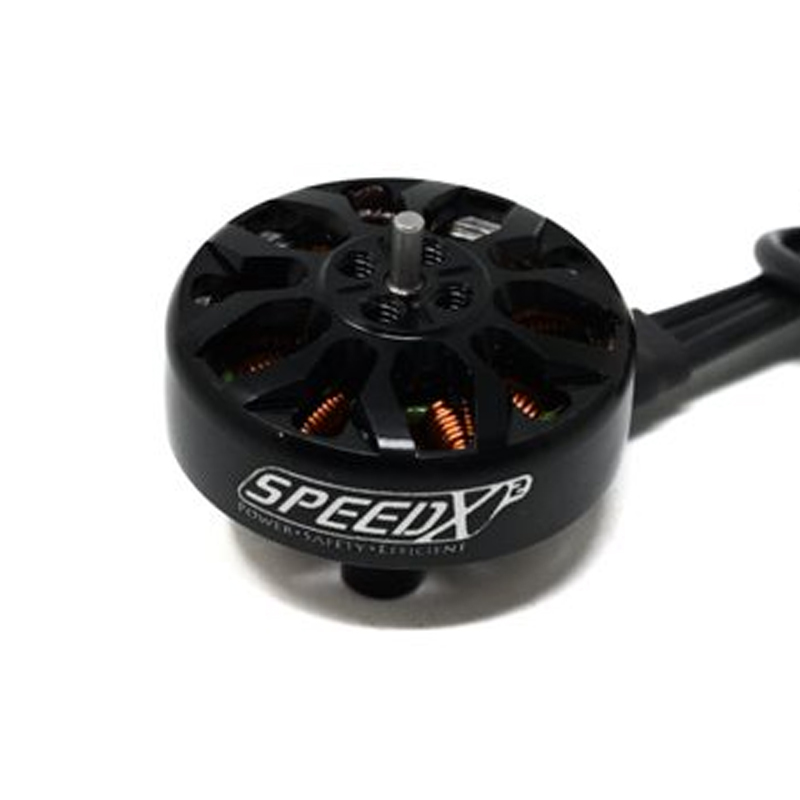

GEPRC SPEEDX2 1804 3450KV Brushless Motor - Black
The GEPRC SPEEDX2 1804 3450KV brushless motor is engineered for lightweight 3″ to 4″ FPV drones, offering high-performance power from 2S to 4S LiPo batteries. Its optimized design provides excellent thrust-to-weight ratio for freestyle and long-range applications.
Features
- 3450KV rating optimized for 2S-4S LiPo operation.
- Ultra-lightweight 13.2g design with arc-shaped, hollow-out cooling.
- Constructed with durable 7075-T6 aluminum alloy and N52H ARC magnets.
- Features a 1.5mm outer shaft diameter with a 2mm inner diameter.
- 12x12mm M2 mounting pattern for compact 3″ whoop and toothpick builds.
Out of stock
The SPEEDX2 1804 motor leverages a high-efficiency magnetic circuit with N52H ARC magnets to deliver explosive power and smooth throttle response. Its arc-shaped stator and hollow-out design significantly improve heat dissipation, allowing for sustained high-performance flights without thermal throttling.
Built around a robust 7075-T6 aluminum alloy housing, this motor maintains structural integrity under high RPM loads while minimizing weight. The optimized 1804 stator size provides an ideal balance of torque and speed for 3″ CineWhoop and 4″ long-range toothpick drones, ensuring reliable and efficient propulsion.
Additional Information
| Weight | 0.7 kg |
|---|---|
| Dimensions | 7 × 6 × 5 cm |
