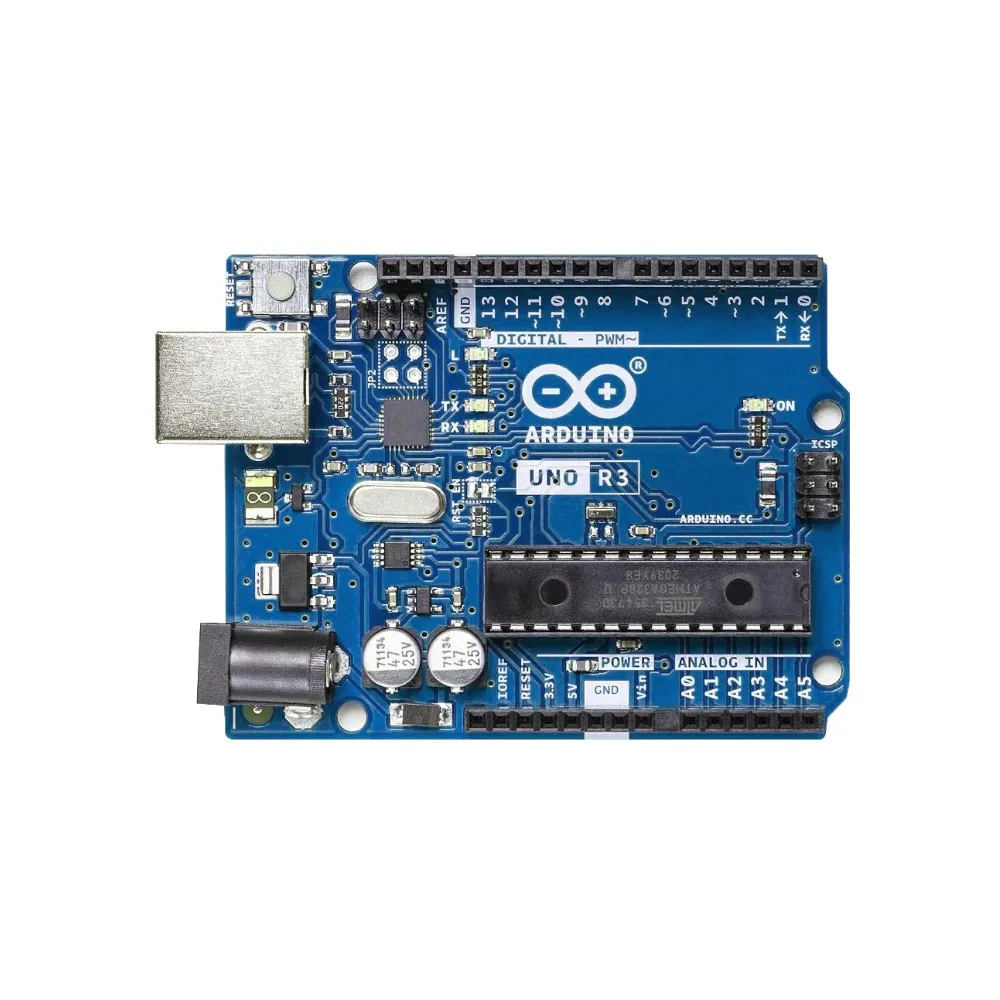

Generic UNO R3 Development Board | ATmega328P Microcontroller | Robust Prototyping Platform

The Engineering Behind UNO R3 Development Board

The UNO R3 Development Board stands as a cornerstone in rapid prototyping and embedded system education. At its core lies the robust ATmega328P microcontroller, an 8-bit AVR RISC-based processor, providing efficient execution for diverse applications. Its open-source hardware design facilitates easy integration into custom circuits, making it an indispensable tool for hobbyists, students, and professional engineers alike. The board’s architecture is designed for simplicity, allowing direct programming via the Arduino IDE and intuitive interaction with a myriad of sensors and actuators.

Constructed with high-quality FR-4 PCB material and standard through-hole components, the UNO R3 ensures reliability and ease of repair. Its robust build quality withstands repeated prototyping cycles, providing a durable learning and development platform. The clear silk-screened pin labels and standardized header layout enhance user experience, promoting quick assembly and reducing error in circuit connections, thereby accelerating the learning curve for microcontroller programming and electronics fundamentals.

ATmega328P Microcontroller Core

The heart of the UNO R3 is the ATmega328P microcontroller, featuring 32KB of Flash Memory, 2KB of SRAM, and 1KB of EEPROM. This robust 8-bit AVR processor, operating at 16MHz, provides ample processing power and memory for a wide range of embedded applications, from simple LED blinking to complex sensor data acquisition and motor control. Its architecture supports efficient C/C++ programming through the Arduino IDE, offering a powerful yet accessible entry point into embedded systems development.

Comprehensive I/O & Connectivity

The UNO R3 offers a rich set of I/O peripherals, including 14 digital I/O pins (6 capable of PWM output), 6 analog input pins, a UART for serial communication, an I2C interface, and an SPI bus. This extensive connectivity addresses common interfacing challenges by providing multiple options for connecting sensors, actuators, displays, and other modules without complex external circuitry. The standardized header layout ensures compatibility with a vast ecosystem of shields, eliminating custom wiring hassles and accelerating project build times.

Optimized for Performance & Integration

• Microcontroller: ATmega328P
• Operating Voltage: 5V DC
• Input Voltage (Recommended): 7-12V DC
• Digital I/O Pins: 14 (6 PWM outputs)
• Analog Input Pins: 6
• Flash Memory: 32 KB (ATmega328P)
• SRAM: 2 KB (ATmega328P)
• EEPROM: 1 KB (ATmega328P)

Features & Benefits

• ATmega328P Microcontroller: Provides robust processing power for diverse embedded applications and complex logic.
• 14 Digital I/O Pins: Offers extensive connectivity for controlling various devices and receiving digital inputs.
• 6 Analog Input Pins: Enables precise measurement and interaction with analog sensors for real-world data acquisition.
• Integrated USB Interface: Simplifies program uploading and serial communication with a host computer.
• Wide Shield Compatibility: Allows for easy expansion with a vast ecosystem of add-on boards, accelerating development.
• Open-Source Hardware & Software: Fosters a collaborative environment, offering extensive resources and community support.
