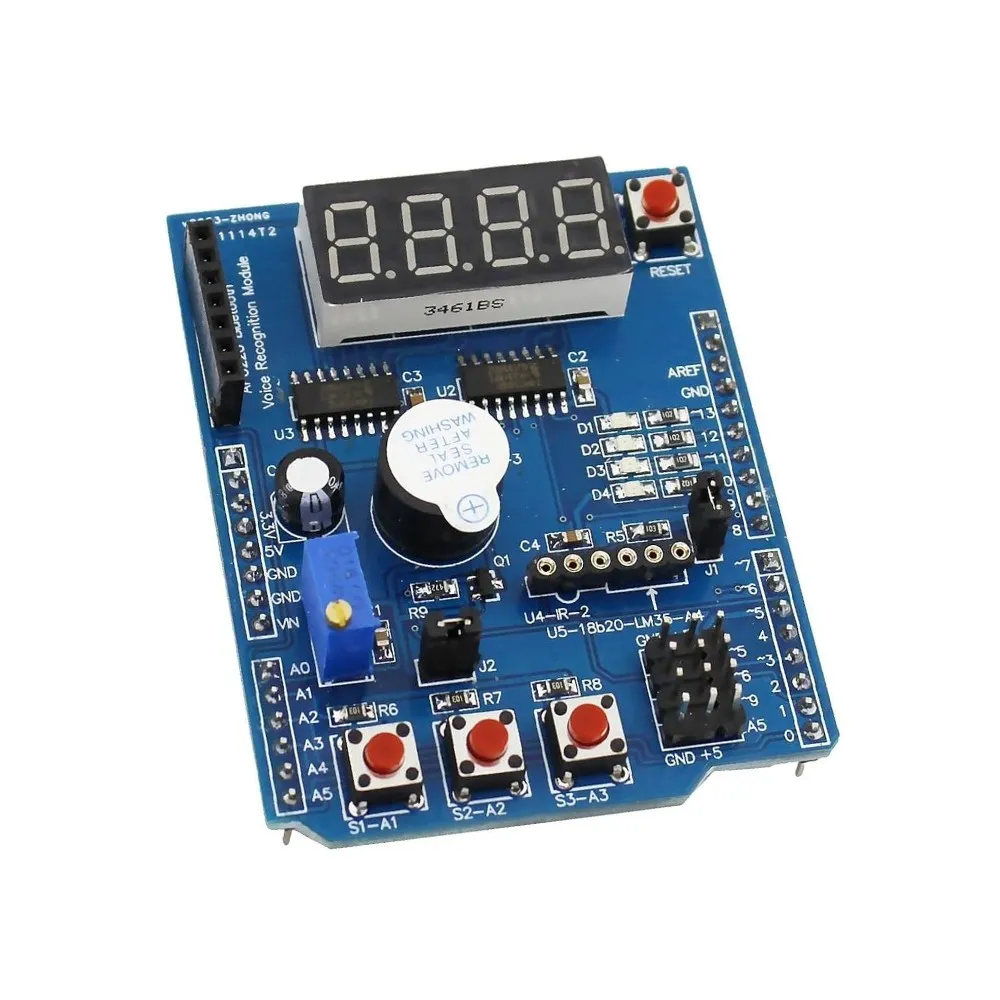

Generic Multifunction Shield for Arduino Uno & Leonardo | Integrated Peripherals | STEM Education
₹449.00₹650.00 (price_including_tax) (-31%)
Accelerate your Arduino projects with the Multifunction Shield. This single board integrates common modules, transforming your Uno or Leonardo into a comprehensive development platform, ideal for rapid prototyping and educational purposes. Engineered for reliable performance and seamless integration with the Arduino ecosystem.
This shield transforms Arduino Uno and Leonardo into a versatile learning platform, accelerating development with integrated features.
Significantly reduces setup time, allowing rapid iteration and testing of Arduino project ideas.
Perfect for grasping core Arduino programming concepts and basic electronics with ease.
Combines key components into one, minimizing external wiring and potential error points.
The Engineering Behind the Multifunction Shield
The Multifunction Shield is an ingeniously designed add-on board specifically crafted to expand the capabilities of Arduino Uno and Leonardo microcontrollers. It consolidates an array of commonly used input and output components onto a single, convenient platform. At its core, it leverages the Arduino’s digital and analog pins to interact with integrated peripherals like pushbuttons, LEDs, a 7-segment display, and a potentiometer, offering a rich environment for learning fundamental embedded systems concepts without complex wiring.
Constructed with high-quality FR-4 PCB material and robust solder joints, this shield ensures excellent electrical conductivity and mechanical stability for repeated use in educational settings and prototyping. Its modular design promotes easy attachment and detachment, safeguarding the underlying Arduino board while providing a durable and resilient prototyping foundation for both beginners and experienced makers.
Integrated Peripheral Array
The shield features a comprehensive set of on-board components, including four push buttons, four individual LEDs, a 4-digit 7-segment display with a 74HC595 shift register, a buzzer, a potentiometer, and a temperature sensor interface (LM35). This integration eliminates the need for extensive breadboarding, significantly reducing setup time and wiring errors, allowing users to focus more on coding and logic development.
Seamless Arduino Ecosystem Integration
Designed as a ‘shield,’ it perfectly stacks onto Arduino Uno and Leonardo boards, utilizing their standard pin headers for power and communication. This plug-and-play compatibility simplifies project development, ensuring that example code and libraries written for standard Arduino components can be easily adapted and tested, overcoming common integration challenges faced with discrete component wiring.
Optimized for Performance & Integration
- Compatibility: Arduino Uno, Arduino Leonardo, Funduino, Duemilanove
- Operating Voltage: 5V DC (from Arduino)
- On-board Components: 4-digit 7-segment display (74HC595 driver), 4 x LEDs, 4 x Push Buttons
- Additional Features: Buzzer, Potentiometer, Temperature Sensor (LM35) interface, IR receiver interface
- Expansion Ports: Digital I/O, Analog I/O, I2C, Serial (UART)
- Included: 1x Multifunction Shield (Arduino board not included)
Features & Benefits
- All-in-One Prototyping: Integrates multiple common components onto a single board, reducing wiring complexity.
- Educational Value: Excellent for learning Arduino programming fundamentals, digital I/O, and display control.
- Rapid Development: Allows for quick project iteration and testing without extensive breadboard setup.
- Arduino Compatibility: Designed as a shield, ensuring perfect fit and electrical compatibility with Uno and Leonardo.
- Robust Construction: Durable PCB and components for reliable, long-term use in various projects.
- Expandable: Provides exposed pin headers for further expansion with additional sensors or modules.
Pro-Grade Advantages
- Eliminates messy breadboarding for basic projects.
- Ideal for beginners to quickly start with Arduino programming.
- Provides a cost-effective way to access multiple peripherals.
- Robust build quality ensures durability in educational environments.
Technical Considerations
- Limited advanced sensor integration without external modules.
- Some Arduino pins are dedicated, reducing flexibility for custom assignments.
What Arduino boards are compatible with this Multifunction Shield?
This Multifunction Shield is primarily designed for and compatible with Arduino Uno, Arduino Leonardo, Funduino, and similar form-factor boards that share the standard Arduino R3 pinout.
Does the shield require external power or separate drivers?
No, the shield draws its operating power directly from the connected Arduino board. Most integrated components utilize standard Arduino libraries, eliminating the need for complex external drivers.
What components are integrated on the Multifunction Shield?
The shield includes a 4-digit 7-segment display (driven by a 74HC595 shift register), four individual LEDs, four tactile push buttons, a buzzer, a potentiometer, and interfaces for an LM35 temperature sensor and an IR receiver.
Can I use other sensors or modules with this shield?
Yes, the shield provides exposed digital I/O pins, analog pins, and I2C/UART headers, allowing for further expansion with additional sensors, modules, or custom circuits if required.
Is this shield suitable for absolute beginners in electronics?
Absolutely. Its integrated design greatly simplifies the learning curve by minimizing wiring errors and allowing beginners to focus on coding and understanding component interactions immediately.
How does the 7-segment display work?
The 4-digit 7-segment display uses a 74HC595 shift register to conserve Arduino I/O pins. You send serial data to the shift register, which then controls the segments of the display, making it efficient for displaying numbers.
| Specification | Value |
|---|---|
| Compatible Microcontrollers | Arduino Uno R3, Leonardo, Funduino |
| Onboard Display | 4-Digit 7-Segment (74HC595 Driver) |
| User Inputs | 4 x Push Buttons |
| Visual Indicators | 4 x LEDs (Discrete) |
| Audio Output | 1 x Buzzer |
| Analog Input | 1 x Potentiometer |
| Sensor Interfaces | LM35 Temperature, IR Receiver |
| Expansion Headers | Digital I/O, Analog I/O, I2C, UART |
| Board Dimensions (approx.) | 69 x 54 mm |
| Mounting Holes | 4 |
Additional information
| Weight | 0.035 kg |
|---|---|
| Dimensions | 6.86 × 5.33 × 1.5 cm |
| Brand | Generic |
| Technology | Shield |
| Main Controller | Arduino Uno/Leonardo Compatible |
| Operating Voltage | 5V DC |
| Difficulty Level | Beginner/Intermediate |
| Piece Count | 1 |
