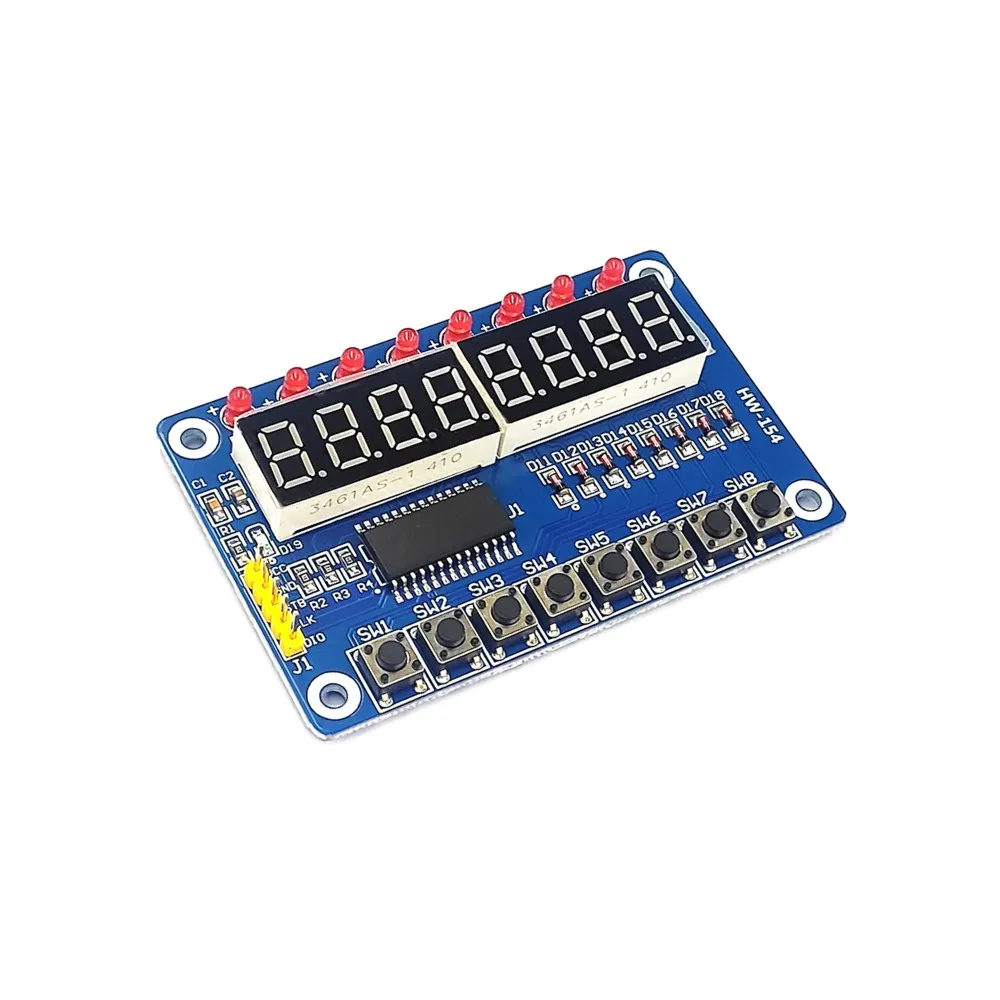

Generic TM1638 Module | Integrated 7-Segment Display | 8 Push Buttons & 8 Digital LEDs

The Engineering Behind TM1638 Module

The TM1638 module is an integrated human-machine interface (HMI) solution centered around the robust TM1638 LED driver and key scan control chip. This single-chip solution efficiently manages an 8-digit, 7-segment LED display, an array of 8 individual LEDs, and 8 tactile push buttons. Its primary function is to offload display multiplexing and key scanning tasks from the host microcontroller, simplifying wiring and reducing the computational burden on the main processor through a streamlined serial interface.

Designed for rapid prototyping and educational applications, this module offers a compact and ready-to-use solution for projects requiring numerical output, user input, and visual feedback. Its robust PCB construction ensures durability, while the standardized header pins facilitate straightforward integration with popular development platforms like Arduino, Raspberry Pi, and other microcontrollers, making it an ideal component for STEM learners and professional engineers alike.

High-Performance TM1638 Driver

At its core, the TM1638 driver IC is engineered for high-efficiency display and input management. It employs time-division multiplexing to control the 7-segment digits and individual LEDs, ensuring bright and stable illumination with minimal power consumption. Simultaneously, it performs real-time key scanning, detecting button presses and debouncing inputs internally. This integrated control architecture significantly reduces the complexity of programming and hardware interfacing for the host MCU, allowing developers to focus on application logic rather than low-level HMI management.

Streamlined Serial Communication

The TM1638 module communicates with the host microcontroller via a highly efficient 3-wire serial interface, consisting of STB (Strobe), CLK (Clock), and DIO (Data I/O) lines. This minimal pin count serial protocol is a critical advantage, as it conserves valuable GPIO pins on the microcontroller—a common constraint in embedded systems design. By abstracting away the complex direct-drive methods, this serial interface simplifies data transmission for both display updates and button status retrieval, providing a clean and reliable communication channel that enhances overall system performance and reduces wiring clutter.

Optimized for Performance & Integration

• Driver IC: TM1638
• Display Type: 8-Digit, 7-Segment LED (Common Cathode)
• Input Interface: 8 Tactile Push Buttons
• Output Indicators: 8 Individual Digital LEDs
• Communication Protocol: 3-wire Serial (STB, CLK, DIO)
• Operating Voltage: 5V DC
• Current Consumption: ~50mA (typical, all LEDs/segments active)
• Mounting Holes: 4x M3 (standard)

Features & Benefits

• Integrated HMI Solution: Combines display, buttons, and LEDs onto a single board, simplifying project wiring and reducing overall component count.
• TM1638 Controller IC: Dedicated driver handles all display multiplexing and button scanning tasks, offloading significant processing from your main microcontroller.
• 3-Wire Serial Interface: Efficiently communicates with host MCUs using minimal I/O pins, freeing up valuable GPIO resources for other critical functions.
• 8x 7-Segment Displays: Provides clear, bright numerical or basic alphanumeric output for data display, counters, or system status indications.
• 8x Tactile Push Buttons: Offers direct and responsive user input capabilities for menu navigation, control commands, or interactive application experiences.
• 8x Individual LEDs: Configurable indicator lights for immediate visual feedback, status alerts, or simple light effects within your embedded system.
