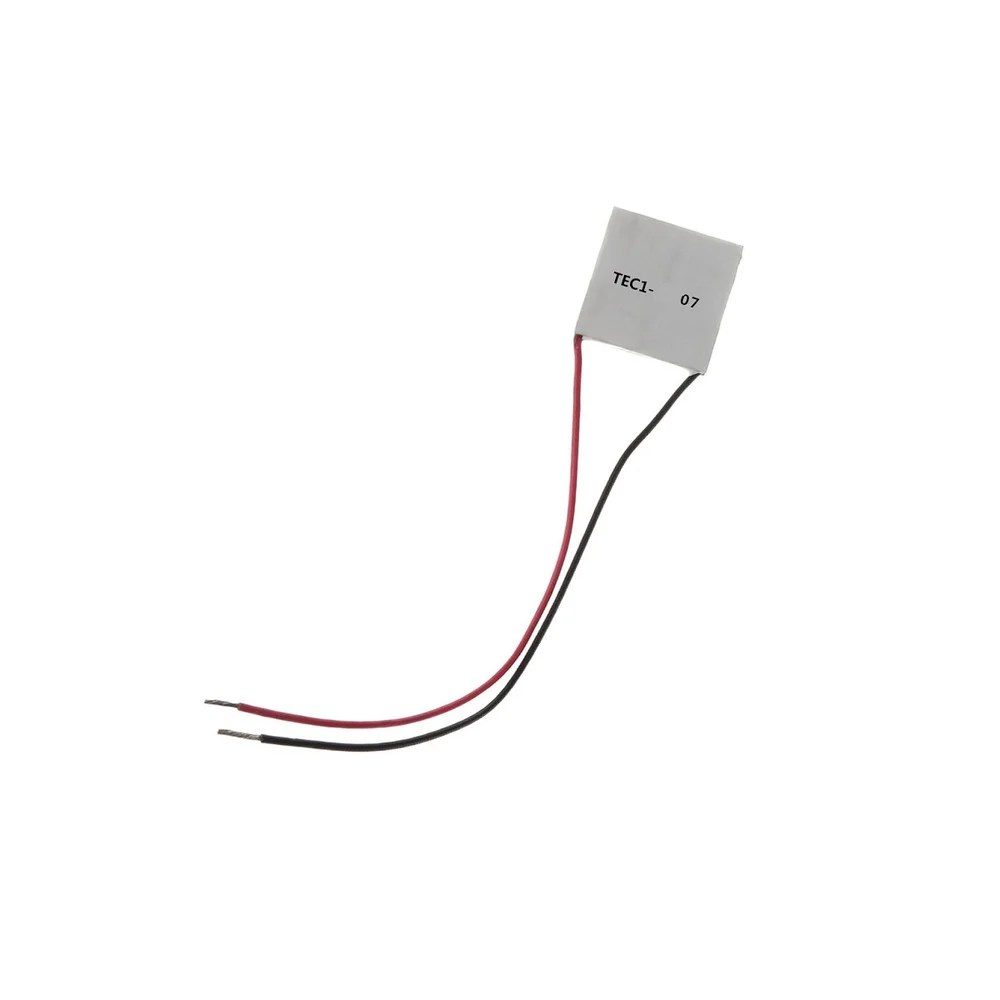

Generic TEC1-07107 30×30mm Thermoelectric Cooler Peltier Module - 8.4V 7A 84W
The TEC1-07107 is a 30×30mm thermoelectric cooler (Peltier) module designed for solid-state heating and cooling applications. Operating at a nominal 8.4V with a 7A current rating, it is suitable for integration with DC power supplies, temperature controllers, and heat sink assemblies for precise thermal management.
Features
- 30×30mm Peltier module with 127 semiconductor couples for efficient heat pumping.
- Nominal operating voltage of 8.4V with a maximum current (Imax) of 7A and maximum power of 84W.
- Solid-state, vibration-free operation with reversible polarity for switching between heating and cooling modes.
- Requires an external heatsink on the hot side for effective long-term operation and thermal stability.
- Includes 25cm power leads for convenient connection to DC power sources and driver circuits.
Out of stock
The TEC1-07107 thermoelectric cooler module utilizes the Peltier effect to create a temperature differential across its ceramic plates. When DC power is applied, heat is actively pumped from one side to the other, designating a cold side and a hot side. The module’s performance is contingent upon efficient heat dissipation from the hot side via a heatsink or active cooling system to prevent thermal equilibrium and maintain its cooling capacity.
Constructed with 127 bismuth telluride semiconductor couples, this solid-state device offers reliable, maintenance-free operation suitable for continuous use in controlled environments. Its compact 30mm x 30mm footprint allows for integration into space-constrained assemblies for precise temperature control, thermal cycling, or small-scale refrigeration.
Additional Information
| Weight | 0.028 kg |
|---|---|
| Dimensions | 7 × 5 × 1 cm |
