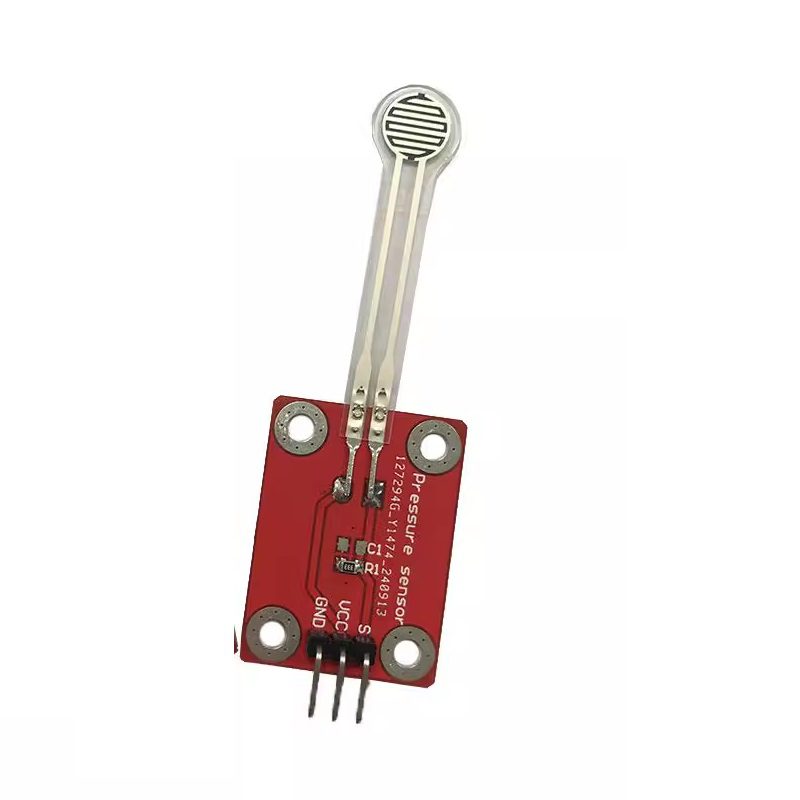

Generic Red Plate for Membrane Pressure Sensor (Green Socket Type)
This red plate is an accessory component designed for use with membrane or FSR (Force-Sensing Resistor) pressure sensor assemblies, providing a stable mounting surface and structural support. It features a 3-pin green socket header for easy electrical connection to development boards like Arduino, Raspberry Pi, or custom PCBs.
Features
- Accessory plate for membrane/FSR pressure sensor integration
- Provides stable mechanical mounting and protection
- Features a 3-pin green socket header for plug-and-play wiring
- Compact and lightweight design for embedded projects
- Enables precise force distribution for accurate pressure measurement
Out of stock
This red mounting plate serves as a critical mechanical interface for flexible membrane or FSR-based pressure sensors. It provides a rigid, flat surface to which the sensitive sensor element can be attached, ensuring even force distribution and protecting the delicate membrane from point loads or tearing. The integrated 3-pin green socket header offers a reliable and solderless connection point for the sensor’s output signal, simplifying integration into prototyping platforms and final electronic assemblies.
By separating the mechanical mounting structure from the sensing element, this accessory enhances sensor longevity and measurement repeatability. It is ideal for projects requiring precise tactile force measurement, such as human-machine interfaces, robotic grippers, or occupancy detection systems, where consistent sensor performance is paramount.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 5 × 6 × 2 cm |
