Generic QX95 Brushed Micro Quadcopter DIY Kit

₹1,889.00 (Inclusive of all taxes)
Out of Stock

This QX95 Brushed Micro Quadcopter DIY Kit provides essential components for enthusiasts to build their own small indoor drone. Featuring a robust QX95 frame, NAZE32 flight controller, 8520 coreless motors, and 55mm propellers, it offers a complete foundation for a basic FPV build.

Features

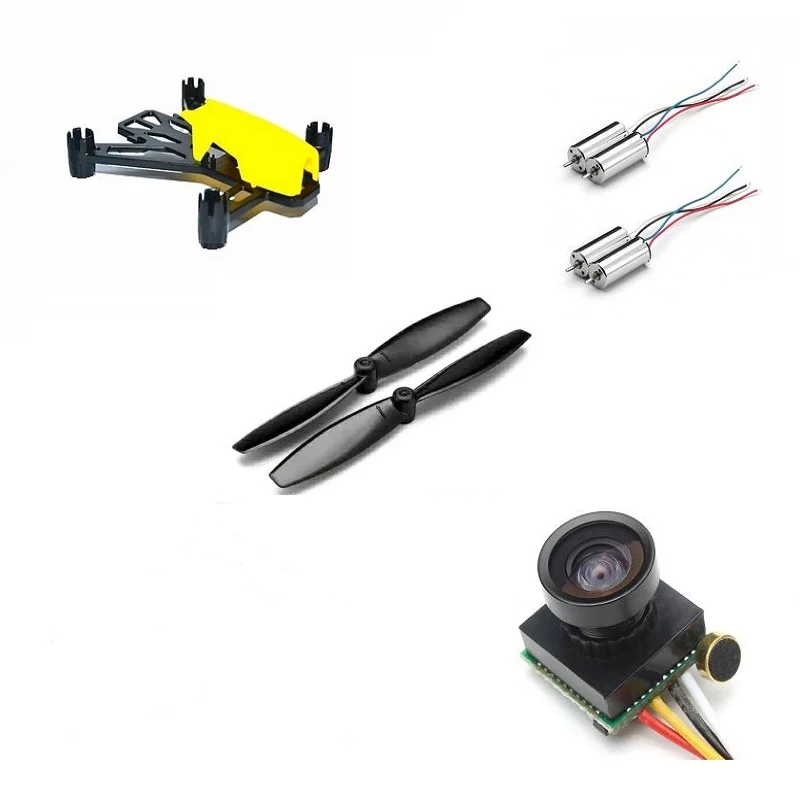

  • Complete DIY kit for QX95 brushed micro quadcopter assembly.

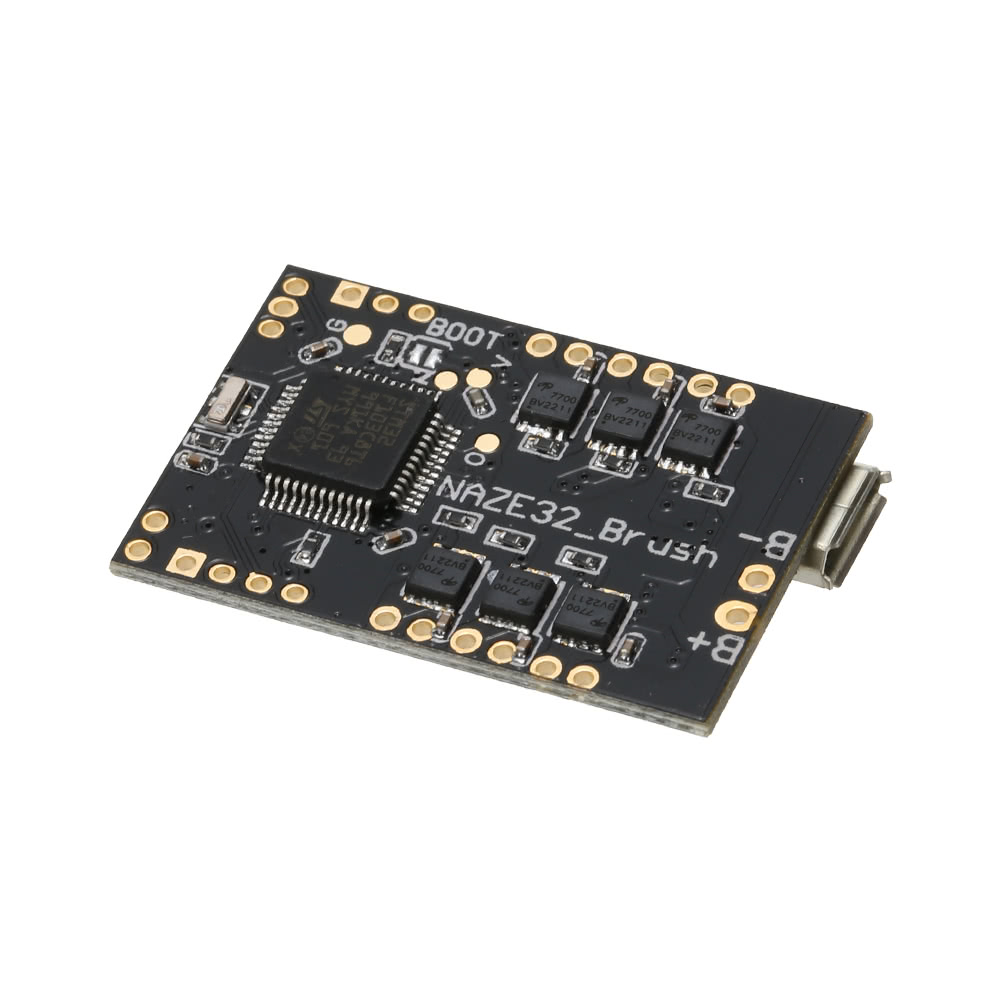

  • Includes NAZE32 flight controller for stable and responsive flight performance.

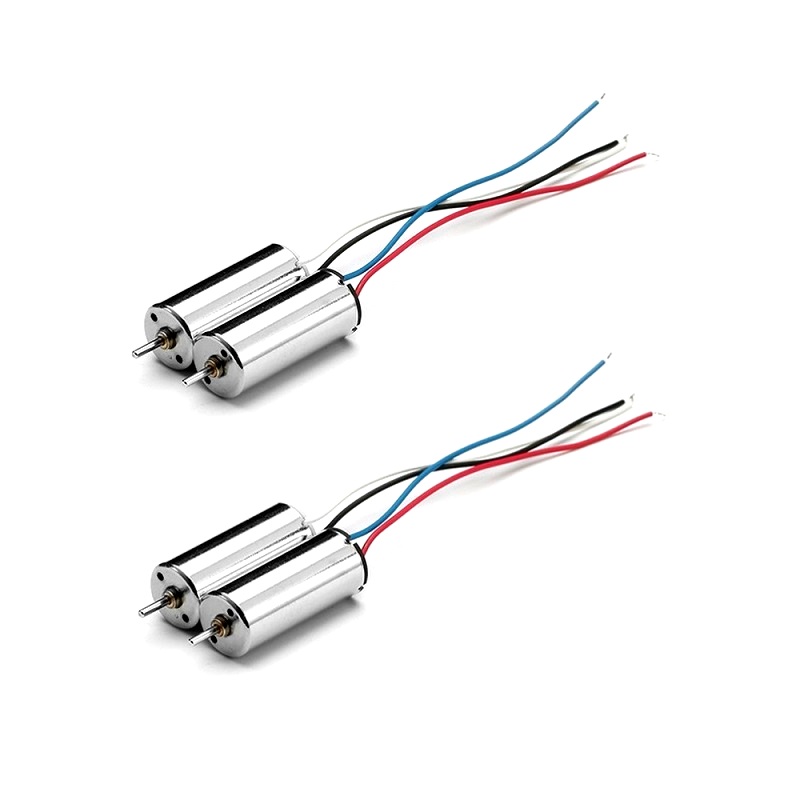

  • Equipped with efficient 8520 magnetic micro coreless motors (2CW+2CCW).
  • Comes with durable 55mm (2.2-inch) propellers for optimal thrust.
  • Ideal for beginners eager to learn basic multirotor building and piloting.

Out of stock

Description

Embark on your journey into the multirotor hobby with the Generic QX95 Brushed Micro Quadcopter DIY Kit. Designed for aspiring pilots and builders, this comprehensive package simplifies the often daunting process of sourcing compatible parts for your first micro drone. The kit provides a well-matched set of core components, enabling you to construct a small, agile quadcopter suitable for indoor flight and basic FPV exploration.

The assembly process, involving soldering and component integration, offers invaluable hands-on experience in drone construction. Each part has been selected to ensure compatibility and functionality, removing the guesswork typically associated with initial DIY builds. This kit is an excellent educational tool, allowing users to understand the fundamental architecture and interconnections of a brushed quadcopter from the ground up.

At its heart, the kit features the renowned NAZE32 flight control board, offering a reliable platform for flight stabilization and configuration. Paired with responsive 8520 coreless motors and precisely sized 55mm propellers, the QX95 frame provides a durable yet lightweight chassis for spirited indoor maneuvers and controlled flight. This combination ensures a balanced power-to-weight ratio, crucial for a micro-class drone.

Key Features

  • **Comprehensive Micro Quad Kit:** All primary components included for a complete QX95 brushed micro quadcopter build.
  • **NAZE32 Flight Controller:** Provides stable flight characteristics and supports various firmware for customizable flight modes.
  • **8520 Coreless Motors (2CW+2CCW):** Offers sufficient thrust and responsiveness for lightweight indoor micro drones.

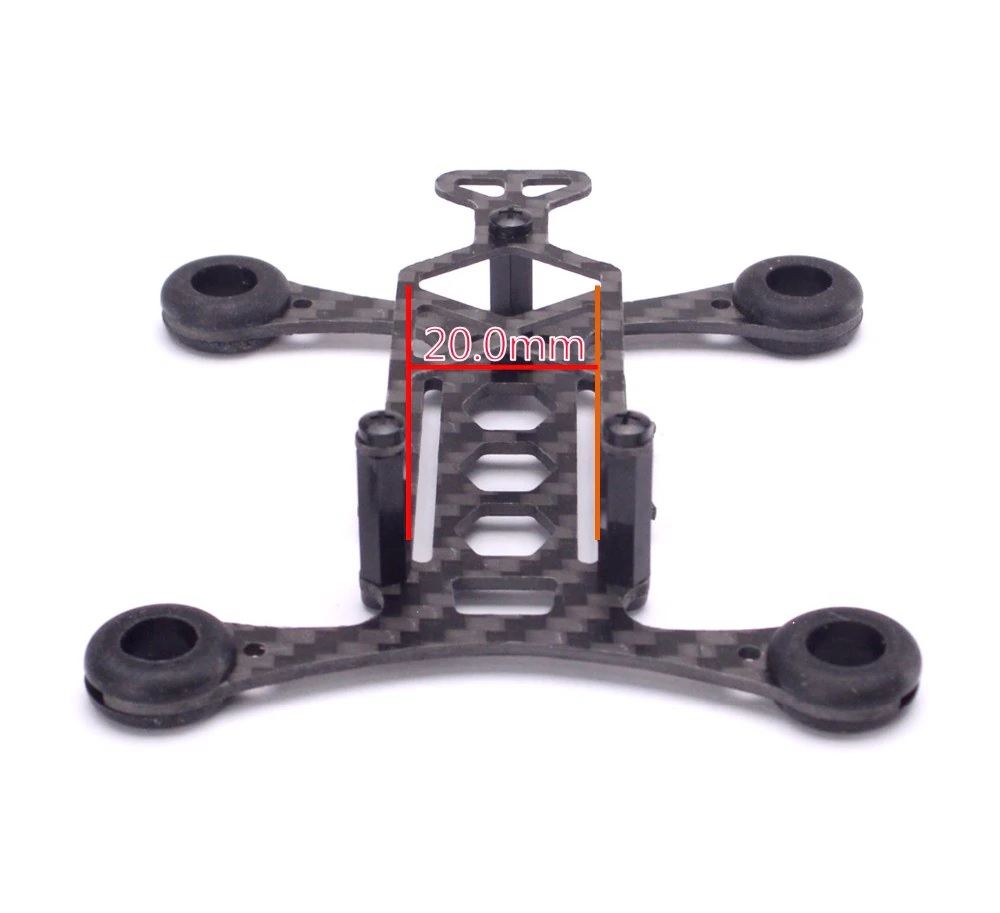

  • **Durable QX95 Frame:** Lightweight and robust frame design optimized for micro quadcopter rigidity and protection.
  • **55mm (2.2-inch) Propellers:** Specifically designed with 0.95mm mounting holes for secure attachment to 1mm motor shafts.
  • **Educational DIY Experience:** Ideal for beginners to gain practical knowledge in drone assembly, wiring, and basic flight tuning.

Applications

  • Beginner FPV micro quadcopter building and learning.
  • Indoor recreational flight and basic freestyle.
  • Educational projects for understanding drone mechanics.
  • Custom micro drone platform for experimentation.

Technical Specifications

Item TypeKit
Flight ControllerNAZE32 Flight Control
Motor TypeCoreless Motor
Propeller Size55mm (2.2-inch)
Motor Mounting Hole0.95mm (for 1mm shafts)
Included Motors8520 Magnetic Micro Coreless Motor (2xCW & 2xCCW)
Frame ModelQX95 Brushed Quad-copter Frame
Shipping Weight0.8 kg
Shipping Dimensions25 × 10 × 2 cm

Frequently Asked Questions

What flight controller firmware does the NAZE32 support, and how is it configured?

The NAZE32 typically runs Cleanflight or Betaflight firmware. Configuration is performed using the respective configurator software on a computer, connected via USB. This allows for setting up flight modes, PID tuning, receiver inputs, and sensor calibration to optimize performance for your specific build and flying style.

What are the power requirements for this QX95 kit, specifically for the motors and NAZE32?

The 8520 coreless motors typically operate on 1S LiPo batteries (3.7V nominal). The NAZE32 flight controller can be powered directly from the 1S battery, usually through an integrated BEC on a companion PDB or directly if the FC supports it. Ensure all components are within their specified voltage limits for safe operation.

How do I correctly mount the 55mm propellers to the 8520 coreless motors?

The 55mm propellers included have a 0.95mm mounting hole, designed to fit snugly onto the 1mm shafts of the 8520 coreless motors. Ensure you install two clockwise (CW) and two counter-clockwise (CCW) propellers, matching motor rotation. Press them firmly onto the motor shafts without excessive force to avoid damage.

Is this kit suitable for FPV flying, and what additional components would be needed?

Yes, this kit provides a solid platform for FPV flying. To add FPV capability, you would need a micro FPV camera, a compatible video transmitter (VTX), and FPV goggles or a monitor. These components typically require minimal wiring and can be powered from the same 1S battery or a dedicated 5V output if available.

Package Includes

  • 1 x QX95 Brushed Quad-copter Frame
  • 1 x NAZE32 Flight Control
  • 8 x 55mm (2.2inch) Blade Propeller Quadcopter
  • 1 x 8520 Magnetic Micro Coreless Motor for Micro Quadcopters – 2xCW & 2xCCW

Additional Information

Dimensions 25 × 10 × 2 cm
