Generic QRE1113 Infrared Reflection Sensor Module Red - Digital Output, 3-Pin Header
The QRE1113 Infrared Reflection Sensor Module is a digital reflectance sensor designed for 3.3V/5V microcontroller systems like Arduino and Raspberry Pi. It uses a capacitor discharge timing circuit to detect differences between light and dark surfaces, making it ideal for line-following robots and surface sensing applications.
Features
- Digital output based on capacitor discharge timing for precise reflectivity measurement.
- Wide 3.3V to 5V DC operating voltage compatible with Arduino, Raspberry Pi, and ESP32.

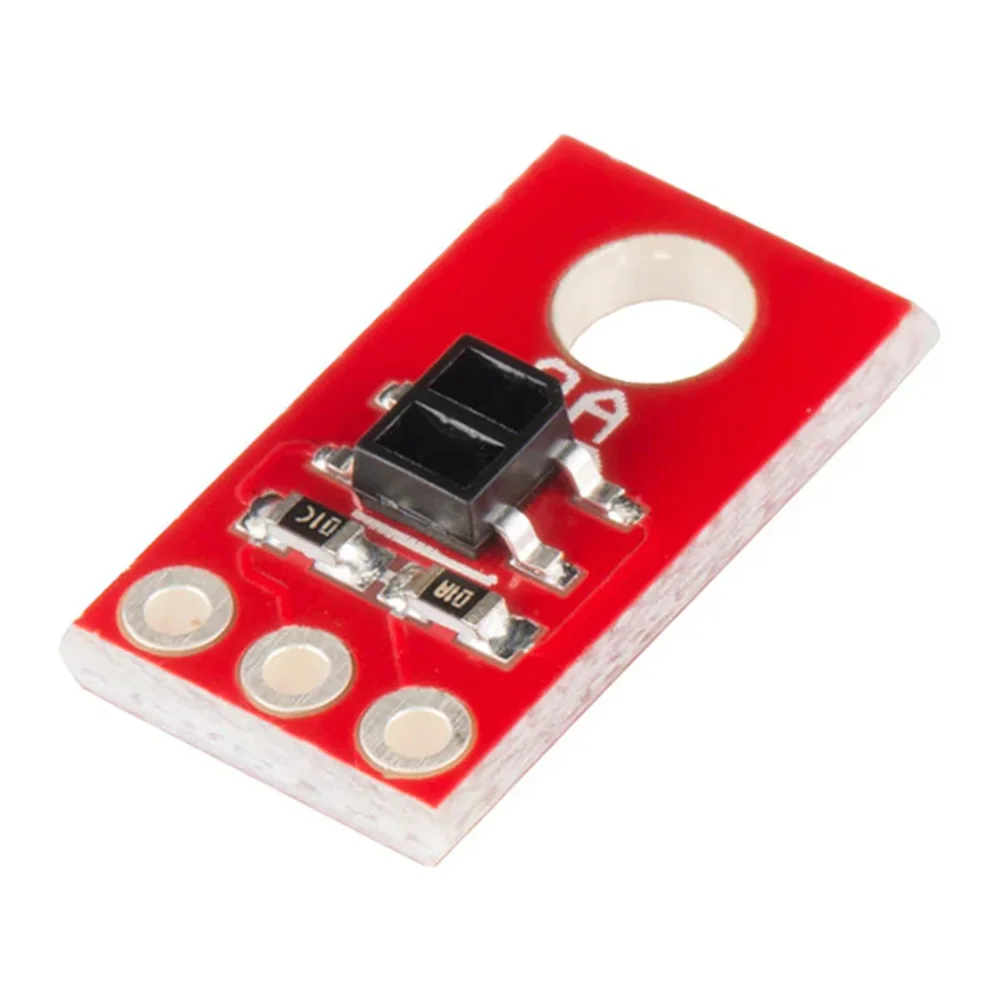

- Integrated QRE1113 IR LED and phototransistor pair with onboard 100Ω resistor and 10nF capacitor.

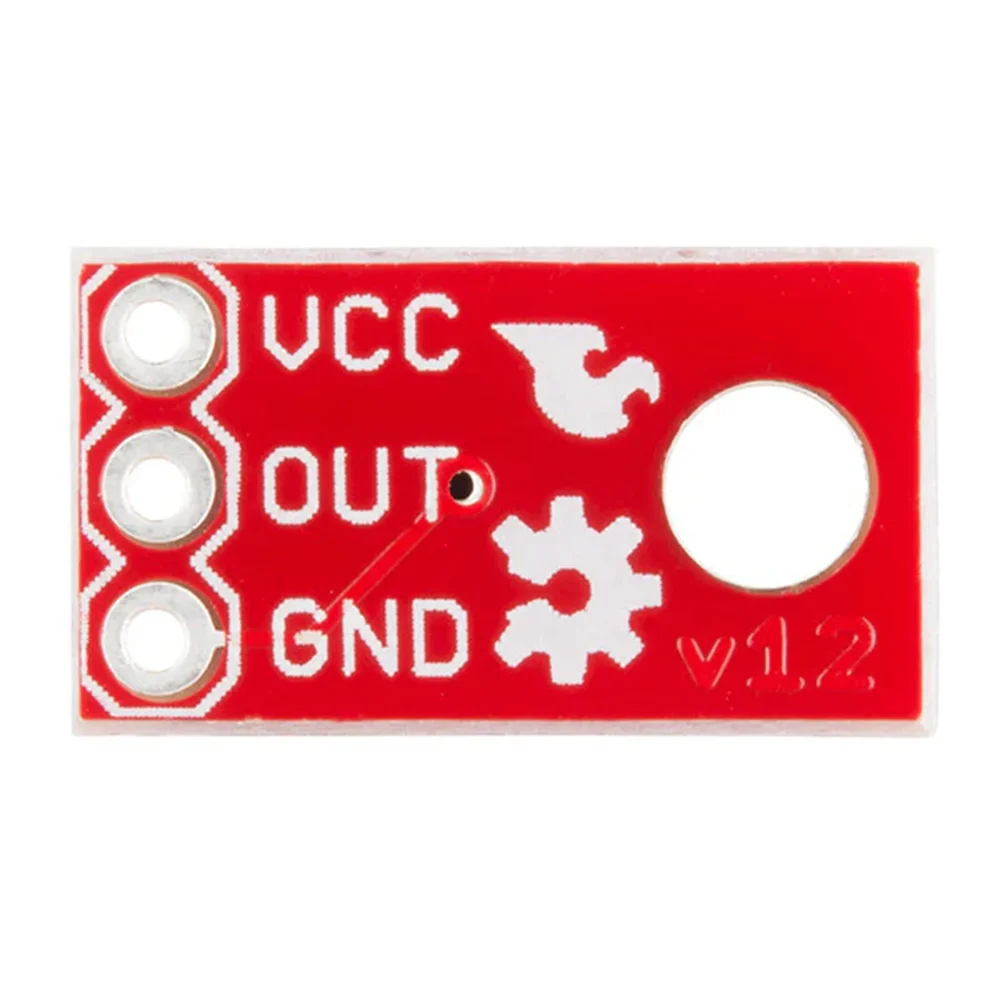

- Standard 3-pin 2.54mm header and mounting hole for easy integration into robotics and automation projects.
- Compact red PCB footprint (14mm x 8mm) for space-constrained designs.
Out of stock
The QRE1113 module is a breakout board for the QRE1113 reflective optical sensor, which combines an infrared LED emitter and a phototransistor detector. The sensing principle relies on measuring the discharge time of an onboard 10nF capacitor through the phototransistor. When IR light reflects off a bright surface, the phototransistor conducts more, discharging the capacitor faster, resulting in a shorter digital pulse width. This timing-based digital output provides a reliable method for distinguishing surface reflectivity without analog signal conditioning.
Designed for embedded electronics and robotics, the module includes all necessary passive components, simplifying interfacing with digital I/O pins on microcontrollers. Its compact form factor and single mounting hole facilitate secure installation in mobile platforms and automated systems where precise optical detection is required.
Additional Information
| Weight | 0.002 kg |
|---|---|
| Dimensions | 1.4 × 0.8 × 0.2 cm |
