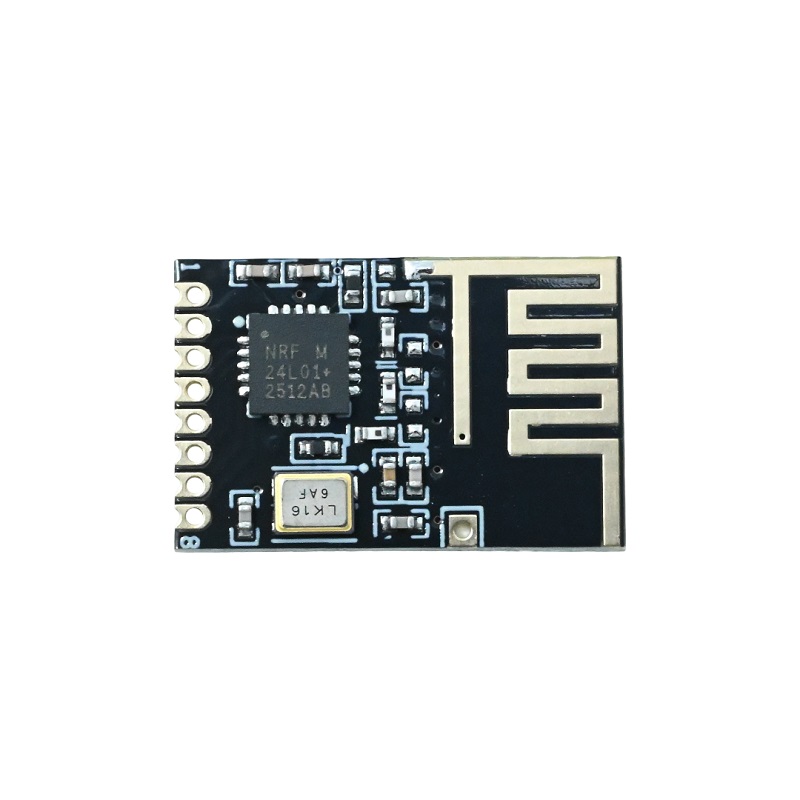

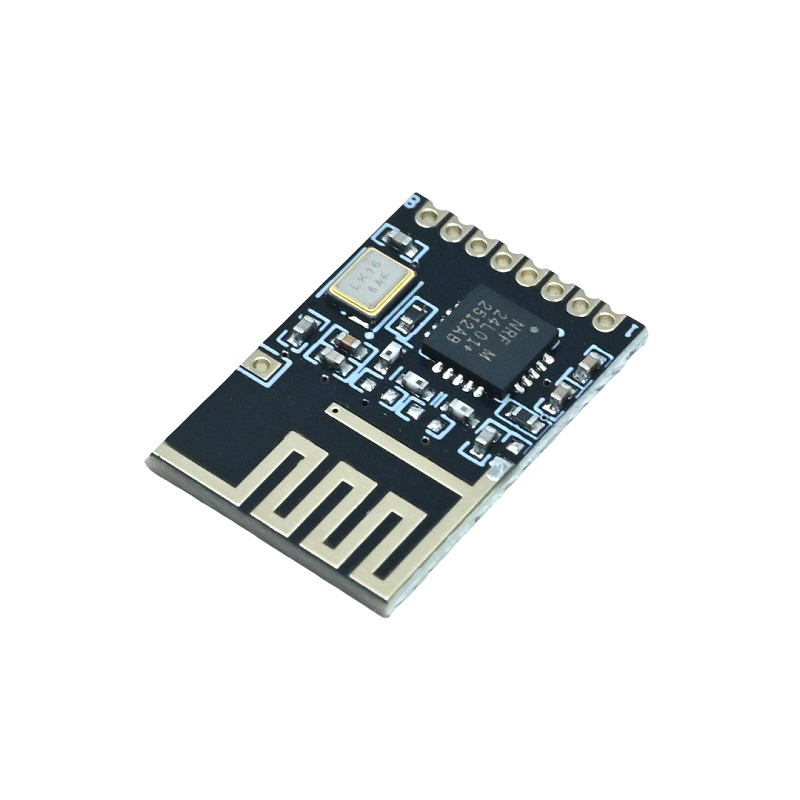

Generic NRF24L01 Wireless Module Mini Power Enhancement 2.4G Wireless Transceiver Module

This module includes an integrated Power Amplifier (PA) and Low-Noise Amplifier (LNA), which significantly increase transmission power and improve receiver sensitivity. This results in a much longer effective communication range and more reliable data links compared to the basic chip without these amplifiers.

The module operates on a supply voltage between 1.9V and 3.6V. It is designed for 3.3V logic and power systems. You must connect it to a clean 3.3V regulator; applying 5V will permanently damage the module. Always ensure your microcontroller's logic levels are 3.3V for the SPI lines.

The module connects via a 6-pin SPI interface: VCC (3.3V), GND, CE (Chip Enable), CSN (Chip Select), SCK (Clock), MOSI (Master Out Slave In), and MISO (Master In Slave Out). You will need to use a compatible library like 'RF24' and configure the correct pin assignments in your code for initialization and data packet management.

No, this is a Generic data transceiver module, not a protocol-specific RC system. It operates on the same 2.4GHz band but uses its own proprietary packet structure. It is suitable for custom telemetry, sensor data, or control signals but cannot directly replace dedicated protocols like ExpressLRS, FrSky, or Crossfire which have optimized latency and reliability for flight control.
