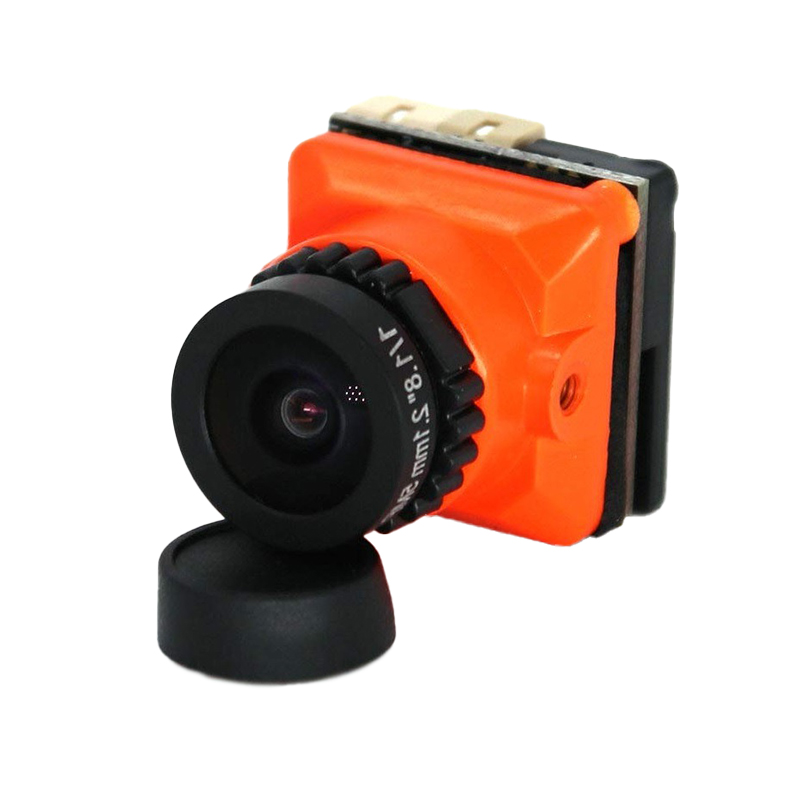

Generic MINI B19 1/3" CMOS 1500TVL Mini FPV Camera 2.1mm Lens PAL/NTSC with OSD

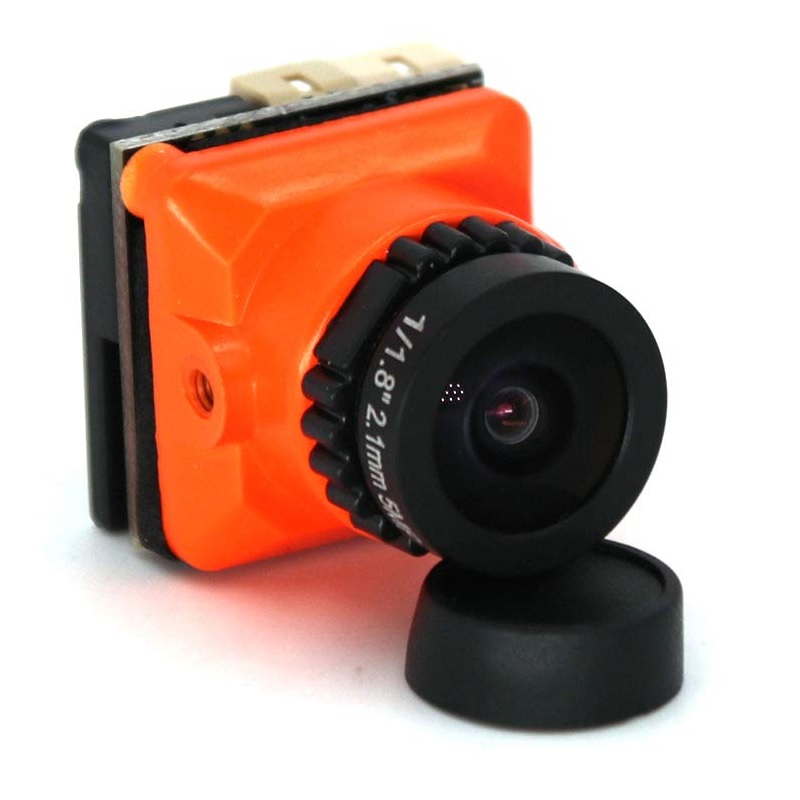

Generic MINI B19 1/3" CMOS 1500TVL Mini FPV Camera 2.1mm Lens PAL/NTSC with OSD - Image 2

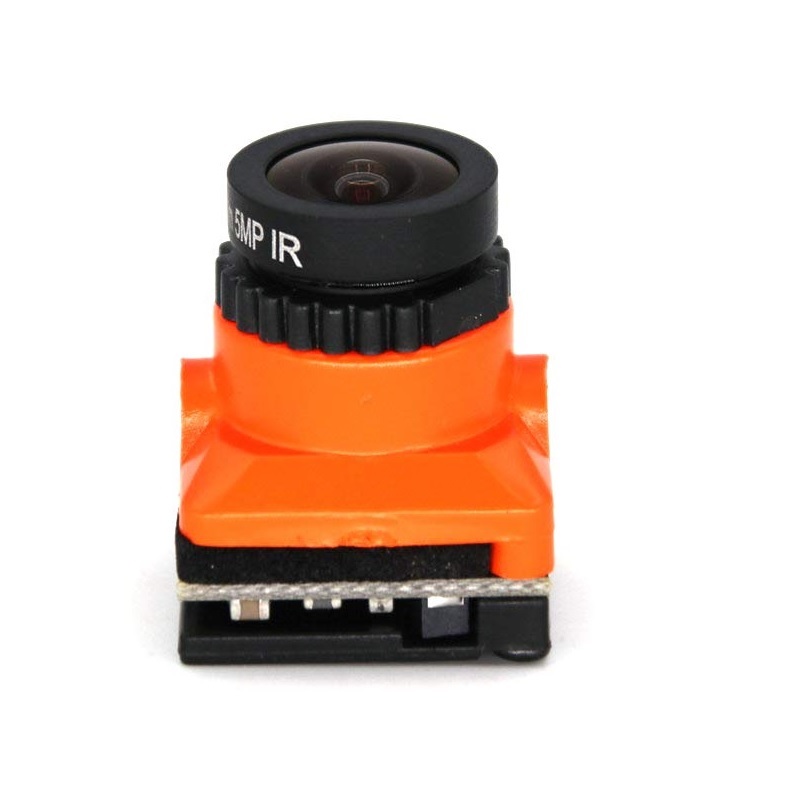

Generic MINI B19 1/3" CMOS 1500TVL Mini FPV Camera 2.1mm Lens PAL/NTSC with OSD - Image 3

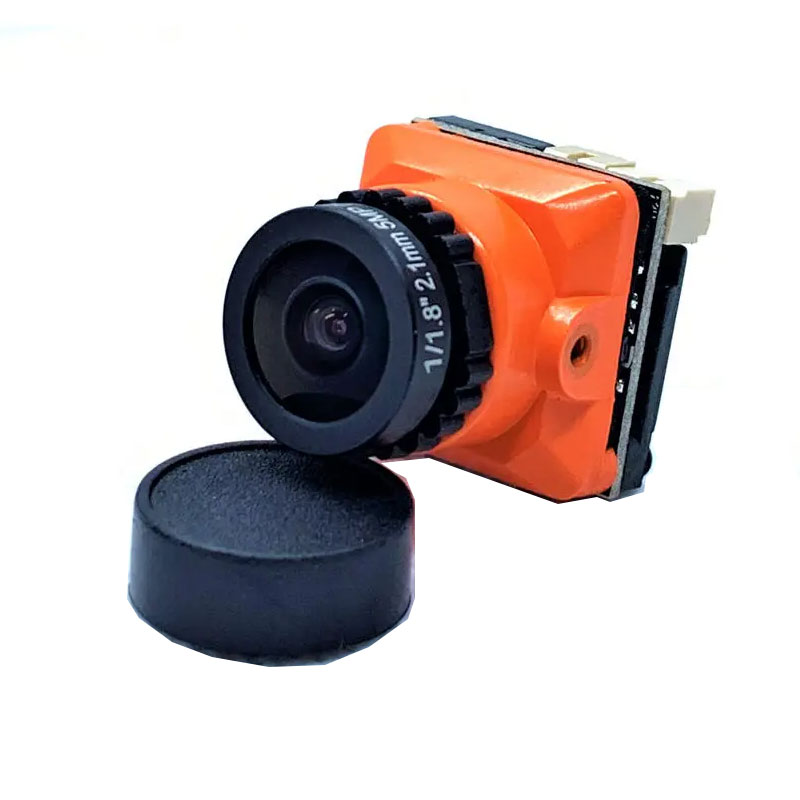

Generic MINI B19 1/3" CMOS 1500TVL Mini FPV Camera 2.1mm Lens PAL/NTSC with OSD - Image 4

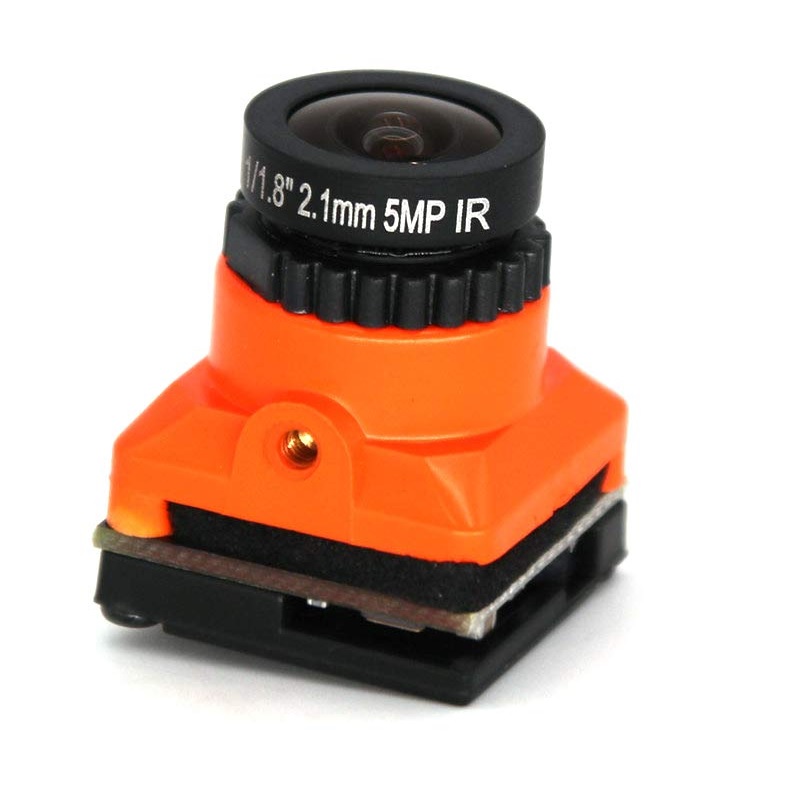

Generic MINI B19 1/3" CMOS 1500TVL Mini FPV Camera 2.1mm Lens PAL/NTSC with OSD - Image 5

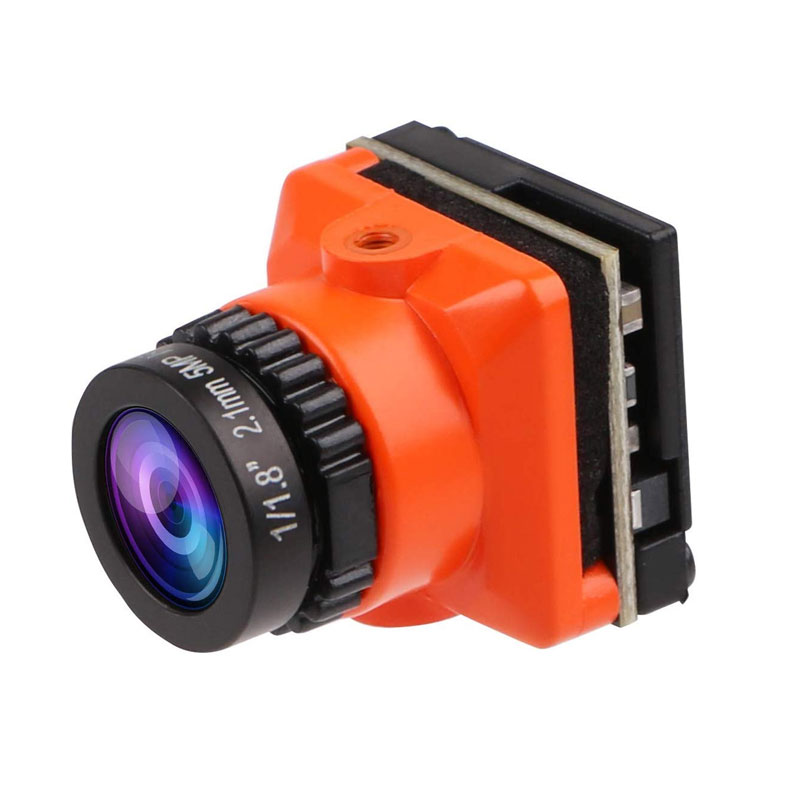

Generic MINI B19 1/3" CMOS 1500TVL Mini FPV Camera 2.1mm Lens PAL/NTSC with OSD - Image 6
SKU: DRFC-2306
📋 GST Invoice Available

Generic MINI B19 1/3" CMOS 1500TVL Mini FPV Camera 2.1mm Lens PAL/NTSC with OSD

₹1,279.00 (Inclusive of all taxes)
Out of Stock

The Generic MINI B19 is a 1/3″ CMOS mini FPV camera delivering 1500TVL resolution with a wide 2.1mm lens, supporting both PAL and NTSC signal systems via internal OSD. It operates on a broad 5V-30V DC input and features 3DNR and WDR for clear video in low-light conditions down to 0.001Lux.

Features

  • 1/3″ CMOS sensor with 1500TVL horizontal resolution for sharp, detailed FPV video.
  • Wide 2.1mm lens provides an expansive field of view for immersive piloting.
  • Dual PAL/NTSC signal system with internal OSD for flexible region compatibility and on-screen adjustment.
  • Wide voltage input range from 5V to 30V DC for compatibility with various drone power systems.
  • Enhanced low-light performance with 0.001Lux sensitivity, 3D Noise Reduction (3DNR), and Wide Dynamic Range (WDR).

Out of stock

Description

This compact 19x19x19mm FPV camera is engineered for micro and mini drone builds where space and weight are critical. The 1/3″ CMOS sensor paired with advanced image processing delivers a stable, clear video feed with minimal latency, essential for precise FPV navigation and racing. Its robust 5-30V input range allows direct integration with most LiPo battery configurations without requiring an external regulator.

Featuring automatic day/night mode switching and configurable backlight compensation (BLC), the camera maintains image integrity across diverse lighting environments. The integrated OSD provides pilots with direct access to signal system selection (PAL/NTSC) and other image parameters, enabling real-time tuning without external software.

Key Features

  • High-resolution 1/3" CMOS sensor outputs a crisp 1500TVL signal.
  • Ultra-compact cube design (19mm³) and lightweight 6g construction for minimal airframe impact.
  • Advanced 3D Noise Reduction (3DNR) and Digital Wide Dynamic Range (D-WDR) for clean video in high-contrast scenes.
  • Flexible power input from 5V to 30V DC supports direct connection to 2S-6S LiPo systems.
  • Internal OSD board allows on-the-fly switching between PAL (sharper text) and NTSC (higher frame rate) signal formats.
  • Low illumination capability of 0.001Lux/1.2F enables usable video in near-darkness.
  • Configurable Auto Gain Control (AGC) with LOW/MIDDLE/HIGH settings for fine-tuning image brightness.

Applications

  • Ultra-lightweight micro and nano FPV drone builds requiring a minimal footprint camera.
  • FPV racing quads where low latency and a wide field of view from the 2.1mm lens are critical.
  • Freestyle and cinewhoop drones benefiting from the camera's wide voltage range and low-light performance for dynamic lighting environments.
  • DIY drone projects and educational platforms where easy integration with OSD configuration is valued.
  • Compact security or inspection drone setups leveraging the small form factor and dual signal system.

Technical Specifications

Image Sensor1/3" CMOS
Resolution1500TVL
Lens2.1mm
Signal SystemPAL / NTSC (OSD Internal adjustable)
Min. Illumination0.001Lux @ F1.2
Power InputDC 5V-30V
Electronic ShutterPAL
Day/Night ModeAuto / Color / B&W
DNR3DNR
WDRD-WDR
Backlight Compensation (BLC)Yes
Auto Gain Control (AGC)LOW / MIDDLE / HIGH
S/N Ratio>60 dB (AGC OFF)
Dimensions (L x W x H)19 x 19 x 19 mm
Weight6.0 g

Frequently Asked Questions

What is the difference between PAL and NTSC modes on this FPV camera?

The internal OSD allows you to switch between PAL and NTSC signal systems. PAL mode typically offers a slightly higher vertical resolution (576 lines) for sharper text and static detail, while NTSC mode provides a marginally higher frame rate (60 Hz) for smoother motion video. The choice depends on your video receiver/goggles compatibility and regional broadcast standards.

Can I power this camera directly from a 4S LiPo battery (14.8V)?

Yes. This camera has a wide input voltage range of 5V to 30V DC, making it directly compatible with 2S (7.4V), 3S (11.1V), 4S (14.8V), and even 6S (22.2V) LiPo batteries without requiring a separate voltage regulator. Ensure your wiring and connectors are rated for the corresponding current.

How do I access and change the OSD settings like the signal format?

The included OSD board connects to the camera and provides an on-screen display menu. You typically navigate this menu using a connected push-button or via channel commands from your flight controller. The manual included in the package should outline the specific button-press sequences for changing the signal system, AGC level, and other image parameters.

What is the benefit of the 3DNR (3D Noise Reduction) feature?

3D Noise Reduction analyzes consecutive video frames to distinguish between actual image detail and random visual noise. It significantly reduces graininess and speckling in the video feed, especially in low-light conditions or when using high gain settings, resulting in a cleaner, more stable, and professional-looking FPV image.

Package Includes

  • 1 x 1/3" CMOS 1500TVL Mini FPV Camera (2.1mm Lens)
  • 1 x OSD Board
  • 1 x 2-Pin Cable
  • 1 x 3-Pin Cable
  • 1 x Product Manual
  • 1 x Set of Mounting Screws

Additional Information

Weight 0.006 kg
Dimensions 1.9 × 1.9 × 1.9 cm

Related Products

Out of Stock

AxisFlying Thermal Imaging Camera for FPV Drones 384x288

85,563.00
Learn More
Out of Stock

Skydroid C20 22x Zoom 3-Axis Gimbal Camera

69,859.00
Learn More
Out of Stock

170W H-Bridge DC Motor Driver Module, NMOS Brake, 5-30V

1,079.00
Learn More
Out of Stock

AxisFlying FPV Thermal Camera 256x192 VOX Detector

38,489.00
Learn More
Out of Stock

OMNIBUS F4 Flight Controller with OSD + BEC

3,237.00
Learn More
Out of Stock

Skydroid C12 3-Axis Stabilized Gimbal Camera

50,751.00
Learn More
Out of Stock

SIYI ZR30 30X Optical Zoom Gimbal Camera

133,869.00
Learn More
Out of Stock

Mamba F4 Pro V2 Flight Controller

2,950.00
Learn More
Out of Stock

SIYI ZT30 Four-Sensor 30X Optical Zoom 4K Gimbal Camera

769,859.00
Learn More
Out of Stock

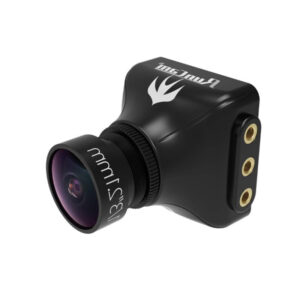

RunCam Swift 2 v2 FPV Camera - 2.5mm Lens
