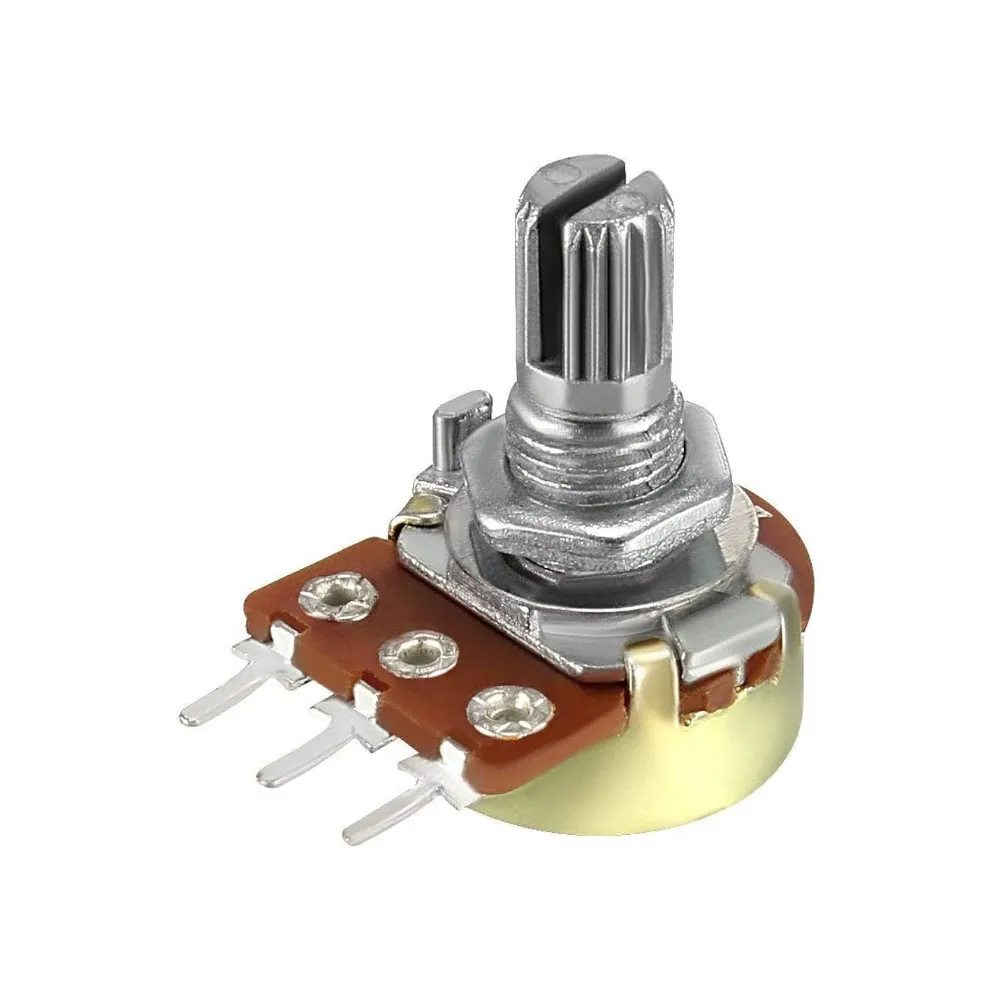

Generic Metal Potentiometer – 10k Ohm (Single Unit)

The Engineering Behind Generic 10k Ohm Metal Potentiometer

The Generic 10k Ohm Metal Potentiometer is a foundational passive electronic component designed for variable resistance control. It operates on the principle of a three-terminal resistor with a sliding or rotating contact that forms an adjustable voltage divider, making it ideal for tuning and calibration in a multitude of circuits. Its core architecture involves a resistive track and a wiper mechanism, allowing for precise output voltage adjustment proportional to the physical rotation.

Constructed with a durable metal shaft and housing, this potentiometer offers enhanced mechanical stability and longevity, suitable for applications requiring frequent adjustments. Its robust design minimizes wear and tear, ensuring consistent performance over extended operational cycles. For educational purposes, it serves as an excellent demonstration tool for Ohm’s Law, voltage division, and analog input concepts in STEM learning environments.

Precision 10k Ohm Resistance

The 10k Ohm resistance value provides a versatile range for a broad spectrum of electronic applications, from audio volume control and signal attenuation to motor speed regulation and light intensity adjustment. This specific resistance allows for fine-tuning in circuits without excessive current draw, making it a reliable choice for sensitive analog interfaces and microcontroller inputs where stable feedback is crucial.

Robust Metal Shaft & Housing

The inclusion of a metal shaft and housing directly addresses common issues of component fragility and mechanical instability found in plastic alternatives. This robust construction ensures that the potentiometer can withstand repeated adjustments and minor physical impacts, preventing shaft breakage and maintaining consistent electrical contact, thereby significantly extending the component’s operational lifespan in demanding environments.

Optimized for Performance & Integration

• Resistance Value: 10k Ohm (Linear Taper)
• Power Rating: 0.25W
• Tolerance: ±10%
• Operating Temperature: -10°C to +70°C
• Rotation Angle: 300° ±5°
• Terminal Type: Solder Lugs
• Shaft Material: Metal

Features & Benefits

• 10k Ohm Resistance: Offers versatile adjustment for various circuit parameters, from audio to sensor calibration.
• Robust Metal Shaft: Provides superior mechanical durability and stable rotation for frequent use.
• Smooth Linear Taper: Ensures proportional and predictable resistance change across the full rotation.
• Three Terminal Design: Easily integrates into voltage divider configurations or variable resistor setups.
• Panel Mountable: Facilitates secure and professional installation onto project enclosures and PCBs.
• Wide Application Range: Ideal for volume control, dimming LEDs, setting reference voltages, and more.
