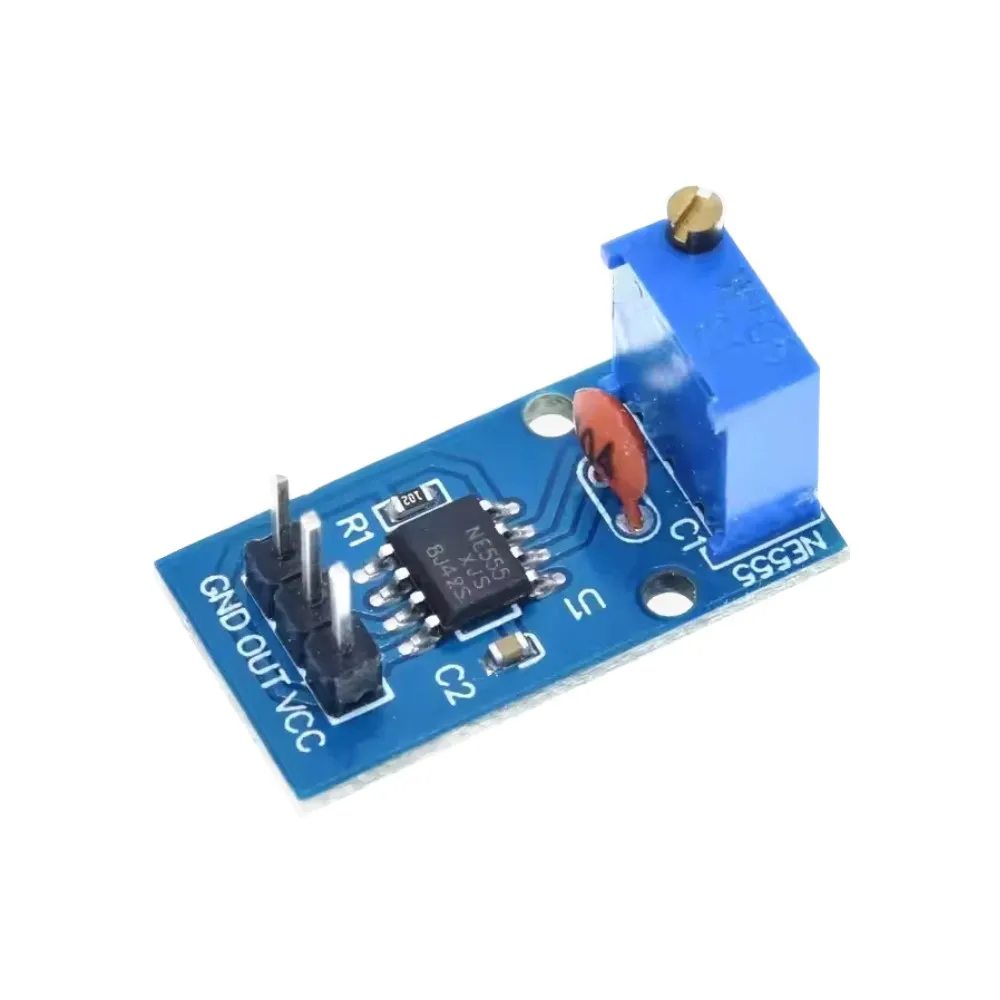

Generic NE555 Frequency Adjustable Pulse Generator Module | Wide Voltage Range | Versatile Signal Generation
₹149.00₹250.00 (price_including_tax) (-40%)
Unlock fundamental electronic timing principles with this NE555 Frequency Adjustable Pulse Generator Module. Ideal for educational projects and prototyping, it provides stable and versatile square wave signals. Experience robust performance and ease of integration into various circuits.
Master timing and control with this reliable NE555 module for precise frequency generation.
Leverages the industry-standard NE555 chip for consistent, dependable pulse generation.
Onboard potentiometer allows effortless real-time adjustment of output frequency and duty cycle.
Essential for prototyping, educational projects, and driving various digital circuits with ease.
The Engineering Behind NE555 Frequency Adjustable Pulse Generator Module
This module harnesses the renowned NE555 precision timer IC, a ubiquitous component in electronics, to generate highly stable square wave signals. Operating in astable mode, the NE555’s internal comparators and flip-flop architecture precisely control charge and discharge cycles of an external capacitor, yielding a continuously oscillating output. Its core application lies in creating clock signals, PWM control, and driving various digital and analog circuits.
Constructed on a durable PCB with clearly marked components, this module emphasizes ease of use and pedagogical value. High-quality resistors and capacitors ensure frequency stability, while a potentiometer allows for intuitive adjustment of the output frequency and duty cycle. Designed for repeated use in educational environments and hobbyist workshops, it serves as a robust platform for understanding fundamental timing circuits.
Astable Multivibrator Configuration
The module is pre-configured as an astable multivibrator, a free-running oscillator that continuously produces a square wave output without any external trigger. This configuration is critical for applications requiring a repetitive pulse train, such as flashing LEDs, generating audio tones, or providing clock signals for sequential logic circuits, offering unparalleled simplicity and reliability in signal generation.
Wide Operating Voltage & Adjustable Parameters
Supporting a broad input voltage range, this module integrates seamlessly into 5V and 15V systems, eliminating the need for complex power regulation. The onboard potentiometer allows for real-time adjustment of both the output frequency and the duty cycle, providing critical flexibility for fine-tuning signal characteristics to meet specific project requirements, from slow timing events to rapid pulse modulation.
Optimized for Performance & Integration
- Main Chip: NE555 Precision Timer IC
- Operating Modes: Astable Multivibrator
- Frequency Adjustment: Onboard Potentiometer
- Output Signal: Square Wave
- Pin Configuration: VCC, GND, OUT (with clear silkscreen)
- Output Current Capacity: Up to 200mA (sink/source)
- Input Voltage Range: 5V – 15V DC
Features & Benefits
- NE555 Timer IC: Provides reliable and precise square wave generation for diverse electronic applications.
- Adjustable Frequency & Duty Cycle: Fine-tune output signals via potentiometer for custom project requirements.
- Wide Voltage Compatibility: Operates efficiently across 5V to 15V DC power sources, simplifying integration.
- Compact Module Design: Easily incorporates into breadboards, custom PCBs, and educational kits.
- Clear Output Indication: Often includes an LED to visualize pulse activity for quick debugging.
- Educational Versatility: Perfect for teaching fundamental timing, PWM, and oscillator circuit concepts.
Pro-Grade Advantages
- Cost-effective solution for basic pulse generation needs.
- High reliability and wide availability of the NE555 IC.
- Simple interface, making it ideal for beginners and rapid prototyping.
- Flexible voltage input range enhances compatibility with different systems.
Technical Considerations
- Limited to square wave output, not suitable for complex waveforms.
- Frequency stability can be influenced by temperature variations.
What is the primary function of the NE555 Frequency Adjustable Pulse Generator Module?
Its primary function is to generate stable, adjustable square wave pulses, commonly used for timing, clock signals, PWM, and driving various electronic circuits.
How is the frequency adjusted on this module?
The frequency and often the duty cycle are adjusted using an onboard potentiometer, allowing for real-time fine-tuning of the output signal characteristics.
What voltage range does the NE555 module typically operate within?
Most NE555 pulse generator modules are designed to operate efficiently within a DC input voltage range of 5V to 15V, accommodating common power supplies.
Can this module generate waveforms other than square waves?
No, the standard NE555 pulse generator module is inherently designed to produce square wave outputs when configured in astable mode.
What are common applications for an NE555 pulse generator?
Common applications include LED flashing circuits, tone generators, motor speed control (PWM), timing delays, and basic clock signal generation for microcontrollers.
Is this module suitable for educational purposes?
Absolutely, it is highly suitable for educational purposes, providing a hands-on way to understand fundamental concepts of oscillators, timing circuits, and pulse width modulation.
| Specification | Value |
|---|---|
| Main IC | NE555 Precision Timer |
| Operating Mode | Astable Multivibrator |
| Input Voltage | DC 5V – 15V |
| Output Waveform | Square Wave |
| Output Frequency Range | Approx. 1Hz – 200kHz (Potentiometer Dependent) |
| Duty Cycle Adjustment | Yes, via Potentiometer |
| Output Current Drive | ~200mA (sink/source) |
| Mounting Holes | Typically 2-4 (e.g., 3mm diameter) |
| Current Consumption | ~10mA (idle, varies with load) |
Additional information
| Brand | Generic |
|---|---|
| Technology | Analog/Digital Hybrid |
| Operating Voltage | 5V-15V DC |
| Output Signal | Square Wave |
| Control Interface | Potentiometer |
| Difficulty Level | Beginner |
| Main Controller | NE555 Timer IC |
