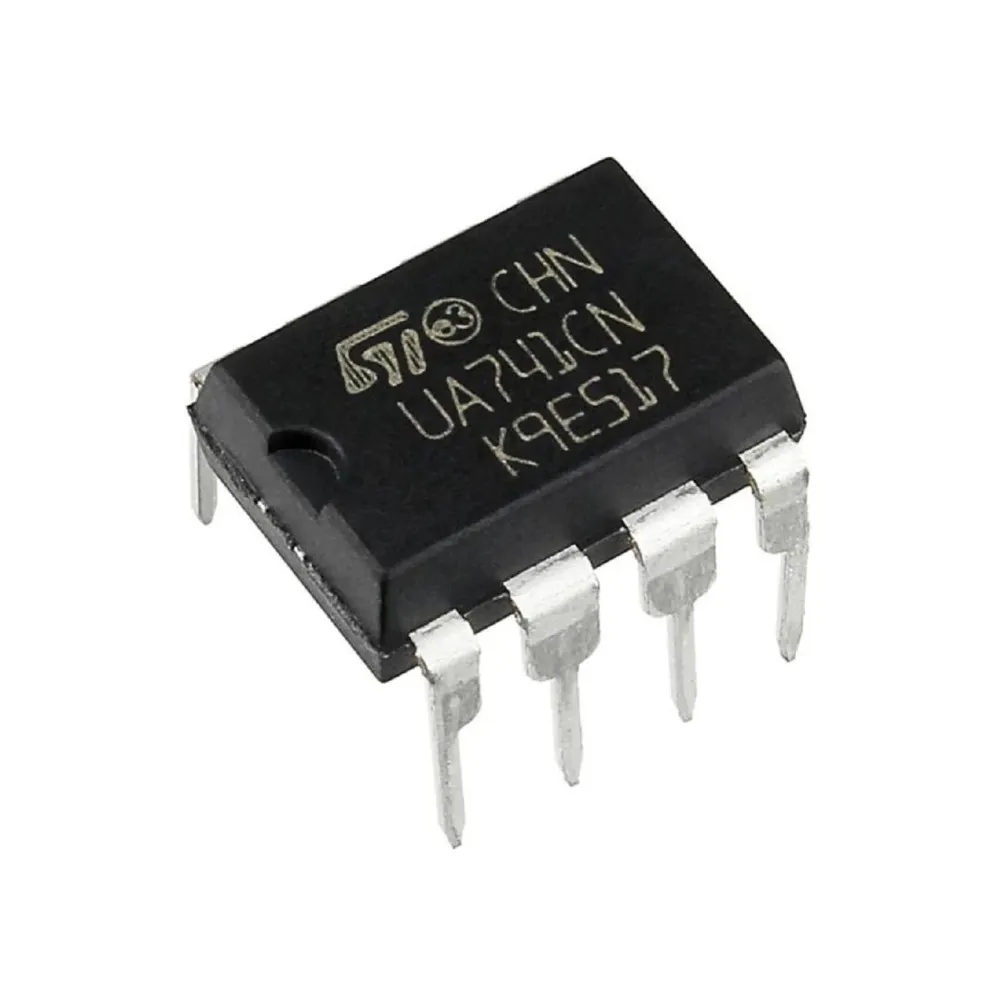

Name: Generic LM741 Operational Amplifier IC | Versatile Signal Processing | Stable Low-Noise Performance
Brand: Generic
SKU: OL-GEN-LM741OPAMP
Price: 45.00 INR
Availability: InStock

Industry Standard Reliability

A classic IC, renowned for stable performance across a multitude of analog circuit designs.

Simplified Circuit Integration

Internal compensation reduces external component count, making implementation straightforward and efficient.

Robust Protection Features

Built-in short-circuit safeguards ensure device longevity and error-tolerant operation for engineers.

The Engineering Behind LM741 Operational Amplifier

The LM741 is a high-performance general-purpose operational amplifier featuring high open-loop gain, internal compensation, and short-circuit protection. Designed for a wide range of analog applications, it accurately amplifies differential input signals, making it fundamental for filter circuits, integrators, differentiators, and precision rectifiers. Its robust bipolar junction transistor (BJT) architecture ensures stable operation.

This integrated circuit is widely utilized in educational settings for teaching fundamental analog electronics due to its transparent characteristics and predictable behavior. Its design prioritizes reliability and ease of use, making it a cornerstone component for both hobbyists and professional engineers developing stable, long-lasting circuit solutions.

Internal Frequency Compensation

A key design feature of the LM741 is its internal frequency compensation capacitor. This integrated capacitor simplifies circuit design by eliminating the need for external compensation components, ensuring unconditional stability for a wide range of closed-loop gain configurations. This reduces component count and board space while enhancing system reliability.

Overload Protection & Wide Operating Voltage

The LM741 incorporates output short-circuit protection and input overload protection, safeguarding the device from common operational hazards and preventing damage due to incorrect wiring or excessive loads. Furthermore, its broad operating voltage range (typically ±5V to ±15V) offers significant flexibility, allowing integration into various power supply schemes without complex external regulation, simplifying power management challenges.

Optimized for Performance & Integration

Supply Voltage Range: ±5V to ±15V (typical)
Input Offset Voltage: 2mV (typical)
Gain Bandwidth Product: 1.0 MHz (typical)
Slew Rate: 0.5 V/µs (typical)
Package Type: 8-pin DIP (Dual In-line Package)
Input Bias Current: 80 nA (typical)
Internal Short-Circuit Protection: Yes

Features & Benefits

Internal Frequency Compensation: Simplifies design by eliminating external compensation components, saving board space and reducing complexity.
Short-Circuit Protection: Guards the output against accidental short circuits, enhancing durability and preventing damage.
High Open-Loop Voltage Gain: Provides robust amplification for weak signals, enabling precise signal conditioning and measurement.
Wide Operating Voltage Range: Compatible with diverse power supplies (±5V to ±15V), offering design flexibility and broader application scope.
No Latch-Up: Ensures stable and reliable operation under various input conditions without unexpected state changes.
Versatile Application: Ideal for integrators, differentiators, summing amplifiers, and active filters across many projects.

Pro-Grade Advantages

Extremely well-documented and widely supported by resources.
Internal frequency compensation simplifies circuit design.
Robust against output short-circuits and input overloads.
Low cost and readily available for hobbyist and industrial use.

Technical Considerations

Relatively low slew rate limits high-frequency applications.
Higher input offset voltage compared to modern precision op-amps.

What is the primary function of the LM741 operational amplifier?

The LM741 is designed for general-purpose voltage amplification and signal conditioning in a wide array of analog circuit applications, including summing, differentiating, and integrating.

What type of power supply does the LM741 typically require?

The LM741 requires a dual or split power supply, typically ranging from ±5V to ±15V, to provide both positive and negative rails for its operation.

Does the LM741 require external frequency compensation?

No, the LM741 features internal frequency compensation, which simplifies circuit design by ensuring stability without the need for external capacitors or resistors for this purpose.

What is the significance of the LM741’s low slew rate?

A low slew rate (0.5 V/µs) means the output voltage cannot change very quickly, limiting its effective use in high-frequency applications or when amplifying fast-changing signals without distortion.

Is the LM741 suitable for precision measurement applications?

While versatile, the LM741’s relatively higher input offset voltage and bias currents make it less ideal for applications requiring extremely high precision compared to more modern, specialized op-amps.

What package types are common for the LM741?

The LM741 is most commonly available in an 8-pin Dual In-line Package (DIP), but it can also be found in surface-mount packages like SOIC.

Specification	Value
Input Offset Voltage	2 mV (typical)
Input Bias Current	80 nA (typical)
Offset Voltage Drift	10 µV/°C
Open-Loop Gain	100,000 V/V (typical)
Gain Bandwidth Product	1.0 MHz (typical)
Slew Rate	0.5 V/µs (typical)
Supply Current	1.7 mA (typical)
Common Mode Rejection Ratio (CMRR)	90 dB (typical)
Output Short-Circuit Current	25 mA (typical)
Operating Temperature Range	0°C to +70°C

Additional information

Weight	0.001 kg
Dimensions	0.92 × 0.64 × 0.33 cm
Brand	Generic
Technology	Bipolar Junction Transistor (BJT) Op-Amp
Operating Voltage	±5V to ±15V
Channels	1 (Single)
Package	8-pin DIP
