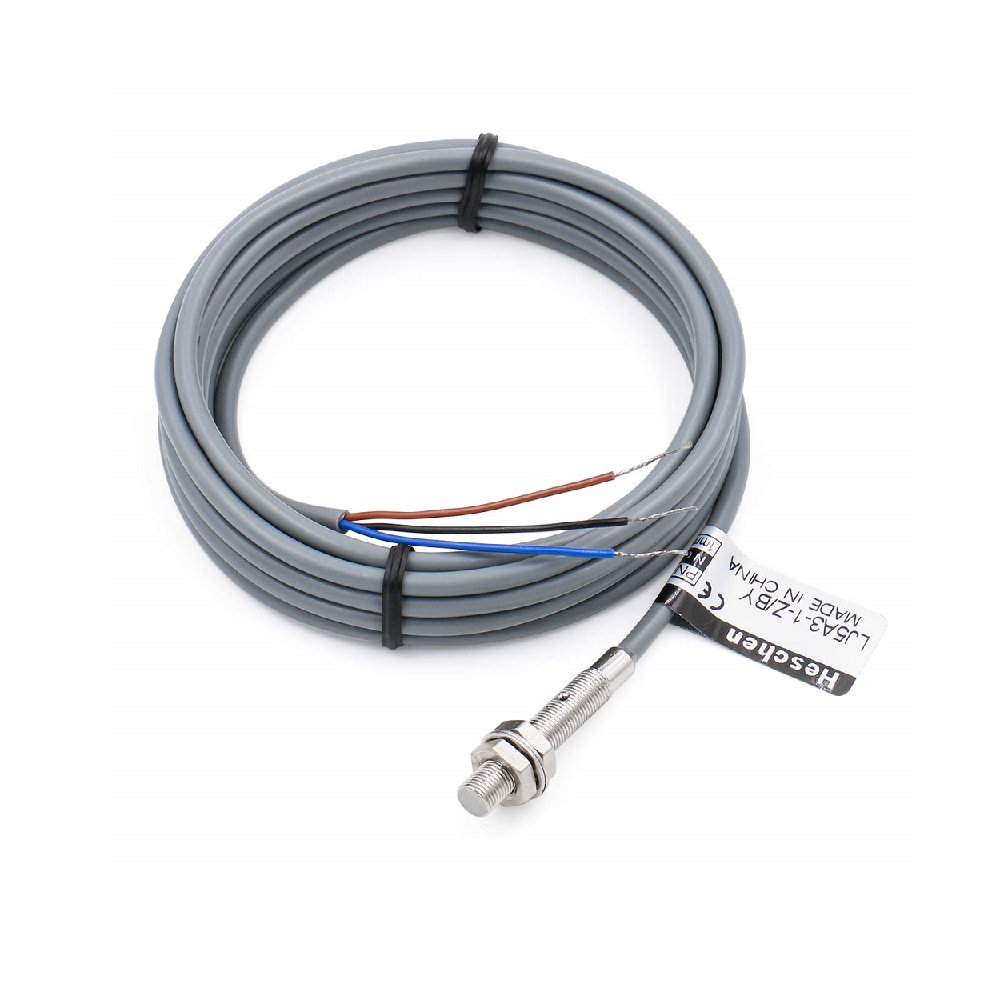

Generic LJ5A3-1-Z/BY Inductive Proximity Sensor - PNP NO, 10-30VDC, 1mm Range, IP65
The LJ5A3-1-Z/BY is a PNP normally open (NO) inductive proximity sensor designed for non-contact detection of metallic objects within a 1mm range. Operating from a 10–30VDC supply, it integrates seamlessly into industrial PLCs and 24V DC control systems for automation tasks.
Features
- PNP Normally Open (NO) output for direct interface with PLC sinking inputs.
- 1mm nominal detection distance for precise metal object sensing.
- Robust brass-nickel plated housing with IP65-rated environmental protection.
- Wide 10–30VDC operating voltage range compatible with standard industrial power rails.
- 150mA maximum output current capable of driving small relays or indicators directly.
Out of stock
The LJ5A3-1-Z/BY operates on the electromagnetic induction principle, generating an oscillating field from its ABS sensing face. When a metallic target enters the 1mm detection zone, it dampens the oscillation, triggering the internal solid-state switch to change state. This provides a reliable, wear-free alternative to mechanical limit switches.
Engineered for harsh industrial environments, its brass-nickel plated housing offers corrosion resistance and mechanical durability. The IP65 rating ensures protection against dust ingress and low-pressure water jets, making it suitable for machine tools, conveyor systems, and automated assembly lines where reliability is critical.
Additional Information
| Weight | 0.138 kg |
|---|---|
| Dimensions | 12 × 8 × 3 cm |
