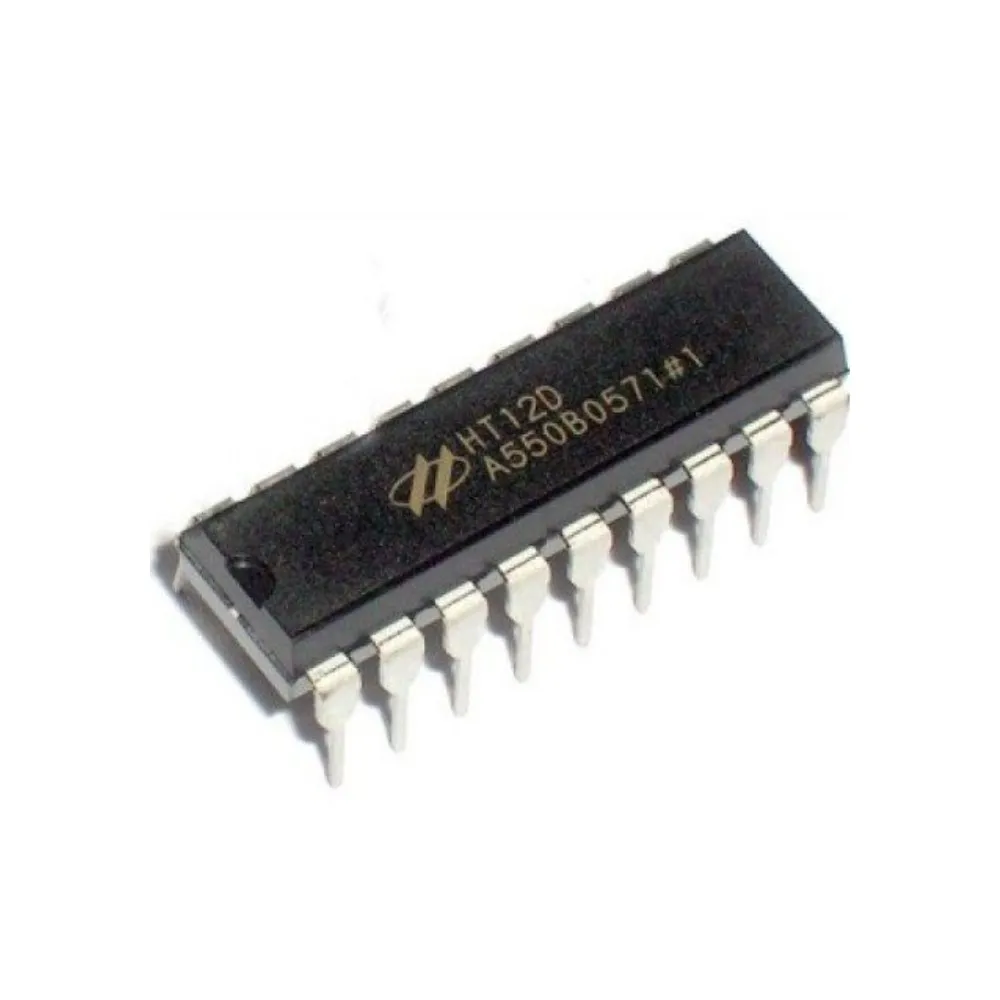

Generic HT12D HT12E Encoder Decoder IC | Reliable RF Data Link | Secure Wireless Communication
₹45.00₹80.00 (price_including_tax) (-44%)
Unlock the power of wireless data transmission in your projects. Seamlessly convert parallel data to serial for RF communication and back again. Engineered for dependable performance in educational and hobbyist applications.
Master fundamental wireless communication with these robust HT12D and HT12E encoder-decoder integrated circuits.
Simplifies complex RF communication, making wireless control accessible for every project idea.
Ensures secure and reliable signal transmission with integrated address verification mechanisms.
Provides a hands-on platform for learning essential digital encoding and decoding principles effectively.
The Engineering Behind HT12D & HT12E
The HT12D and HT12E are a classic pair of CMOS LSI integrated circuits designed for remote control system applications. The HT12E acts as an encoder, converting 12-bit parallel data into a serial format suitable for RF (Radio Frequency) transmission. Conversely, the HT12D functions as a decoder, receiving the serial data and converting it back into its original 12-bit parallel form. This fundamental architecture is crucial for establishing simple, yet effective, one-way wireless communication links in various DIY and educational projects.
These ICs are known for their low power consumption and robust operational stability, making them ideal for battery-powered applications. Their straightforward implementation, requiring minimal external components, positions them as excellent learning tools for understanding basic digital encoding/decoding principles and RF communication protocols, fostering hands-on electronics education.
Efficient Data Encoding & Decoding
The primary technical feature of the HT12D and HT12E lies in their ability to manage 12 bits of information, typically comprising 8 address bits and 4 data bits. The encoder serializes this data, adding a synchronization bit, which is then transmitted. The decoder, upon receiving the serial stream, performs a rigorous address verification process before converting the valid data back into parallel outputs, ensuring reliable and secure data integrity for various control applications.
Versatile Operating Voltage & Interface
Operating across a broad voltage range (2.4V to 12V for HT12E, 2.4V to 5V for HT12D), these ICs offer significant flexibility for integration into diverse power schemes. Their simple direct connection to RF transmitter/receiver modules, along with clear pin assignments for data and address inputs/outputs, simplifies circuit design and reduces development time, making complex wireless setups more approachable for students and hobbyists.
Optimized for Performance & Integration
- Operating Voltage HT12E: 2.4V ~ 12V
- Operating Voltage HT12D: 2.4V ~ 5V
- Address Bits: 8 (adjustable)
- Data Bits: 4 (adjustable)
- Output Type (HT12D): Latched / Momentary
- Package Type: DIP-16 (Dual In-line Package)
- Low Power Consumption: Ideal for battery applications
- Minimal External Components: Simplifies circuit design
Features & Benefits
- Dedicated Encoder/Decoder Pair: Streamlines wireless data transmission and reception for remote control systems.
- 12-Bit Transmission Capacity: Offers 8 address bits and 4 data bits for secure, unique device addressing and control.
- Wide Operating Voltage Range: Compatible with various power sources (2.4V-12V for HT12E, 2.4V-5V for HT12D) for flexibility.
- Low Power CMOS Technology: Ensures extended battery life, making them suitable for portable and embedded projects.
- Simple Interfacing: Directly connects to common RF modules, accelerating development and prototyping efforts.
- DIP-16 Package: Breadboard-friendly design facilitates easy prototyping and educational experimentation.
Pro-Grade Advantages
- Simple, dedicated encoder/decoder functionality for basic RF links.
- Very low power consumption, excellent for battery-operated devices.
- High noise immunity with robust address and data verification.
- Cost-effective solution for remote control and data transmission.
Technical Considerations
- Limited data throughput suitable only for simple control signals.
- One-way communication only, not designed for bidirectional data exchange.
What is the primary function of the HT12E?
The HT12E is an encoder IC designed to convert 12-bit parallel data into a serial format for wireless transmission.
What is the primary function of the HT12D?
The HT12D is a decoder IC that receives serial data and converts it back into its original 12-bit parallel form.
What is the typical operating voltage range for these ICs?
The HT12E operates from 2.4V to 12V, while the HT12D typically operates from 2.4V to 5V.
How many bits of data can be transmitted using this encoder/decoder pair?
These ICs support 12 bits of information, consisting of 8 address bits and 4 data bits.
Are these ICs suitable for bidirectional communication?
No, the HT12D and HT12E are designed for one-way (simplex) communication, not for bidirectional data exchange.
What package type are the HT12D and HT12E typically available in?
They are commonly available in a DIP-16 (Dual In-line Package) for easy prototyping and circuit board integration.
Can the address bits be changed for security?
Yes, the 8 address pins on both the encoder and decoder can be set to different combinations (HIGH/LOW) to create unique addresses, enhancing security and preventing interference.
| Specification | Value |
|---|---|
| HT12E Operating Voltage | 2.4V ~ 12V |
| HT12D Operating Voltage | 2.4V ~ 5V |
| Number of Data Pins | 4 |
| Number of Address Pins | 8 |
| HT12E Oscillator Resistor | 51KΩ (typical) |
| HT12D Oscillator Resistor | 47KΩ (typical) |
| HT12D Output Type | Latched or Momentary |
| HT12D Valid Transmission (VT) Pin | Pin 17 (Active Low) |
Additional information
| Brand | Generic |
|---|---|
| Technology | CMOS LSI |
| Operating Voltage | 2.4V – 12V (HT12E), 2.4V – 5V (HT12D) |
| Channels | 4 Data Channels |
| Control Interface | Parallel to Serial (Encoder), Serial to Parallel (Decoder) |
| Package | DIP-16 |
| Difficulty Level | Beginner/Intermediate |
