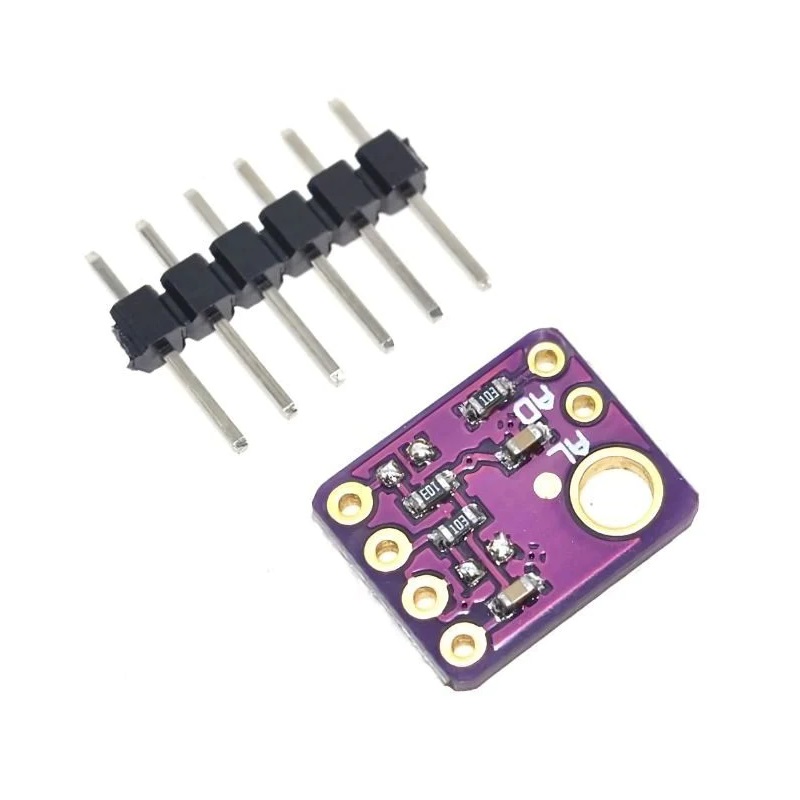

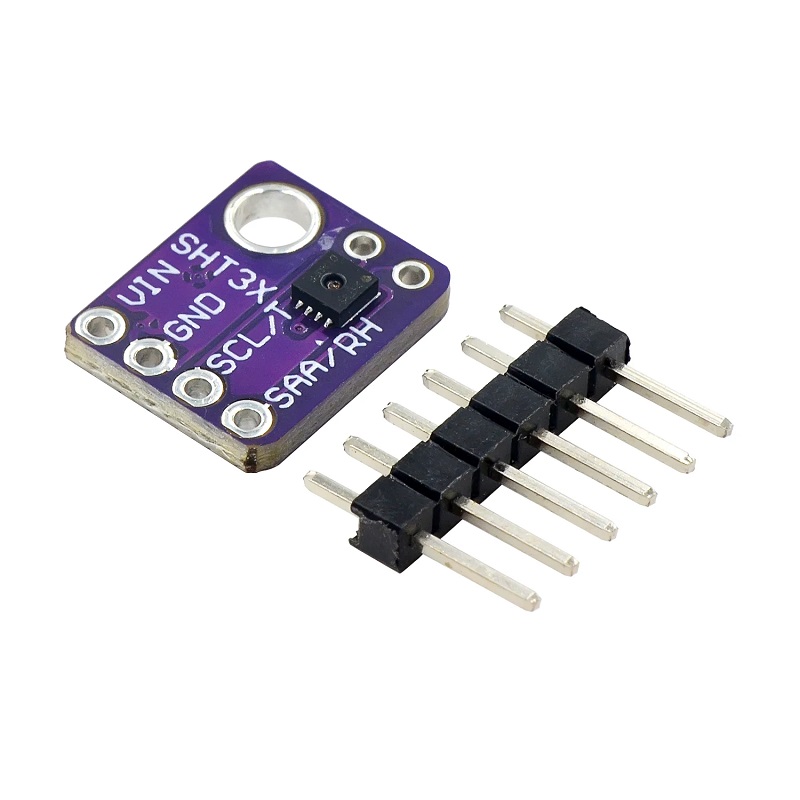

Generic GY-SHT30-D Digital Temperature and Humidity Sensor Module - I2C Interface

Name: Generic GY-SHT30-D Digital Temperature and Humidity Sensor Module - I2C Interface
Brand: Generic
SKU: SENS-3435
Price: 209.00 INR
Availability: OutOfStock

₹209.00 (Inclusive of all taxes)

Out of Stock

The Generic GY-SHT30-D is a digital temperature and humidity sensor module based on the Sensirion SHT30 chip, offering high accuracy and I2C communication for easy integration with Arduino, Raspberry Pi, ESP32, and other 3.3V/5V microcontroller platforms.

Features

High-precision SHT30 sensor with ±0.3°C temperature and ±3% RH humidity accuracy.
I2C digital interface with two user-selectable addresses and up to 1 MHz communication.
Wide operating voltage range from 2.4V to 5.5V DC for versatile system compatibility.
Individually calibrated with coefficients stored in on-chip OTP memory for reliable measurements.
Compact, low-power module ideal for space-constrained and battery-powered applications.

Out of stock

Get Notified When Available

Description

The GY-SHT30-D module integrates the Sensirion SHT30 environmental sensor, utilizing advanced CMOSens® technology for precise digital measurement of temperature and relative humidity. This technology combines the sensor element with signal conditioning, analog-to-digital conversion, and digital processing on a single chip, ensuring excellent long-term stability and minimal signal interference.

Designed for seamless integration, the module provides a standard I2C communication interface, supporting two distinct addresses to prevent bus conflicts in multi-sensor setups. Its wide supply voltage compatibility makes it suitable for both 3.3V and 5V logic systems commonly found in development boards and industrial controllers. The sensor delivers calibrated, linearized digital outputs, eliminating the need for complex signal conditioning circuits.

Key Features

Core sensor: Sensirion SHT30 with CMOSens® technology for high reliability.
High measurement accuracy: ±0.3°C for temperature and ±3% RH for humidity.
Fully calibrated digital output with on-chip OTP memory storing calibration data.
Dual user-selectable I2C addresses (0x44 and 0x45) for bus flexibility.
Wide operating voltage range from 2.4V to 5.5V DC.
Ultra-low power consumption for energy-sensitive applications.
Compact PCB module with standard 0.1" pin headers for easy prototyping.
Extended operating temperature range from -40°C to +125°C.

Applications

HVAC system monitoring and control for indoor climate regulation.
Environmental data logging in weather stations and smart agriculture setups.
Asset condition monitoring in storage facilities and server rooms.
Integrating into portable IoT devices for personal environmental sensing.
Providing compensated environmental data for industrial process control systems.

Technical Specifications

Parameter	Specification
Sensor Model	SHT30
Measurement Range (Temperature)	-40°C to +125°C
Temperature Accuracy	±0.3°C
Temperature Resolution	14 to 12 bit (programmable)
Measurement Range (Humidity)	0% to 100% RH
Humidity Accuracy	±3% RH
Humidity Resolution	12 to 8 bit (programmable)
Communication Interface	I2C
I2C Data Rate	Up to 1 MHz
Supply Voltage (VDC)	2.4 to 5.5
Response Time	> 2 s
Dimensions (L x W)	12 mm x 10 mm
Weight	5 g

Frequently Asked Questions

What is the operating voltage range for the GY-SHT30-D module?

The module operates from 2.4V to 5.5V DC, making it directly compatible with both 3.3V and 5V microcontroller systems like Arduino, ESP32, and Raspberry Pi without requiring a logic level shifter.

How do I change the I2C address of this sensor?

The SHT30 sensor on this module supports two fixed I2C addresses: 0x44 and 0x45. The address is typically selected by the module's PCB design (e.g., a solder Jumper). Consult the specific module's documentation or inspect the board for address selection pads.

What is the typical response time for a measurement?

The sensor has a response time greater than 2 seconds. For the highest accuracy readings, it is recommended to allow sufficient stabilization time after power-up and to adhere to the timing specifications in the SHT30 datasheet for measurement commands.

Is the sensor calibrated, and do I need to calibrate it myself?

Each SHT30 sensor is factory calibrated by Sensirion, and the unique calibration coefficients are stored in the chip's One-Time Programmable (OTP) memory. This ensures high accuracy out-of-the-box, eliminating the need for user calibration in most applications.
