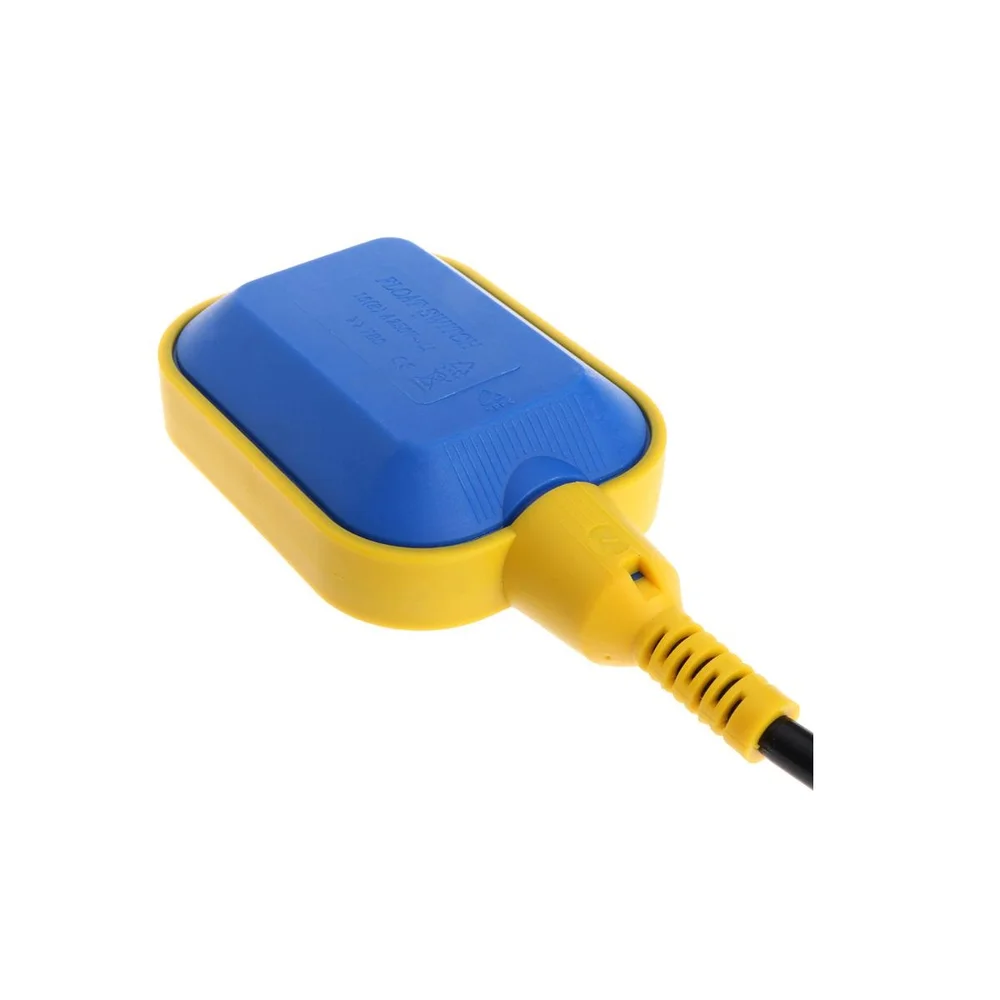

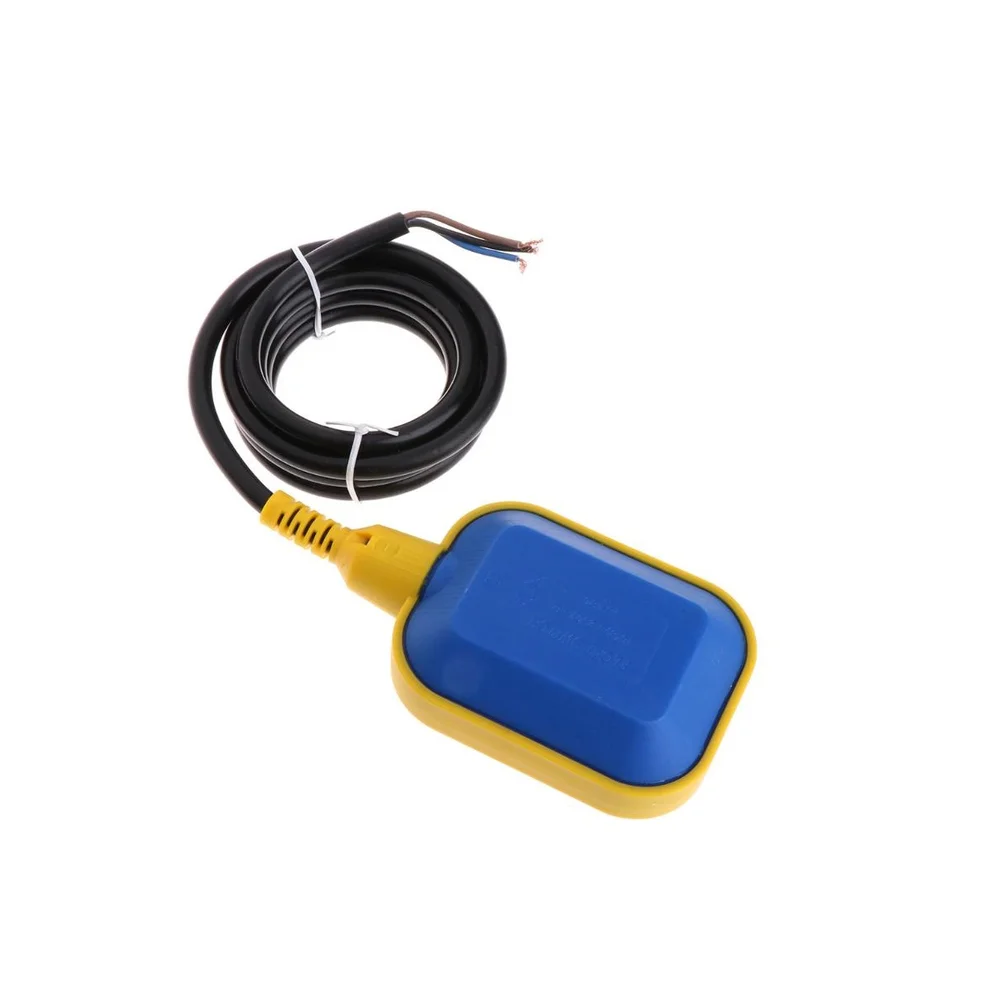

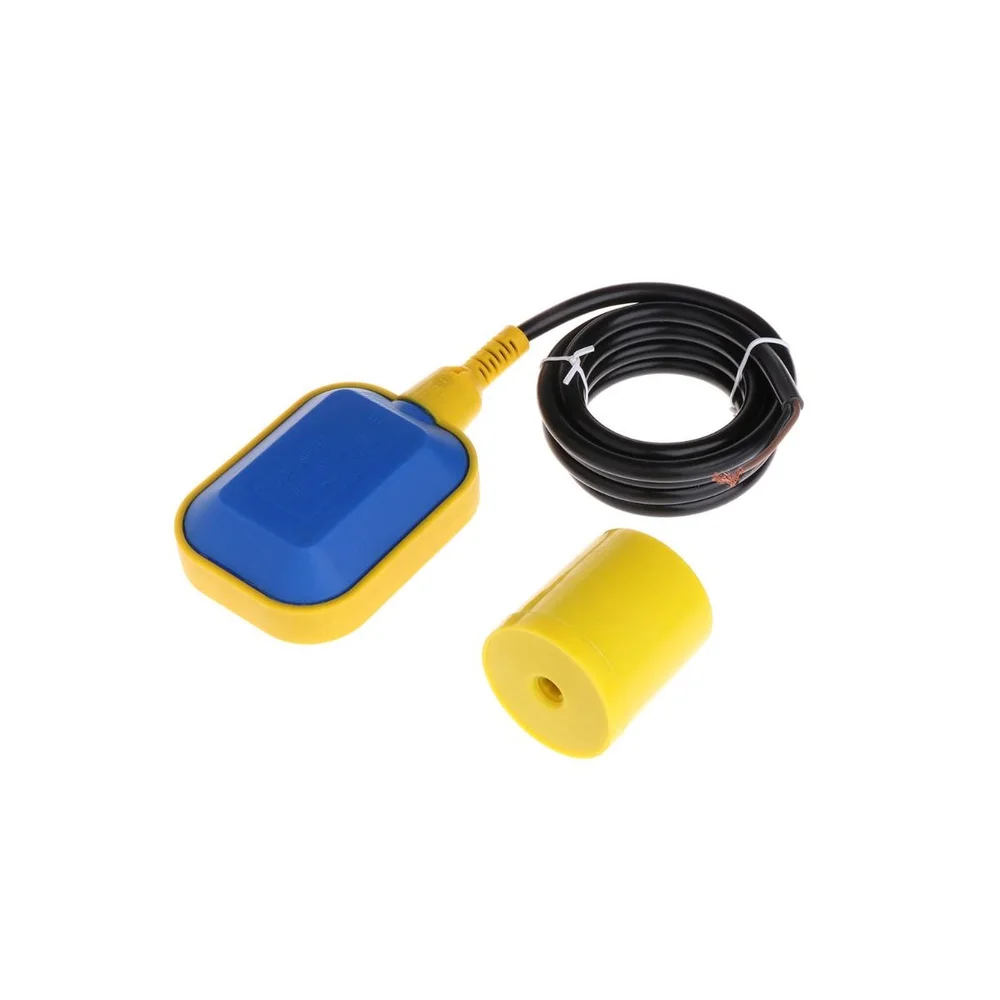

Generic Float Switch 15m Cable IP68 Waterproof - Square Float Level Sensor
This 15m cable float switch is an IP68-rated level sensor designed for industrial pump and tank control, featuring a durable ABS housing and rated for 250V AC operation with a wide 0–75°C operating temperature range.
Features
- 15-meter cable length for deep tank or sump installations
- IP68 waterproof rating for reliable submersion in water, sewage, and mild chemicals
- Rated for 250V AC, 10A (8A @ 380V) for direct pump/motor control
- Durable ABS float housing (61x55mm) with high buoyancy for stable switching
- Extended mechanical life of 500,000 cycles for long-term industrial use
Out of stock
This industrial float switch operates on a simple mechanical buoyancy principle, where the rising or falling liquid level tilts the internal sealed switch chamber to open or close an electrical circuit. The double-chamber, hermetically sealed design ensures reliable operation and prevents fluid ingress, even under the rated 0.1 MPa working pressure.
Constructed from chemical-resistant ABS, the square float is suitable for use in water, sewage, and many non-flammable oils, acids, and alkalis. It provides a direct, electrically isolated switch output for controlling pumps, motors, alarms, or solenoid valves, making it a fundamental component for tank level management and pump automation systems.
Additional Information
| Weight | 1.85 kg |
|---|---|
| Dimensions | 25 × 25 × 9 cm |
