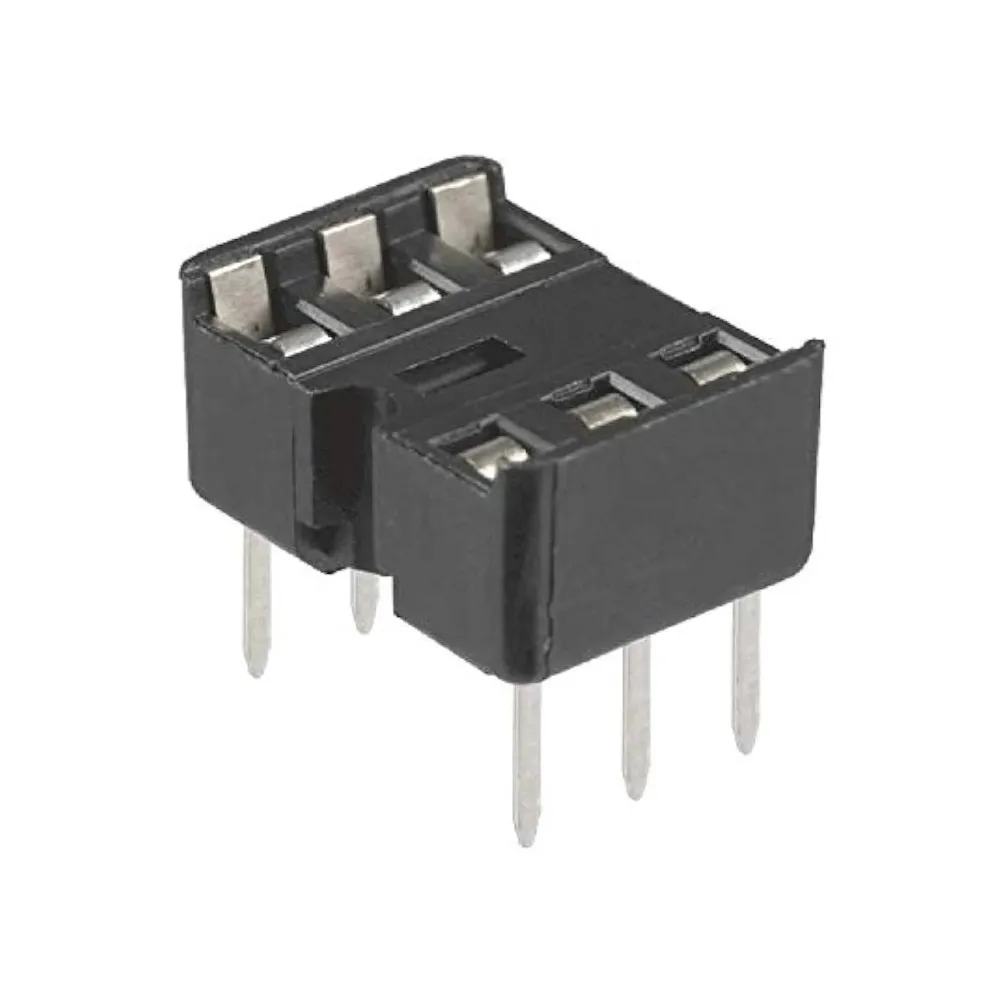

Generic 6 Pin Integrated Circuit IC Base DIP Socket – Standard (1-Pack)
₹45.00₹80.00 (price_including_tax) (-44%)
Effortlessly integrate 6-pin DIP ICs into your designs. This socket transforms tedious soldering into quick, reusable component swaps for prototyping and repairs. Built for enduring connections, ensuring circuit stability and long-term reliability.
This 6-pin DIP socket ensures reliable, solder-free IC integration, vital for rapid prototyping and circuit development efficiency.
Facilitates rapid circuit iteration by enabling quick, tool-free IC insertion and removal.
Shields delicate integrated circuits from damaging soldering heat during assembly and rework.
Designed for standard 6-pin DIP ICs, ensuring broad use across countless electronic projects.
The Engineering Behind Generic 6-Pin DIP IC Sockets
This 6-pin Dual In-line Package (DIP) socket serves as a foundational component in electronics, providing a secure, non-permanent interface for integrated circuits. It eliminates the need for direct soldering of sensitive ICs to PCBs, protecting them from heat damage during assembly and enabling easy replacement or upgrade. The socket’s architecture ensures precise alignment and robust electrical contact with standard 0.1-inch (2.54mm) pitch IC pins.
Constructed from durable insulating plastic, typically PBT or PPS, and featuring high-quality tin-plated or gold-plated contacts, these sockets are engineered for longevity and repeated insertion cycles. Their robust design makes them indispensable for educational projects, rapid prototyping, and field servicing, where ICs might need frequent swapping or protection from soldering stresses.
Enhanced Prototyping Flexibility
The primary technical advantage of a DIP socket lies in its ability to facilitate solder-free IC installation. This significantly reduces the risk associated with soldering heat on delicate ICs and allows for quick component testing, debugging, and replacement without desoldering, accelerating the development cycle for engineers and hobbyists.
Standardized 0.1-inch Pin Pitch
Adhering to the industry-standard 0.1-inch (2.54mm) pin pitch, this 6-pin socket offers universal compatibility with a vast range of through-hole DIP-packaged integrated circuits. This standardization simplifies PCB layout and component sourcing, ensuring seamless integration into existing and new circuit board designs, minimizing compatibility concerns.
Optimized for Performance & Integration
- Pin Count: 6-Pins
- Package Type: DIP (Dual In-line Package)
- Pin Pitch: 2.54mm (0.1 inch)
- Mounting Type: Through-hole
- Contact Material: Tin-plated Copper Alloy
- Insulator Material: PBT (Polybutylene Terephthalate)
Features & Benefits
- 6-Pin DIP Configuration: Perfectly matches standard 6-pin ICs for universal application and broad compatibility.
- Through-Hole Mounting: Ensures secure and stable integration onto perfboards, breadboards, and custom PCBs.
- Solder-Free IC Insertion: Protects sensitive ICs from thermal stress, enabling effortless component replacement and testing.
- Durable Construction: High-quality plastic insulator and robust contacts ensure long-term reliability and repeated use.
- Standard 2.54mm Pitch: Guarantees compatibility with industry-standard prototyping practices and existing designs.
- Enhanced Debugging: Allows quick swap-out of ICs during development, significantly speeding up fault isolation.
Pro-Grade Advantages
- Facilitates rapid IC testing and development cycles.
- Minimizes risk of thermal damage to sensitive components.
- Enables easy IC replacement without desoldering.
- Ensures robust and reliable electrical connections.
Technical Considerations
- Adds minimal height to the overall circuit profile.
- Can potentially introduce slight signal path impedance at high frequencies.
What types of ICs are compatible with this 6-pin DIP socket?
This socket is designed for any integrated circuit packaged in a 6-pin Dual In-line Package (DIP) with a standard 2.54mm (0.1 inch) pin pitch, commonly found in small logic gates or specialized sensors.
Is soldering required to install this DIP socket onto a PCB?
Yes, the 6-pin DIP socket itself is a through-hole component that requires soldering to a Printed Circuit Board (PCB) to establish permanent electrical connections.
What is the primary benefit of using an IC socket instead of direct soldering?
The main benefit is protecting the IC from soldering heat, allowing for easy replacement or upgrades without desoldering, and simplifying debugging processes by facilitating quick component swaps.
What is the typical operating temperature range for a standard DIP socket?
Generic DIP sockets typically operate reliably within a temperature range of -40°C to +105°C, depending on the specific plastic and contact materials used in their construction.
How many times can an IC be inserted and removed from this socket?
While varying by specific material quality, most quality DIP sockets are rated for at least 50-100 insertion/extraction cycles before contact integrity might degrade, making them durable for prototyping.
| Specification | Value |
|---|---|
| Pin Configuration | 6 (3×2) |
| Pin Pitch | 2.54mm (0.1″) |
| Mounting Type | Through-Hole |
| Socket Type | DIP (Dual In-line Package) |
| Contact Plating | Tin-Plated |
| Insulator Material | PBT (Polybutylene Terephthalate) |
| Operating Temperature | -40°C to +105°C |
| Dielectric Withstanding Voltage | 1000V AC |
| Insulation Resistance | >5000 MΩ |
| Contact Resistance | <20 mΩ |
| Max Current Per Pin | 1A |
Additional information
| Brand | Generic |
|---|---|
| Technology | Interconnect |
| Value | 6-Pin |
| Package | DIP |
| Control Interface | Direct Insertion |
