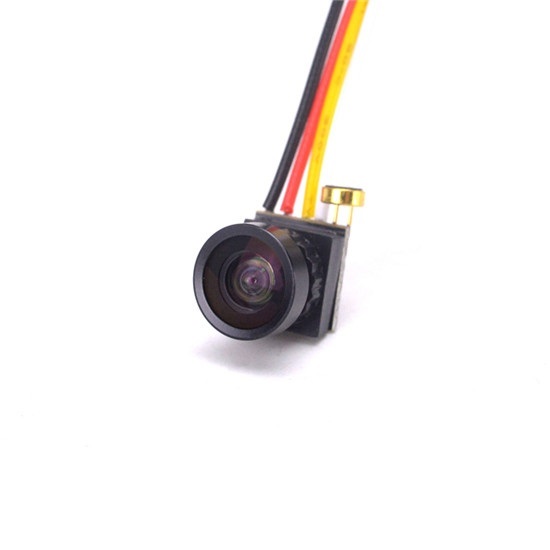

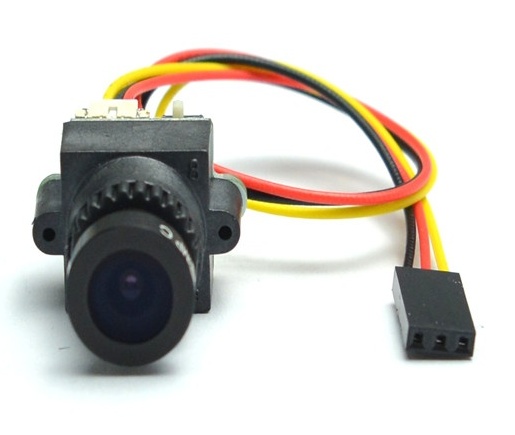

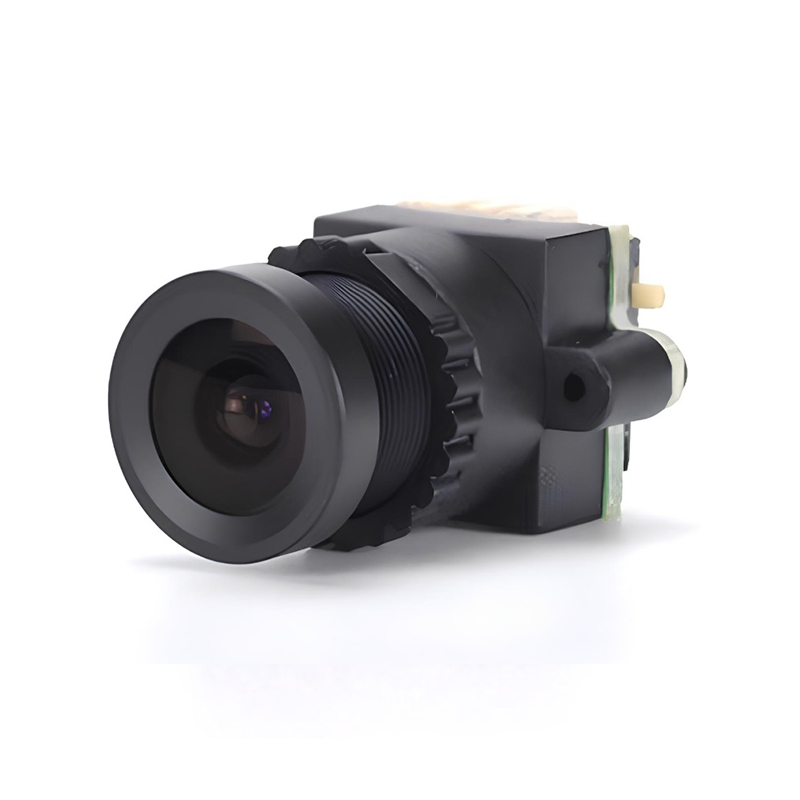

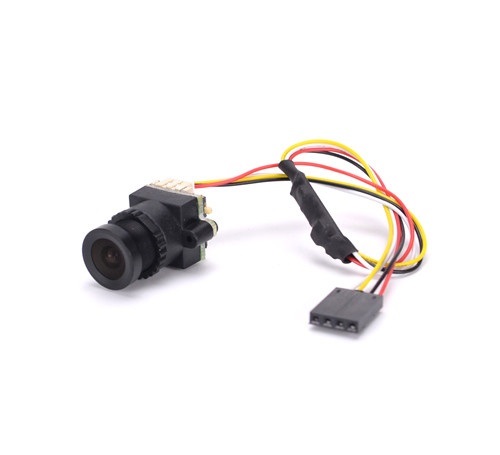

Generic 408 AHD Camera 1000TVL 90 Degree CMOS FPV Camera with Audio
The Generic 408 AHD Camera is a 1000TVL CMOS FPV camera featuring a 90-degree field of view and integrated audio output, designed for operation on 4.5-6V DC systems. Its compact, IP66-rated enclosure makes it suitable for FPV drones, robotics, and portable surveillance applications.
Features
- 1000TVL resolution CMOS sensor (OV8336) for detailed video capture.
- Wide 90-degree field of view with a fixed 2.8mm IR-coated lens.
- Integrated audio output channel for capturing ambient sound.
- IP66 ingress protection rating for resistance against dust and water jets.
- Low power consumption, operating from 4.5V to 6V DC.
Out of stock

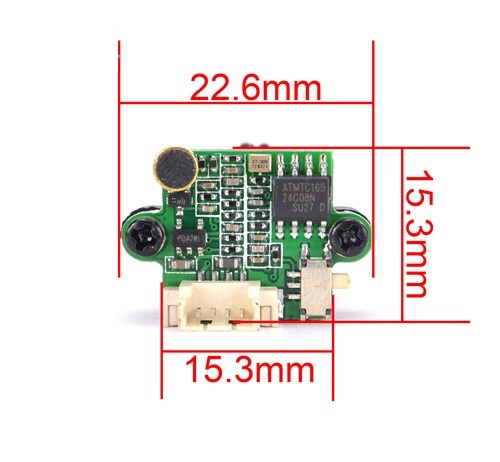

This 1000TVL CMOS camera utilizes a 1/5-inch OV8336 image sensor paired with a 2.8mm lens to deliver a 90-degree field of view, suitable for FPV piloting and general monitoring. The camera outputs a standard composite video signal compatible with most analog video receivers and displays, supporting both PAL and NTSC TV systems. Its compact dimensions of 30x23x16mm and lightweight design facilitate easy integration into tight spaces on multirotor frames or robotic platforms.
Engineered with an IP66-rated enclosure, the camera is protected against dust ingress and powerful water jets, enhancing its durability in varied environmental conditions. The integrated audio output allows for simultaneous capture of video and sound, expanding its utility beyond visual telemetry. Operating within a 0 to 40°C temperature range and consuming between 80-120mA, it is a reliable, low-power vision solution for 5V-centric drone and DIY electronics projects.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 3 × 2.3 × 1.6 cm |
