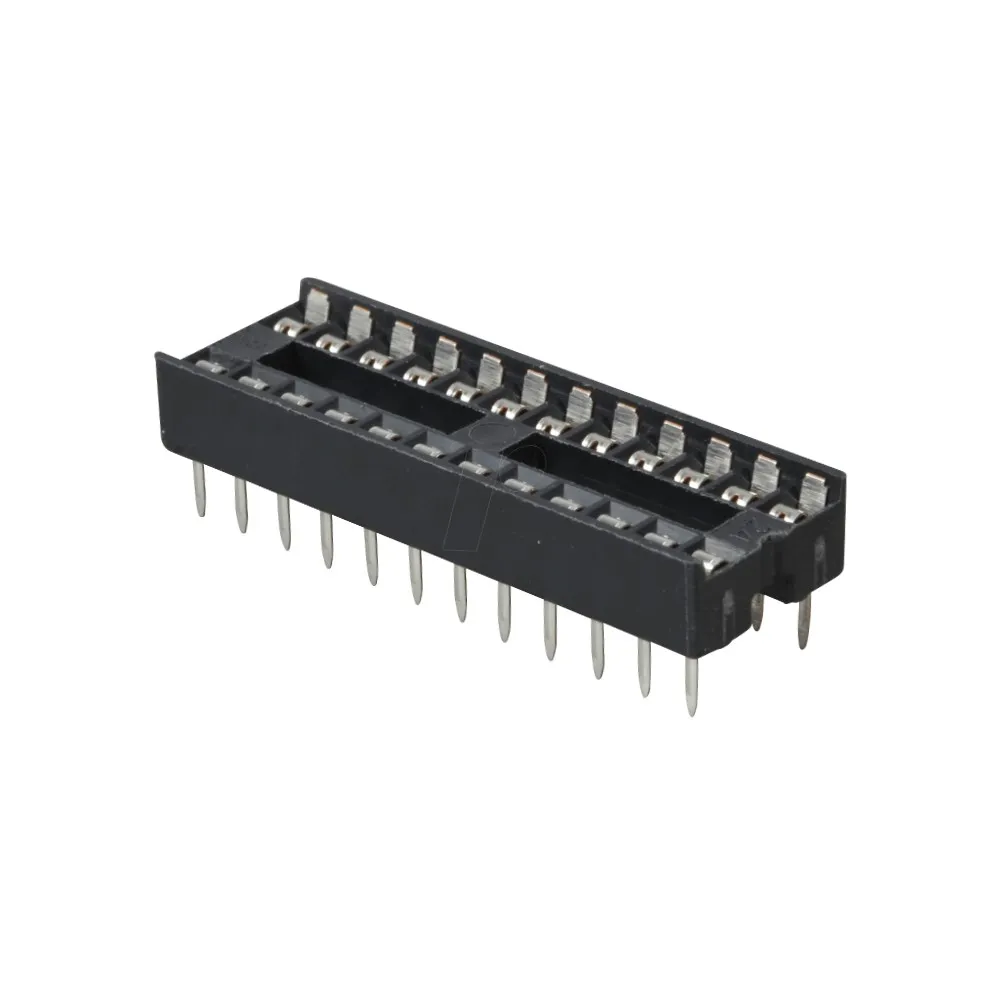

Generic 24 Pin Integrated Circuit (IC) Base DIP Socket – Through-Hole Mount for PCB | Secure IC Interconnect | Robust Design

The Engineering Behind 24 Pin DIP IC Socket

The 24 Pin Dual In-line Package (DIP) IC Socket provides a crucial interface for mounting and interchanging integrated circuits on Printed Circuit Boards (PCBs). Its fundamental architecture comprises a rigid thermoplastic body with precisely spaced conductive contacts designed to receive the leads of a 24-pin DIP IC. This mechanical and electrical interlink facilitates non-permanent integration, safeguarding delicate ICs from soldering heat and enabling quick prototyping and component replacement in complex electronic designs.

Constructed from high-grade PBT (Polybutylene Terephthalate) or equivalent insulating material, the socket features tin-plated brass or beryllium copper contacts, ensuring excellent conductivity and corrosion resistance. The robust design offers superior mechanical stability, crucial for repeated insertion and extraction cycles in development and test environments. Its pedagogical value lies in teaching fundamental circuit assembly, troubleshooting, and the modularity of electronic components.

Removable IC Integration

The primary technical advantage of a DIP socket is its ability to allow integrated circuits to be inserted and removed from a circuit board without the need for soldering and desoldering. This engineering choice significantly reduces the risk of thermal damage to sensitive ICs during assembly and repair. For developers, it streamlines the debugging process, facilitates rapid component swapping for different functionalities, and extends the lifespan of both the IC and the PCB by preventing repeated heat exposure.

Standardized Pitch & Compatibility

Adhering to the industry-standard 0.1-inch (2.54mm) pin pitch, this 24-pin DIP socket ensures universal compatibility with a vast array of common 24-pin DIP-packaged ICs, including microcontrollers, memory chips, and logic gates. This standardization eliminates the traditional pain points associated with custom footprints or proprietary connectors, offering seamless integration into existing breadboard layouts and standard PCB designs. It guarantees immediate drop-in functionality and simplifies inventory management for electronic components.

Optimized for Performance & Integration

• Pin Count: 24
• Package Type: Dual In-line Package (DIP)
• Pin Pitch: 2.54 mm (0.1 inch)
• Mounting Type: Through-Hole
• Contact Material: Tin-plated Brass/Beryllium Copper
• Insulator Material: PBT or equivalent
• Operating Temperature: -55°C to +105°C (Typical)
• Contact Resistance: < 20mΩ (Typical)

Features & Benefits

• 24 Pin Configuration: Ensures broad compatibility with standard 24-pin DIP integrated circuits for diverse projects.
• Through-Hole Mounting: Provides a robust and permanent mechanical connection to PCBs, ideal for prototyping and production.
• Easy IC Insertion/Removal: Facilitates rapid component swapping, debugging, and reduces IC damage during soldering processes.
• Durable Construction: Manufactured with high-quality materials for excellent electrical conductivity and prolonged operational lifespan.
• Standard 0.1″ Pin Pitch: Guarantees seamless integration with breadboards, perfboards, and standard PCB layouts.
• Enhanced Prototyping Speed: Accelerates development cycles by allowing quick testing and iteration of IC-based designs.
