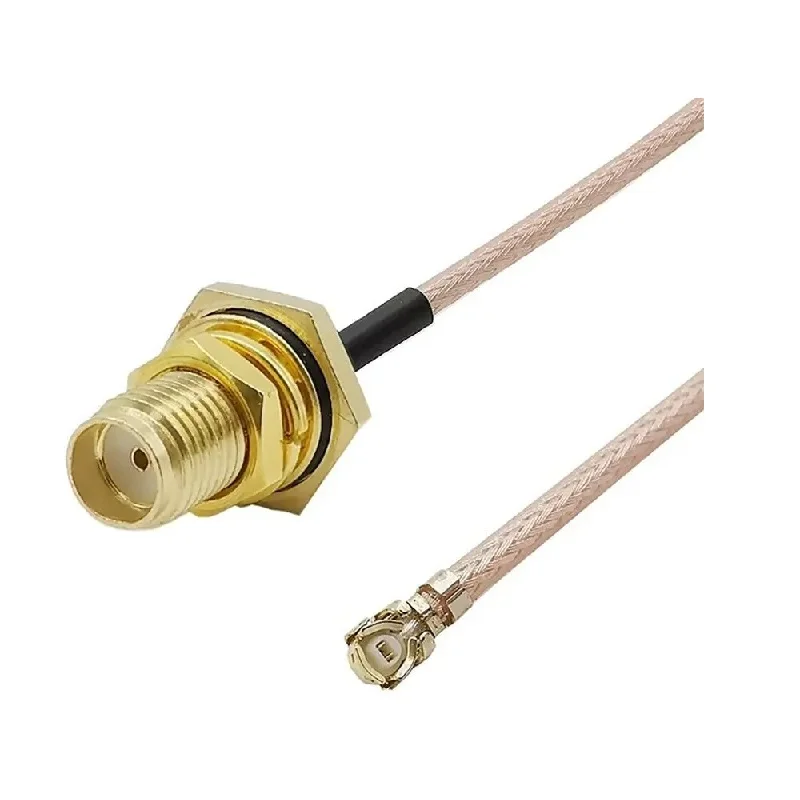

Generic 15cm IPEX1 to SMA Female RF Cable RG178

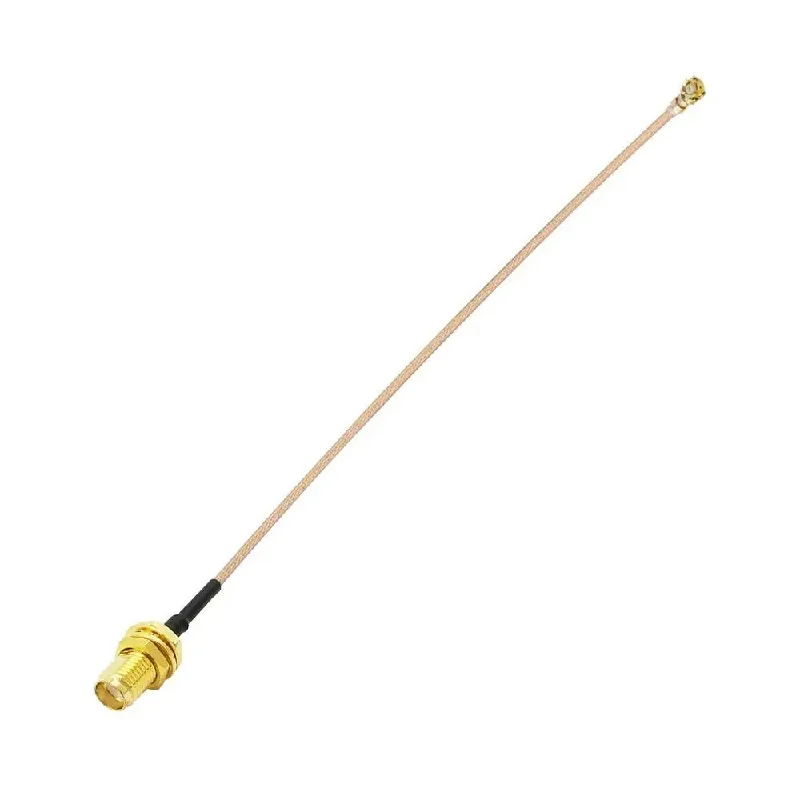

Generic 15cm IPEX1 to SMA Female RF Cable RG178 - Image 2

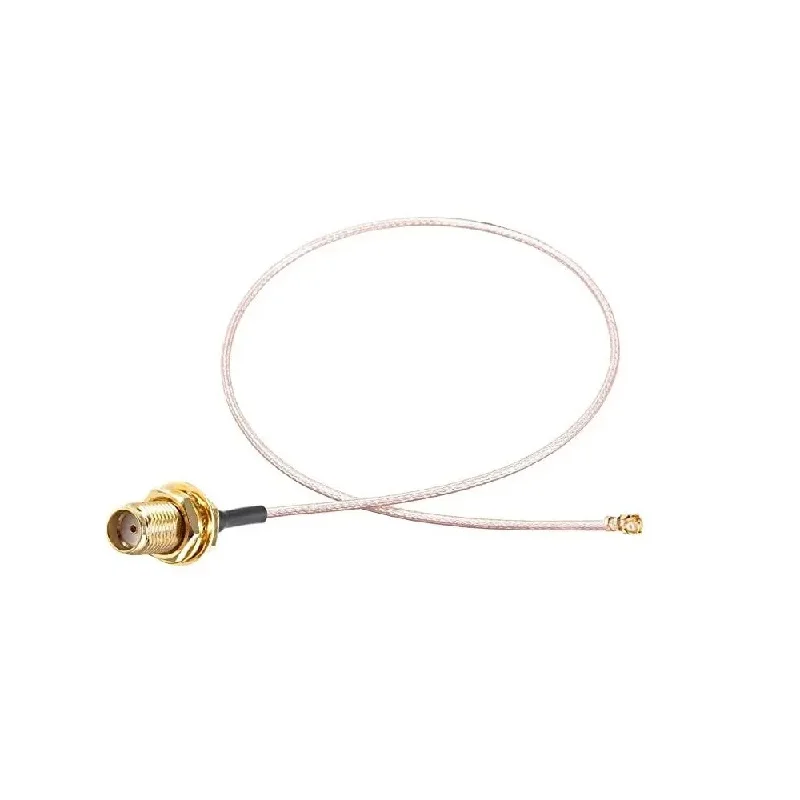

Generic 15cm IPEX1 to SMA Female RF Cable RG178 - Image 3
SKU: IOWC-0801
📋 GST Invoice Available

Generic 15cm IPEX1 to SMA Female RF Cable RG178

₹107.00 (Inclusive of all taxes)
Out of Stock

This 15cm RG178 cable provides a reliable interface between a PCB-mounted u.FL/IPEX1 connector and a panel-mountable SMA female antenna port, ensuring low signal loss for Wi-Fi, Bluetooth, GPS, and cellular applications.

Features

  • Provides a robust interface from PCB-mounted u.FL/IPEX1 ports to external SMA female antennas.
  • 15cm RG178 coaxial cable offers flexibility for moderate-distance connections within enclosures.
  • Low-loss cable construction maintains signal integrity for Wi-Fi, Bluetooth, GPS, and 4G/LTE frequencies.
  • SMA female connector is panel-mountable, ideal for routing antenna signals to an external case.
  • 11mm connector length and durable build ensure reliable, strain-relieved connections.

Out of stock

Description

This RF interface cable is engineered to bridge the gap between compact, board-level u.FL (IPEX1) connectors and standard SMA antenna ports. Utilizing RG178 coaxial cable, it provides a balanced combination of flexibility and low signal attenuation, making it suitable for a wide range of wireless communication frequencies.

The cable’s primary function is to extend an internal RF signal to an external, panel-mounted antenna, improving signal reception and transmission range for modules like Wi-Fi/Bluetooth SoCs, GPS receivers, and cellular modems. The 15cm length offers sufficient reach for most enclosure layouts while minimizing potential signal loss.

Key Features

  • Interface Conversion: Converts a compact u.FL/IPEX1 male connector to a standard SMA female port.
  • Low-Loss Coaxial Cable: RG178 cable type provides good shielding and minimal signal attenuation for RF applications.
  • Panel-Mountable Design: The SMA female connector can be secured to an enclosure panel for a professional, external antenna setup.
  • Durable Construction: Features robust connectors and cable to withstand repeated mating cycles and strain.
  • Broad Frequency Compatibility: Suitable for common IoT and wireless communication bands including 2.4GHz, 5GHz, GPS L1, and cellular frequencies.

Applications

  • Extending internal antenna ports on ESP32, Raspberry Pi, or cellular development boards to external antennas.
  • Connecting GPS or 4G LTE module u.FL ports to roof-mount or magnetic mount antennas with SMA connectors.
  • Improving Wi-Fi/Bluetooth range in enclosed IoT devices by routing signal to an external panel antenna.
  • General-purpose RF interconnection in prototyping, testing, and final product assembly for wireless devices.

Technical Specifications

Cable TypeRG178 Coaxial
Cable Length15 cm
Connector Au.FL / IPEX1 Male
Connector BSMA Female
Connector Length11 mm

Frequently Asked Questions

What devices is this u.FL to SMA cable compatible with?

This cable is compatible with any wireless module or development board featuring a u.FL (IPEX1) antenna connector, such as ESP32/ESP8266 Wi-Fi boards, NRF52 BLE modules, SIMCom cellular modems (SIM800, SIM7000), and u-blox GPS receivers. It allows you to connect their internal RF port to an external antenna with an SMA male connector for improved range and signal strength.

How do I properly connect and secure this cable to my device?

First, carefully mate the u.FL/IPEX1 connector to the corresponding port on your PCB, ensuring a straight, firm press until it clicks. Avoid pulling on the cable. Route the cable to your enclosure panel, thread the SMA female connector through a prepared hole, and secure it with the included nut (if provided) or a separate SMA panel mount kit. This strain-relieves the connection and provides a stable external antenna interface.

What is the maximum frequency or signal loss for this RG178 cable?

RG178 cable is generally suitable for frequencies up to 6 GHz with acceptable loss. For a 15cm length at 2.4 GHz, expect a signal loss of approximately 0.5 to 1 dB. This minimal loss makes it effective for most IoT applications including Wi-Fi, Bluetooth, and GPS, but for very high-frequency or long-distance critical links, a lower-loss cable type like LMR-100 might be considered.

Package Includes

  • 1 x 15cm IPEX1 to SMA Female Connector Cable (RG178)

Additional Information

Weight 0.005 kg
Dimensions 11 × 8 × 0.5 cm
