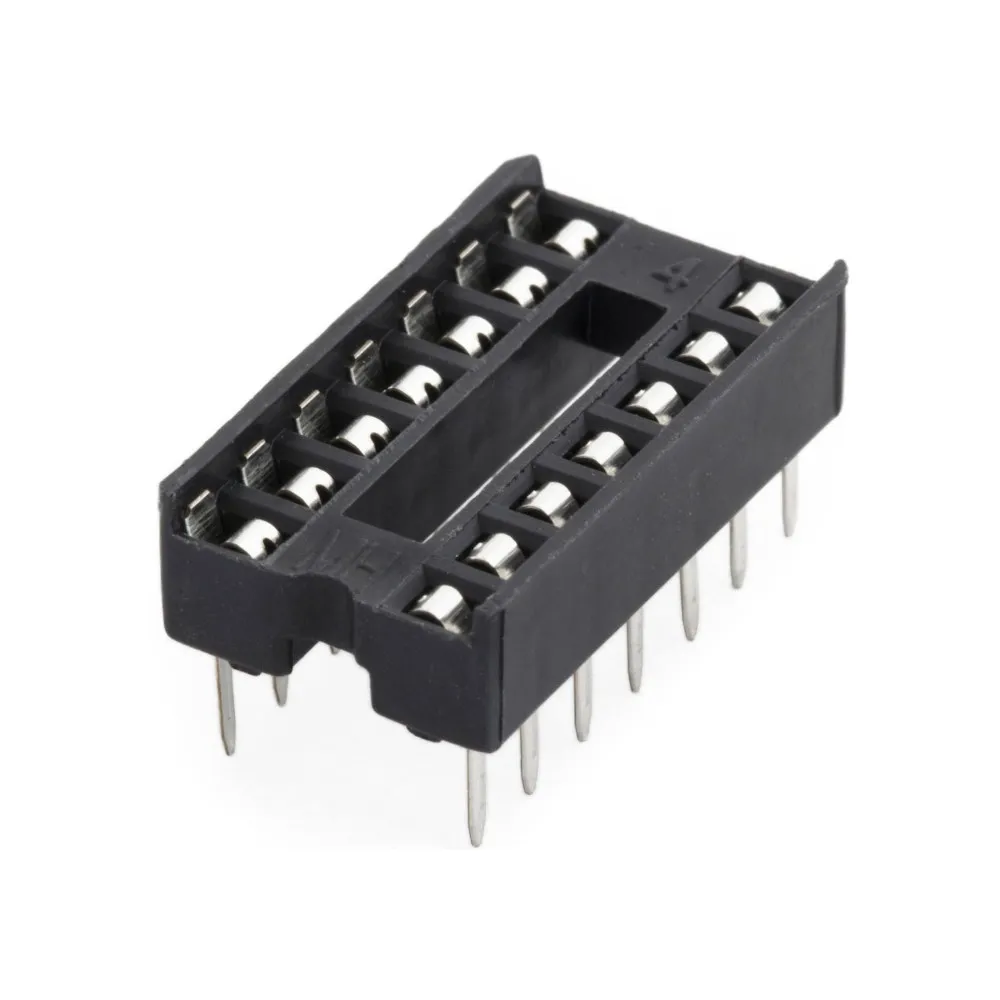

Name: Generic 14 Pin DIP IC Socket | Secure Integrated Circuit Mounting | Breadboard Ready
Brand: Generic
SKU: OL-GEN-14PINDS
Price: 45.00 INR
Availability: InStock

Effortless IC Swapping

Facilitates quick replacement of integrated circuits, ideal for development and iterative design.

Enhanced Circuit Reliability

Ensures robust electrical contact, preventing intermittent failures in critical applications reliably.

Protects Sensitive ICs

Shields delicate components from soldering heat, extending lifespan and reducing replacement costs.

The Engineering Behind Generic 14 Pin DIP IC Sockets

The 14 Pin DIP (Dual In-line Package) IC Socket is a fundamental component in electronics prototyping and permanent circuit construction, designed to facilitate the secure placement and easy replacement of 14-pin integrated circuits. Its primary hardware application lies in preventing thermal damage to sensitive ICs during soldering, allowing for modular circuit design and rapid iteration. The socket itself acts as an intermediary, providing contact points for the IC’s pins, which are then connected to the PCB via the socket’s solderable pins.

Constructed from high-quality molded plastic and precision-machined contacts, these sockets ensure excellent mechanical stability and electrical conductivity. The robust build quality guarantees repeated insertion and removal cycles without compromising signal integrity, making them ideal for both educational environments and professional development benches. Their standardized footprint aligns with common prototyping boards and industrial PCBs, simplifying integration into diverse projects.

Reliable Connection Interface

The socket’s internal design incorporates resilient metal contacts that securely grip each pin of the inserted IC, minimizing intermittent connections and signal degradation. This critical feature is paramount in applications where signal fidelity and power delivery consistency are non-negotiable, providing a stable platform for sensitive digital and analog circuitry.

Breadboard & PCB Compatibility

Engineered with a standard 2.54mm (0.1 inch) pin pitch, this DIP socket seamlessly integrates with standard breadboards for rapid experimentation and fits perfectly into universal prototyping PCBs. This structural choice resolves traditional operational real-world pain points by eliminating the need for complex custom adaptations, accelerating design cycles and reducing development costs.

Optimized for Performance & Integration

Pin Count: 14
Package Type: DIP (Dual In-line Package)
Pin Pitch: 2.54mm (0.1 inch)
Mounting Type: Through-hole
Contact Material: High-conductivity metal alloy
Insulation Material: Durable plastic polymer

Features & Benefits

14-Pin Configuration: Perfectly accommodates standard 14-pin DIP integrated circuits for broad compatibility.
Through-Hole Mounting: Ensures a strong, permanent mechanical and electrical connection to PCBs.
High-Quality Contacts: Provides reliable signal transmission and consistent power delivery to sensitive ICs.
Durable Construction: Withstands multiple insertion/removal cycles, extending the lifespan of your projects.
Standard 2.54mm Pitch: Easily integrates with breadboards and perfboards for quick prototyping.
IC Protection: Shields delicate IC pins from soldering heat, making component replacement safer and simpler.

Pro-Grade Advantages

Facilitates modular circuit design and rapid IC prototyping.
Protects ICs from thermal stress during soldering and desoldering.
Offers robust and repeatable electrical connections for consistent performance.
Cost-effective solution for component testing and interchangeability.

Technical Considerations

Adds minimal height to the overall circuit profile.
Requires precise through-hole soldering for secure PCB mounting.

What is the primary purpose of a 14 Pin DIP IC Socket?

Its primary purpose is to provide a secure, removable interface for 14-pin Integrated Circuits (ICs), facilitating easy insertion, removal, and replacement without soldering the IC directly to the PCB. This protects sensitive ICs from soldering heat and allows for modular circuit design.

Is this socket compatible with standard breadboards?

Yes, this 14 Pin DIP IC Socket is designed with a standard 2.54mm (0.1 inch) pin pitch, making it fully compatible with conventional breadboards for rapid prototyping and testing.

What materials are typically used in the construction of a DIP socket?

DIP sockets are generally constructed from high-quality molded plastic for insulation and a durable, high-conductivity metal alloy (often tin-plated copper) for the contact pins, ensuring both mechanical integrity and reliable electrical performance.

Can this socket be used for both digital and analog ICs?

Absolutely. The 14 Pin DIP IC Socket provides a universal interface suitable for any 14-pin Dual In-line Package IC, whether it’s a digital logic gate, an operational amplifier, or another analog integrated circuit.

How does using a socket benefit the longevity of an integrated circuit?

Using a socket significantly extends the longevity of an IC by preventing direct exposure to soldering heat, which can damage sensitive internal components. It also allows for easy replacement if the IC fails, avoiding the need to desolder and potentially damage the PCB.

Specification	Value
Pin Configuration	14 Pins
Package Type	DIP (Dual In-line Package)
Pin Pitch	2.54mm (0.1″)
Mounting Style	Through-Hole (THT)
Contact Type	Machined or Stamped
Material (Insulator)	PBT or similar engineering plastic
Material (Contacts)	Brass with Tin Plating
Operating Temperature	-55°C to +105°C (typical)
