Description

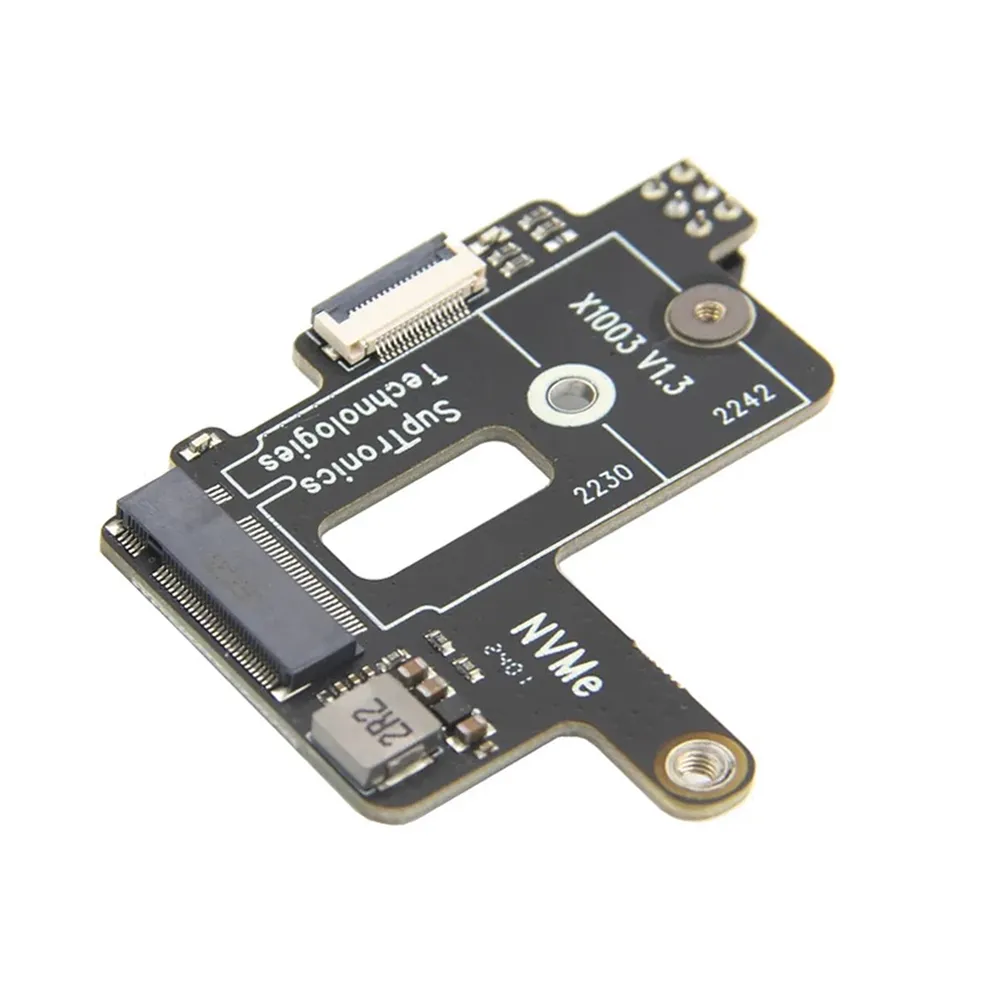

The Geekworm X1003 is a purpose-built PCIe to NVMe expansion board, meticulously engineered for the Raspberry Pi 5. Its ultra-compact design allows for top-side installation, making it an ideal choice for integrating high-speed M.2 NVMe storage without significantly increasing the footprint. This board is specifically designed to accommodate 2230 and 2242 specification NVMe SSDs, ensuring compatibility with a range of popular drives.
A key advantage of the X1003 is its seamless integration with the Raspberry Pi 5 ecosystem. It is fully compatible with the official Raspberry Pi 5 Active Cooler and the official ABS case, allowing for comprehensive thermal management and protection. Users can leverage the PCIe Gen 2 x1 interface to achieve significantly faster boot times and data transfer rates compared to traditional microSD cards or USB storage. The board also includes an M.2 disk activity LED for visual status indication and supports NVMe boot directly from the Raspberry Pi 5 operating system.
Installation of the X1003 is straightforward, requiring the removal of the fan layer from the top of the enclosure to fit the board. It ensures reliable operation through its dedicated FPC power supply and an option for additional GPIO power. Please note that this board is exclusively for M.2 NVMe SSDs and does not support M.2 SATA SSDs or other non-NVMe devices.
