SKU: DRFC-2162
📋 GST Invoice Available

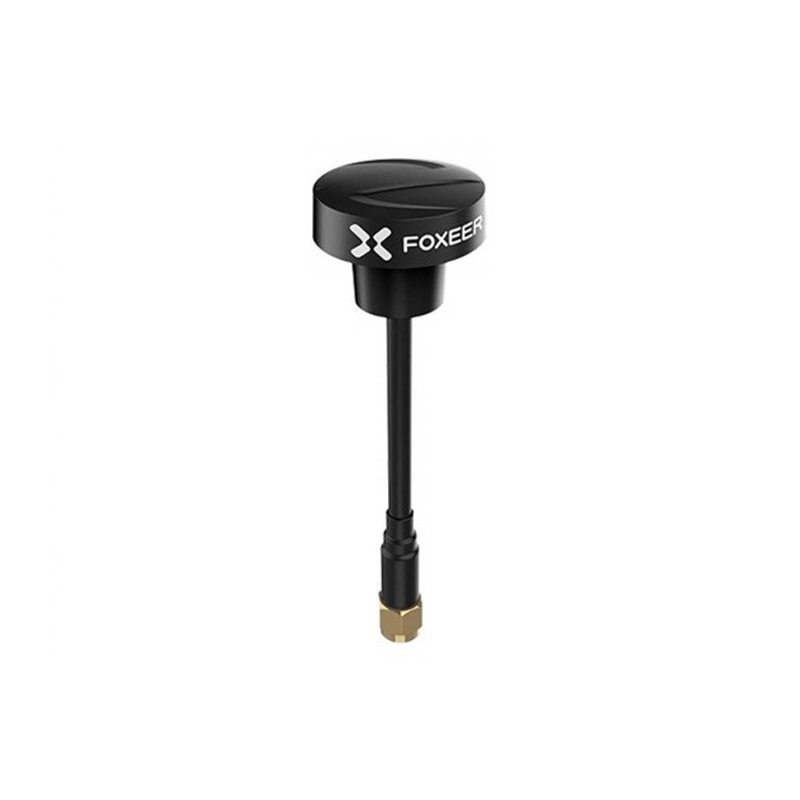

Foxeer Pagoda Pro SMA FPV Antenna - Black

₹1,009.00 (Inclusive of all taxes)
Out of Stock

The Foxeer Pagoda Pro is a 5.8GHz RHCP omnidirectional FPV antenna designed for reliable signal reception and robust performance in racing and freestyle drones. Its high-efficiency design ensures stable video links with popular analog VTX systems.

Features

  • 5.8GHz RHCP (Right Hand Circular Polarization) omnidirectional antenna for stable FPV video reception.
  • 3dBi gain with a wide 5.5-6GHz bandwidth and high 98% radiation efficiency.
  • Durable PC+ABS construction with a compact 86mm length and 11.5g weight for minimal drag.
  • Standard SMA connector for direct compatibility with most VTX and goggles.
  • Axial ratio close to 1 for optimized polarization matching and reduced multipath interference.

Out of stock

Description

The Foxeer Pagoda Pro antenna utilizes a refined pagoda-style radiator design to deliver a consistent 360-degree radiation pattern, crucial for maintaining video signal integrity during aggressive maneuvers and in cluttered RF environments. Its Right Hand Circular Polarization effectively combats signal reflections and multipath interference common in urban or wooded flight areas.

Engineered with a robust PC+ABS composite shell, the antenna is built to withstand the physical impacts and vibrations typical of FPV racing. The lightweight and aerodynamic profile minimizes air resistance, preserving flight performance without sacrificing durability or signal clarity.

Key Features

  • Optimized Pagoda Design: Multi-layer stacked radiator provides a stable omnidirectional pattern and excellent axial ratio.
  • High-Efficiency Performance: 98% radiation efficiency and SWR below 1.22 at center frequency ensure maximum power transfer and minimal signal loss.
  • Ruggedized Construction: PC+ABS material blend offers high impact resistance and UV stability for long-term outdoor use.
  • Precision Tuned: Center frequency tuned to 5.8GHz with a broad operational bandwidth covering all standard analog FPV channels.
  • Lightweight Integration: Weighing only 11.5 grams, it adds negligible mass to micro and full-size drone builds.

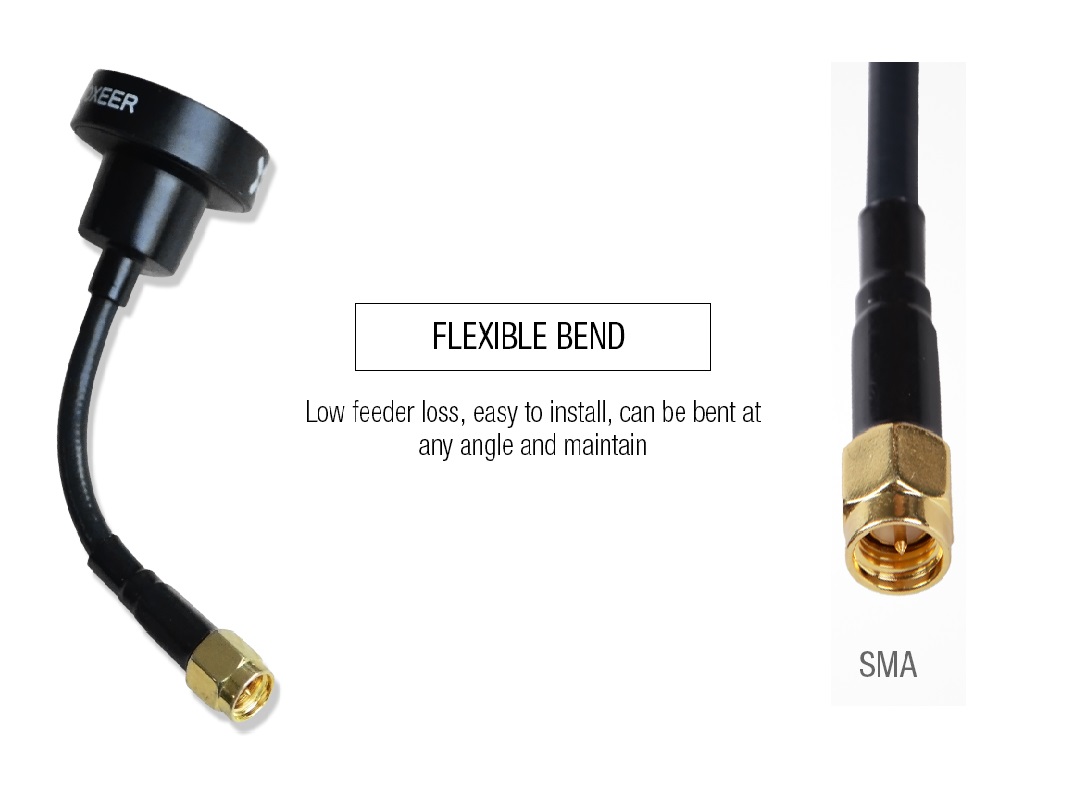

  • Standardized Connector: SMA female connector ensures broad compatibility with VTX outputs and goggle inputs.

Applications

  • 5-inch and 7-inch FPV racing drones requiring reliable, low-latency video links.
  • Freestyle and cinematic drone builds flying in areas with potential signal reflection and interference.
  • Micro and Whoop-class drones where a lightweight, durable antenna is critical for performance.
  • Ground station and FPV goggle reception antennas for improved signal diversity.

Technical Specifications

Connector TypeSMA
Center Frequency5.8 GHz
Gain3 dBi
Bandwidth5.5 - 6 GHz
PolarizationRHCP (Right Hand Circular)
Axial RatioClose to 1
Radiation Efficiency98%
VSWR<1.22 @ 5.8GHz
Body MaterialPC+ABS
Length86 mm
Overall Dimensions17 x 23 mm (Diameter x Height)
Weight11.5 g

Frequently Asked Questions

Is this antenna compatible with my 5.8GHz analog video transmitter?

Yes, the Foxeer Pagoda Pro is designed for the 5.8GHz band (5.5-6GHz) and uses a standard SMA connector, making it directly compatible with the vast majority of analog FPV VTXs and goggles that support SMA connections. Ensure your device's connector gender matches (typically SMA female on the antenna).

What are the advantages of an RHCP antenna over a linear one?

RHCP (Right Hand Circular Polarization) antennas are highly effective at rejecting multipath interference caused by signal reflections off surfaces like buildings or trees. When paired with another RHCP antenna (on both VTX and goggles), they provide a more stable and reliable video link with less 'sparkles' or breakup compared to linear polarization, especially in complex environments.

How durable is this antenna for FPV racing crashes?

The Pagoda Pro is built with a robust PC+ABS composite shell, offering high impact resistance and flexibility. This construction is specifically chosen to withstand the bumps, tumbles, and direct hits common in FPV racing and freestyle, making it far more durable than antennas with exposed or fragile radiating elements.

Package Includes

  • 1 x Foxeer Pagoda Pro SMA FPV Antenna (Black)

Additional Information

Weight 0.018 kg
Dimensions 3 × 0.9 × 3 cm
