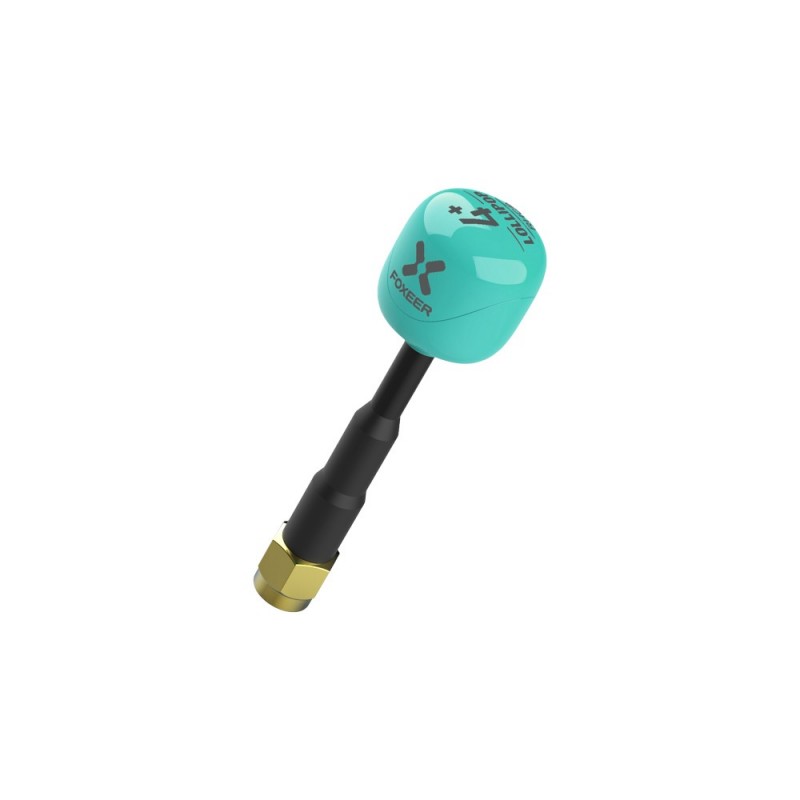

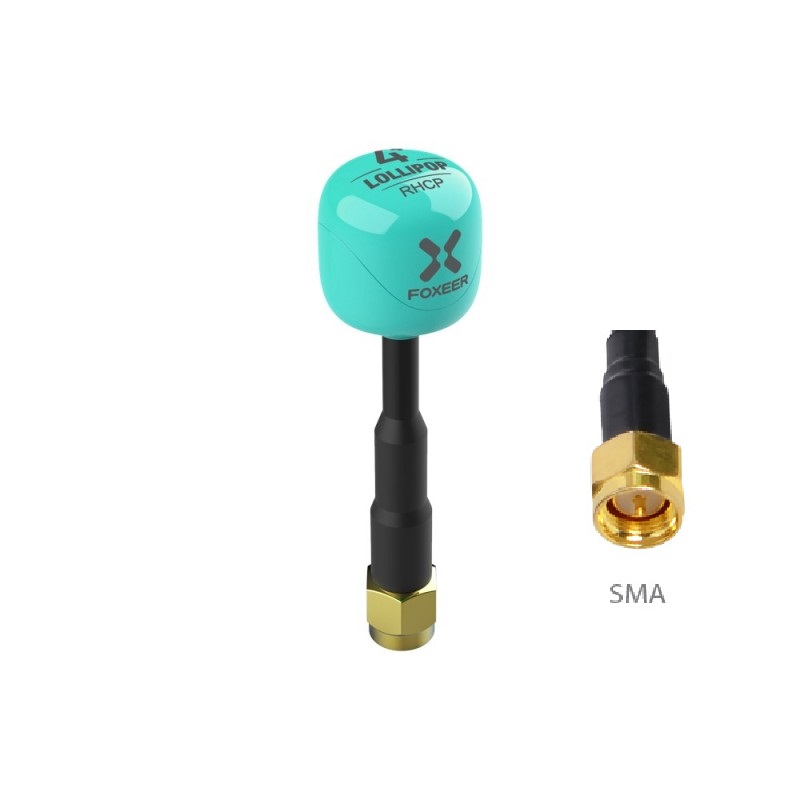

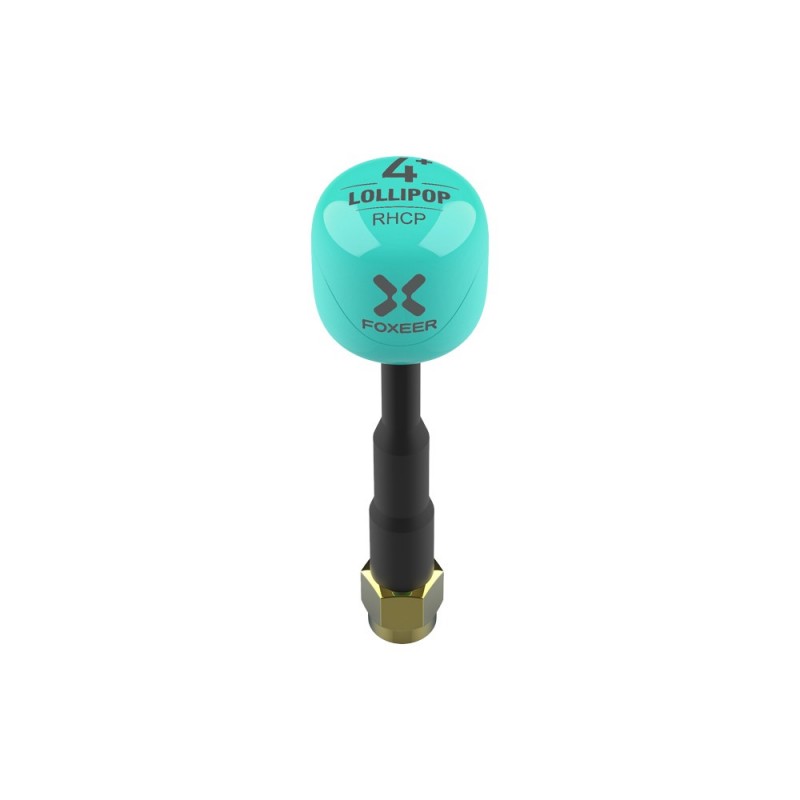

Foxeer Lollipop 4 Plus SMA FPV Antenna - Teal
The Foxeer Lollipop 4 Plus is a 5.8GHz RHCP omni-directional FPV antenna featuring a 2.6dBi gain and a broad 5.5-6GHz bandwidth for reliable signal transmission with minimal interference, compatible with a wide range of FPV goggles and VTX systems.
Features
- 5.8GHz center frequency with 5.5-6GHz operational bandwidth for wide compatibility.
- 2.6dBi gain Right-Hand Circular Polarization (RHCP) for enhanced signal reception and reduced multi-path interference.
- High 98% radiation efficiency and low 1.07 SWR at center frequency for optimal power transfer.
- Durable PC+ABS composite body case construction ensuring longevity and impact resistance.
- Lightweight 7.8g design with SMA connector for easy installation on goggles, VTXs, and receivers.
Out of stock
The Foxeer Lollipop 4 Plus SMA antenna is engineered for FPV pilots seeking a reliable omni-directional signal solution. Its design prioritizes a consistent radiation pattern with an axial ratio close to 1, which is critical for maintaining signal integrity and polarization matching in dynamic flight environments. The use of printed circuit and gold-plating technology ensures uniform electrical performance and long-term corrosion resistance.
This antenna’s compact form factor (Φ11x60mm) and robust PC+ABS housing make it suitable for both airborne and ground station applications, where durability and weight are key considerations. The optimized impedance matching results in a low Voltage Standing Wave Ratio (VSWR), translating to efficient RF energy transfer and extended operational range for racing, freestyle, and cinematic FPV drones.
Additional Information
| Weight | 0.0078 kg |
|---|---|
| Dimensions | 6 × 1.1 cm |
