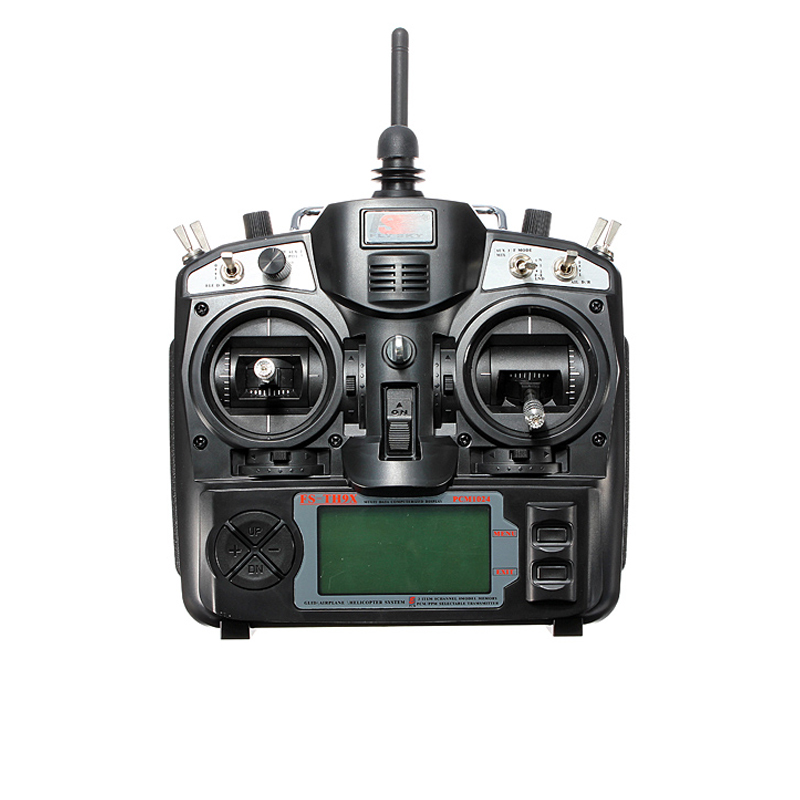

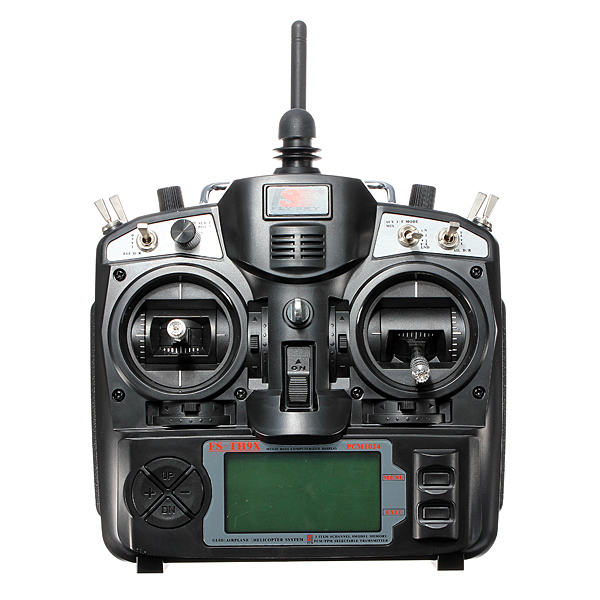

FlySky FS-TH9X 2.4GHz 9CH Upgrade Transmitter with FS-IA10B Receiver
The FlySky FS-TH9X is a 9-channel 2.4GHz AFHDS transmitter system featuring an upgradeable FS-RM003 module and bundled FS-IA10B 10-channel receiver, designed for multirotor, fixed-wing, and surface RC models with Mode-2 (left-hand throttle) configuration.
Features
- 9-channel AFHDS transmitter with upgradeable FS-RM003 2.4GHz RF module for flexible system expansion.
- Includes FS-IA10B 10-channel receiver with dual antennas, i-BUS support, and -105dBm sensitivity for robust signal reception.
- Features a 128×64 dot Matrix LCD, programmable mixes (V-Tail, Elevon, Flaperon), and servo adjustments (Dual Rate, Exponential, Endpoint).
- Operates on 12V DC (8x AAA) with low-voltage warning (<9V) and includes DSC port for simulator use.
- AFHDS 2A protocol with automatic frequency hopping provides anti-jamming capability and a typical control range of 350-400 meters.
Out of stock

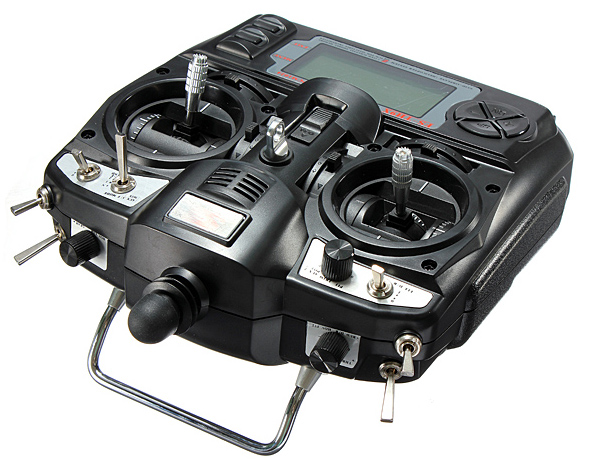

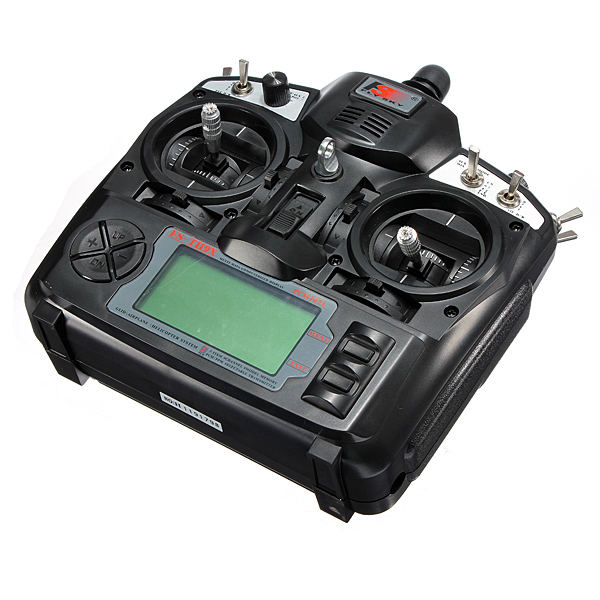

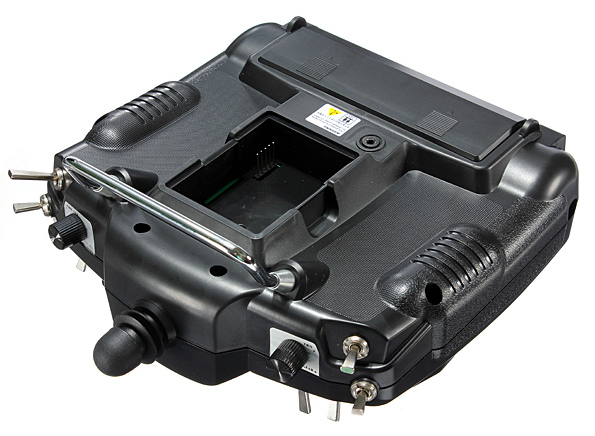

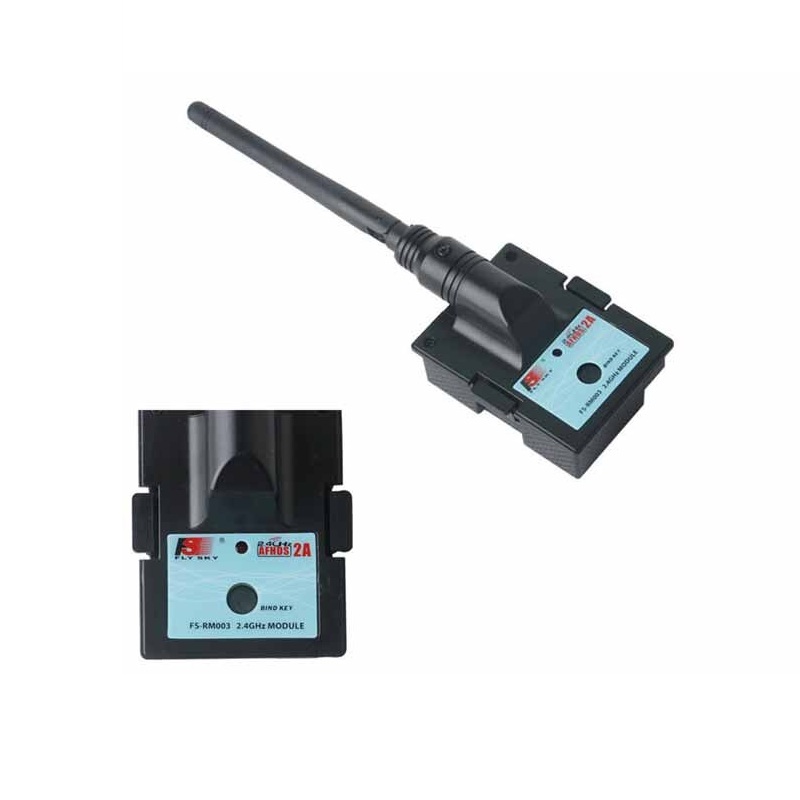

The FlySky FS-TH9X transmitter represents a core platform for RC pilots, built around a modular 2.4GHz AFHDS architecture. Its upgradeable design centers on the removable FS-RM003 RF module, allowing future protocol swaps or range extensions. The system employs GFSK modulation across 160 channels with automatic frequency hopping, actively mitigating interference from onboard electronics like ESCs and brushless motors to maintain clean control link integrity.

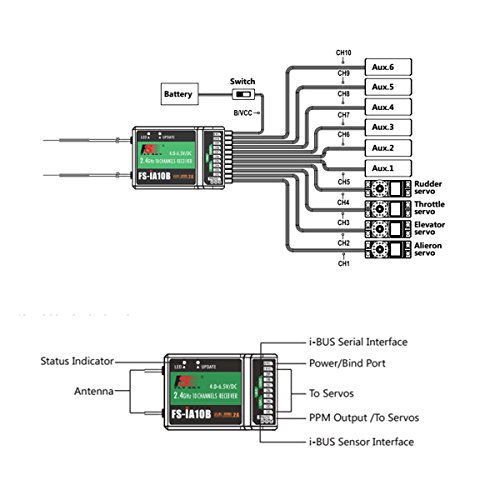

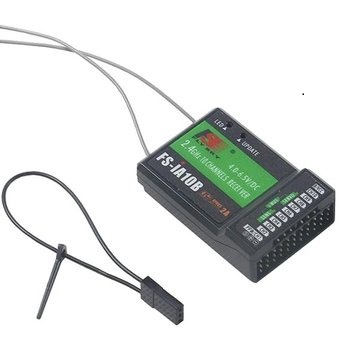

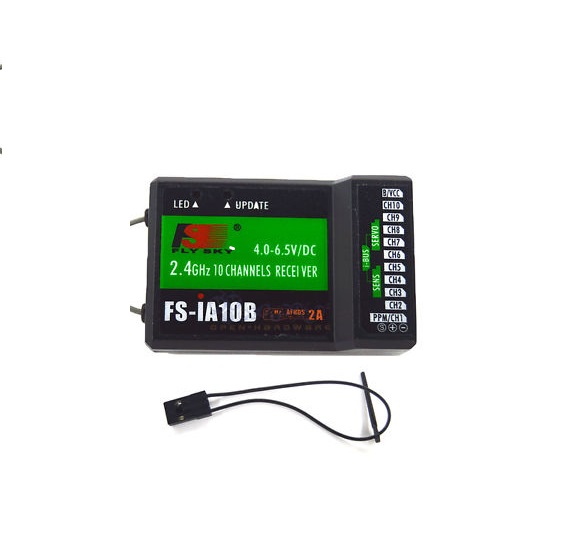

Bundled with the transmitter is the FS-IA10B receiver, a 10-channel unit compatible with the AFHDS 2A protocol. It features dual 26mm antennas for spatial diversity, an i-BUS port for high-speed digital servo communication, and operates from 4.0-6.5V DC, making it suitable for both fixed-wing and multirotor applications. The transmitter’s programmability supports complex model mixing, timer functions, and detailed servo curve adjustments, facilitated by the backlit LCD interface.
Additional Information
| Weight | 0.67 kg |
|---|---|
| Dimensions | 18 × 22 × 7 cm |
