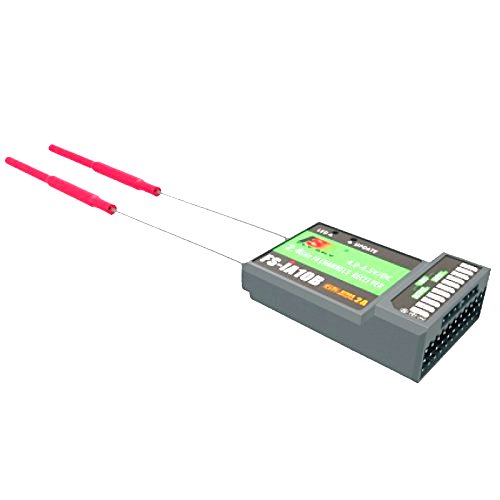

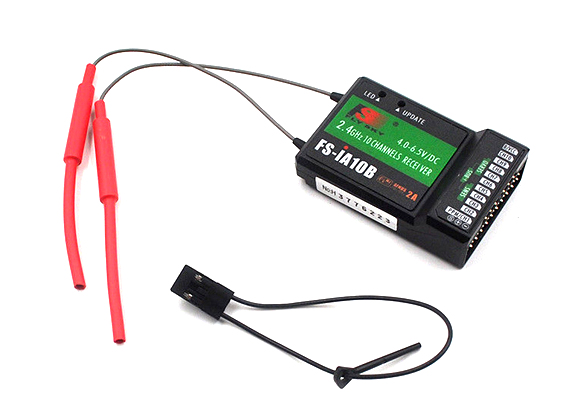

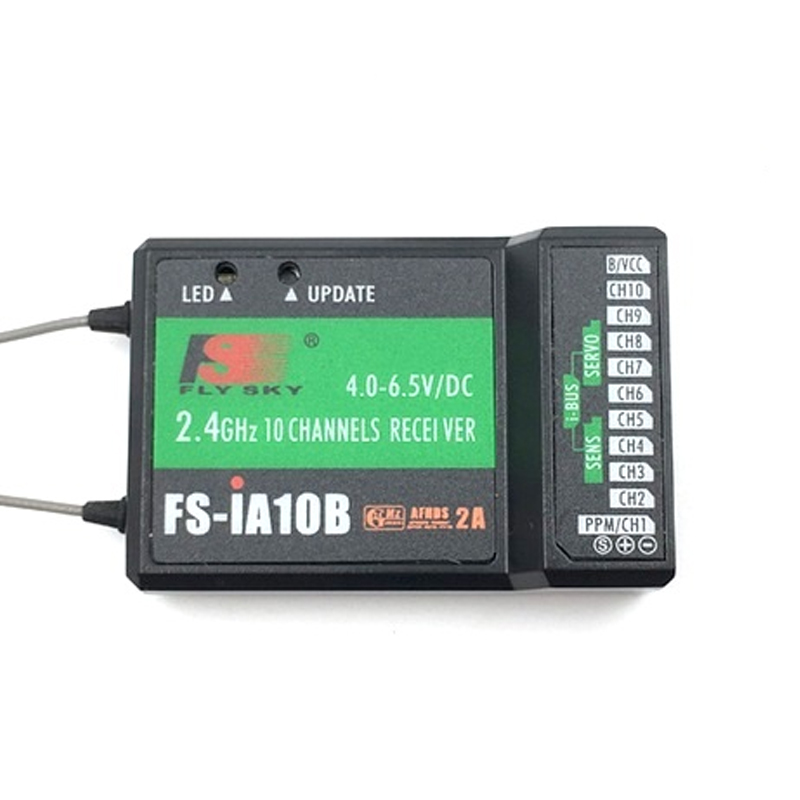

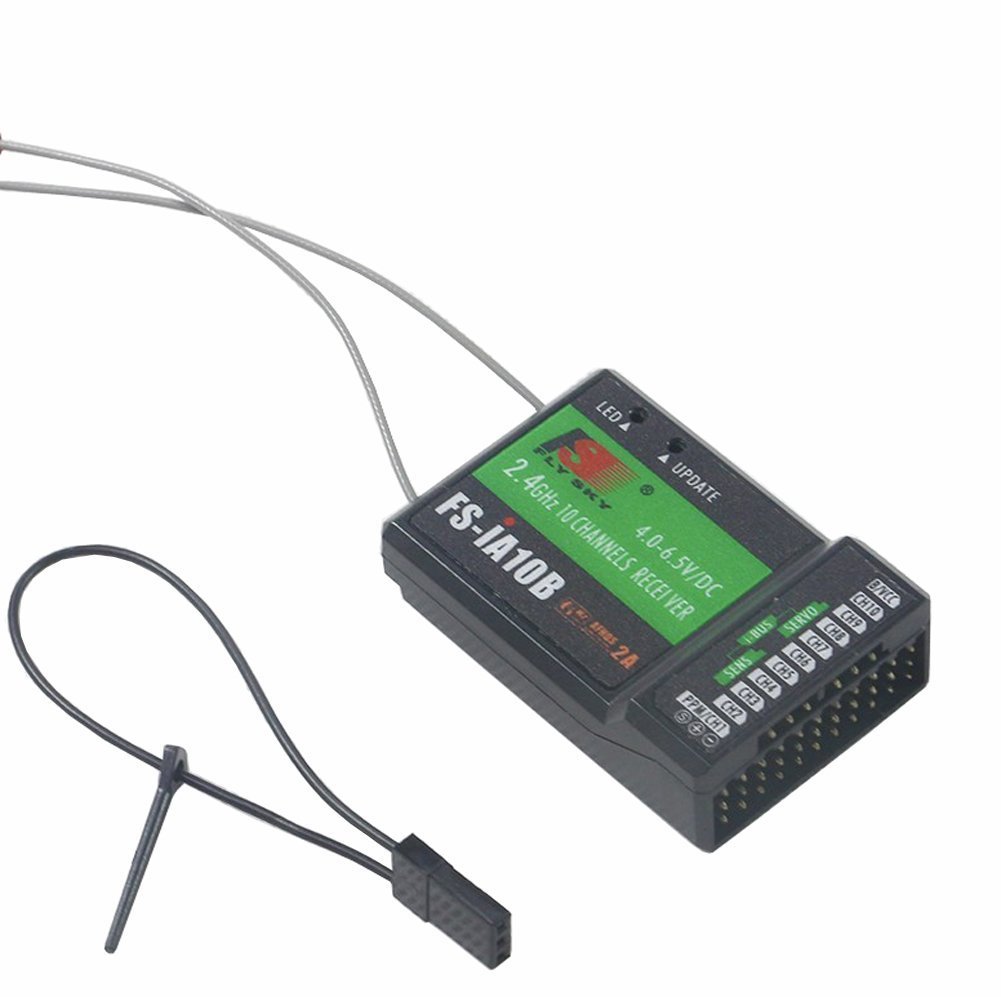

FlySky FS-IA10B Radio Receiver - Black
The FlySky FS-IA10B is a 10-channel AFHDS 2A protocol receiver featuring dual antennas for robust 2.4GHz signal reception, i-Bus and PPM output support, and optional telemetry sensor compatibility for monitoring flight battery voltage and motor RPM.
Features
- 10-channel AFHDS 2A protocol receiver with dual antennas for enhanced range and interference rejection.

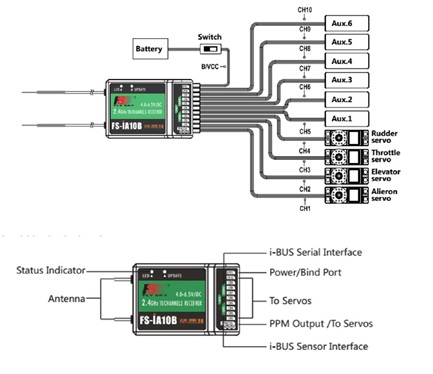

- Supports both i-Bus serial and PPM signal output for flexible flight controller integration.
- Operating voltage range of 4.0-6.5V DC, compatible with standard BEC and 2S LiPo power sources.
- Includes ports for optional telemetry sensors to monitor battery voltage and motor RPM.
- Compact and lightweight design (47x34x15mm, 15g) suitable for a wide range of multirotor and fixed-wing models.
Out of stock
The FlySky FS-IA10B receiver utilizes the advanced AFHDS 2A 2.4GHz spread spectrum system, providing reliable control with a reported range exceeding 1km. Its dual 110mm antennas, when positioned at a 90-degree angle, optimize signal diversity and rejection of multipath interference, making it suitable for both small and large-scale models.
Designed for flexibility, the receiver outputs signals via either the high-speed serial i-Bus protocol or traditional PPM, allowing compatibility with a broad spectrum of flight controllers, including Betaflight and ArduPilot. The integrated i-Bus interface enables connection to optional FlySky telemetry sensors, expanding in-flight data monitoring capabilities.
Additional Information
| Weight | 0.015 kg |
|---|---|
| Dimensions | 4.7 × 3.4 × 1.5 cm |
