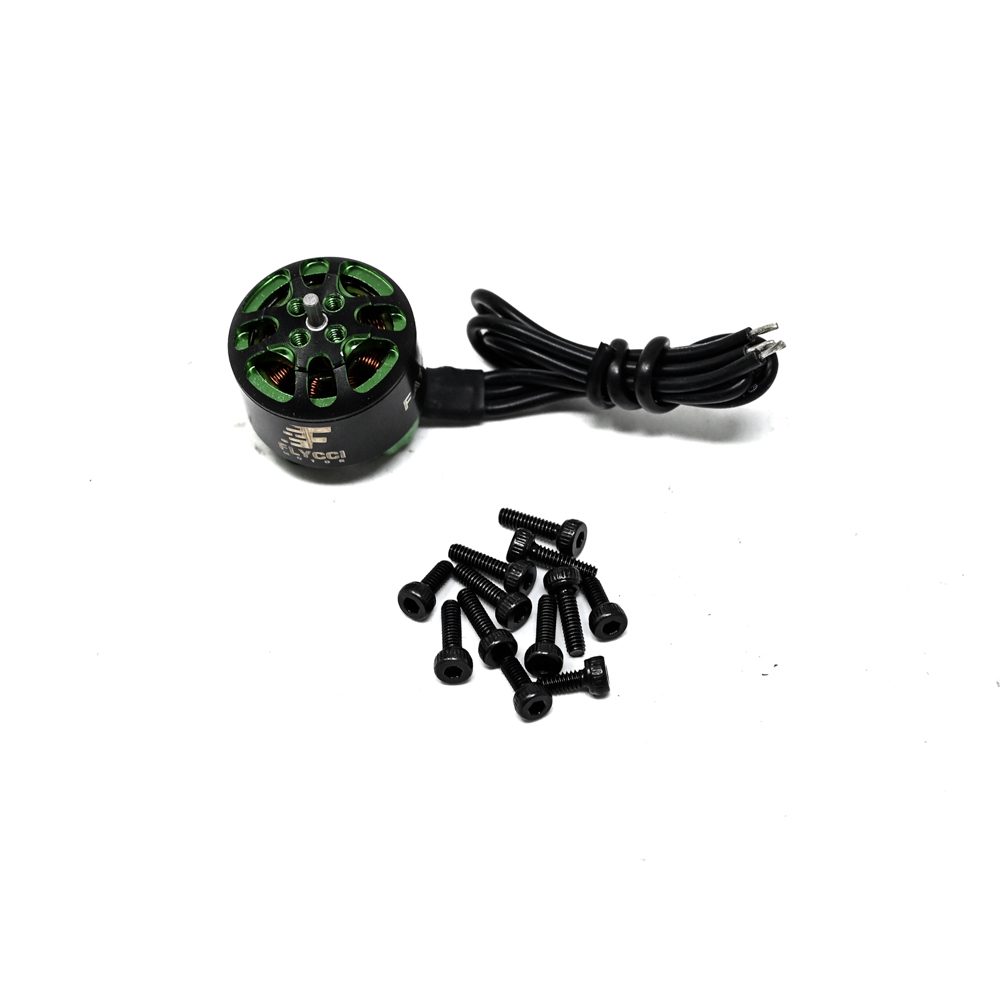

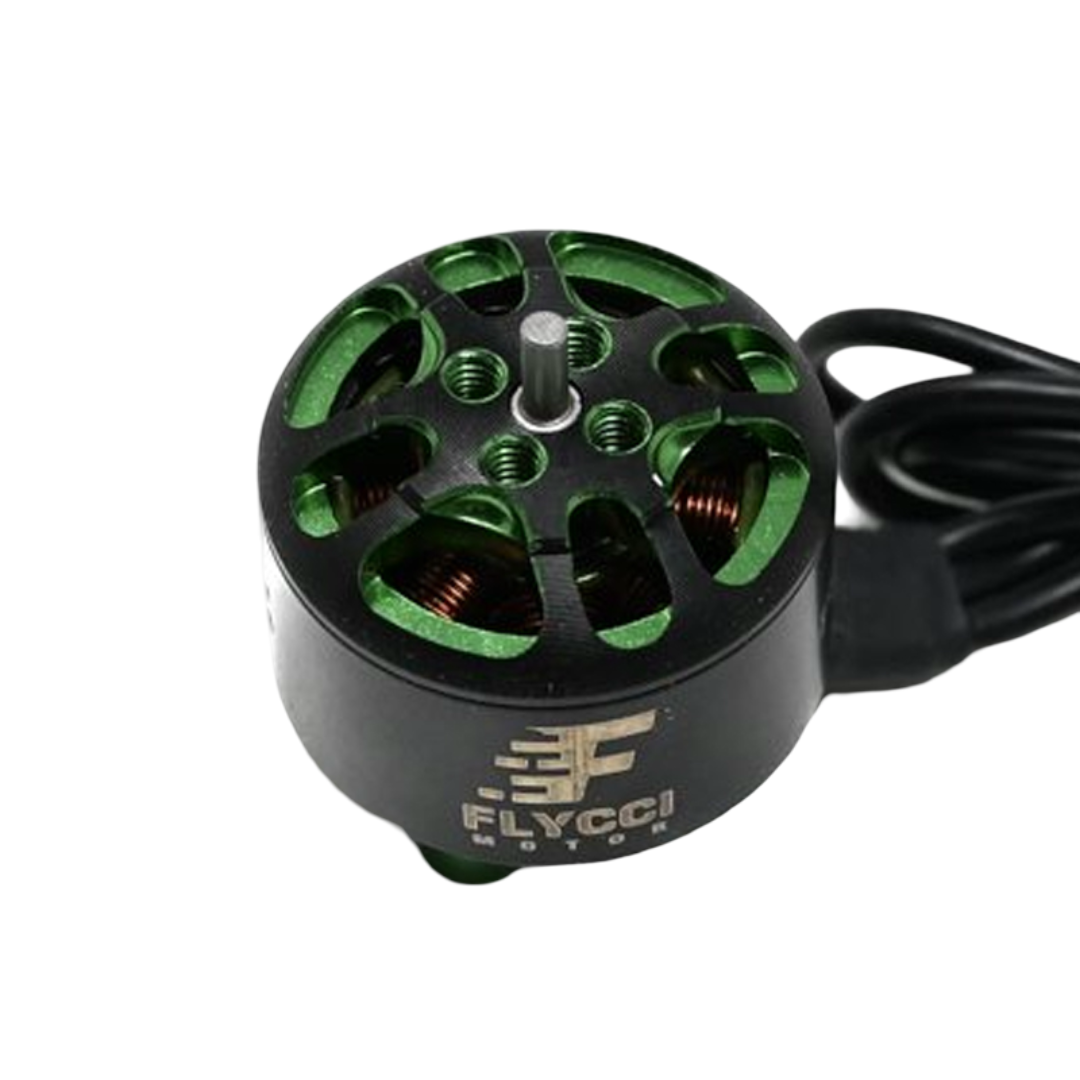

FLYCCI FA1408(1.5) 2800KV Brushless Motor

Name: FLYCCI FA1408(1.5) 2800KV Brushless Motor
Brand: FLYCCI
SKU: DRFC-2517
Price: 1279.00 INR
Availability: OutOfStock

₹1,279.00 (Inclusive of all taxes)

Out of Stock

The FLYCCI FA1408(1.5) 2800KV brushless motor is engineered for compact, high-speed FPV drone and UAV applications, supporting up to 5S LiPo voltage for agile flight performance and precise control.

Features

High-speed 2800KV rating optimized for 4-inch propellers on 3-5S LiPo power.
Compact 1408 stator size (18.6mm x 17.2mm) with a 1.5mm shaft for lightweight builds.
Delivers up to 660g of maximum thrust for responsive, agile maneuvers.
Robust construction ensures durability and reliable performance in demanding flight conditions.
Efficient 339W power capacity balances high rotational speed with stable energy consumption.

Out of stock

Get Notified When Available

Description

The FLYCCI FA1408 series motor combines a high 2800KV rating with a compact 1408 stator footprint, making it an ideal propulsion solution for 3-inch to 4-inch micro and toothpick-style FPV drones. Its design prioritizes a high power-to-weight ratio, enabling rapid throttle response and snappy acrobatic performance suitable for racing and freestyle flying.

Built with quality materials and precision engineering, this motor supports a wide voltage range up to 5S (20V), providing pilots with flexibility in power system configuration. The 1.5mm shaft diameter and recommended 4-inch propeller pairing ensure efficient thrust generation and stable flight characteristics for both indoor and outdoor environments.

Key Features

High-Speed Stator Design: 2800KV winding optimized for low-voltage, high-RPM operation on 3S to 5S LiPo batteries.
Compact & Lightweight Build: 1408 stator size (18.6mm diameter x 17.2mm height) minimizes weight for enhanced flight agility.
Durable Mechanical Construction: Features a hardened steel shaft and robust bearing assembly for impact resistance and long service life.
Efficient Thermal Management: Motor bell and stator laminations designed to dissipate heat effectively during sustained high-load operation.
Precision Balanced Rotor: Factory-balanced for smooth operation, reducing vibration and improving flight controller stability.
Wide Voltage Compatibility: Rated for up to 5S (20V) input, offering flexibility for various drone power setups.

Applications

3-inch to 4-inch micro FPV racing and freestyle drones requiring high KV and compact size.
Lightweight toothpick-style drone builds where minimal motor weight is critical for performance.
High-speed micro UAV platforms and agile RC aircraft designed for acrobatic maneuvers.
Compact cinewhoop drones utilizing 4-inch propellers for dynamic indoor/outdoor filming.
Experimental and DIY micro quadcopter projects needing a reliable, high-RPM propulsion unit.

Technical Specifications

Motor Model	FA1408(1.5)
KV Rating	2800KV
Stator Size	14mm x 8mm (1408)
Motor Dimensions	18.6mm (Diameter) x 17.2mm (Height)
Shaft Diameter	1.5mm
Max Voltage	20V (5S LiPo)
Max Power	339W
Max Thrust	660g
Recommended Propeller	4-inch
Motor Type	Outrunner Brushless

Frequently Asked Questions

What is the maximum recommended battery voltage for the FLYCCI FA1408 2800KV motor?

The FLYCCI FA1408(1.5) 2800KV motor is rated for a maximum voltage of 20V, which corresponds to a 5S LiPo battery pack. For optimal performance and motor longevity, it is commonly used with 3S to 4S LiPo configurations, where the high KV rating provides excellent rotational speed and throttle response for agile flight.

What size propeller is best suited for this 2800KV motor?

This motor is designed and tested for use with 4-inch propellers. Pairing it with lighter-weight 4-inch bi-blade or tri-blade props on 3S or 4S power will yield the best balance of thrust, efficiency, and motor temperature management, making it ideal for high-speed micro and toothpick drone builds.

What is the shaft diameter, and what propeller mounting options does it support?

The motor features a 1.5mm diameter shaft. This requires propellers with a corresponding 1.5mm bore hole or the use of adapters. Most propellers designed for micro motors include this size, and it typically uses a press-on propeller mount secured with a screw-on prop nut, common in the micro FPV sector.

Is this motor suitable for a lightweight 3-inch freestyle drone build?

Yes, the compact 1408 stator size and 2800KV rating make it an excellent choice for powerful 3-inch freestyle drones. Its high KV provides the punch needed for quick climbs and flips, while its small size and weight contribute to an agile and responsive flight character, especially when paired with a lightweight frame and 3-inch propellers.
