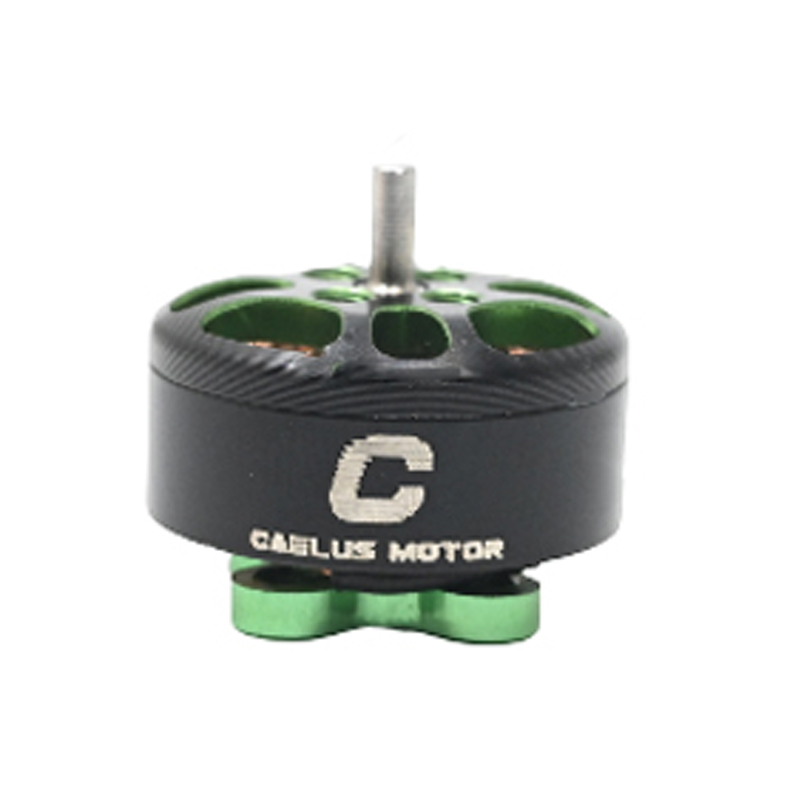

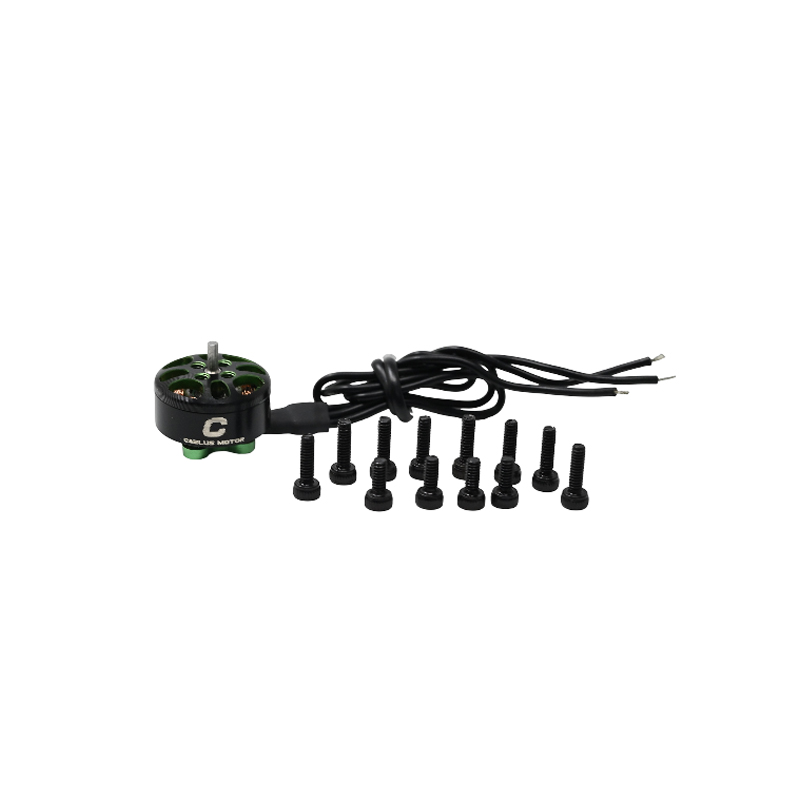

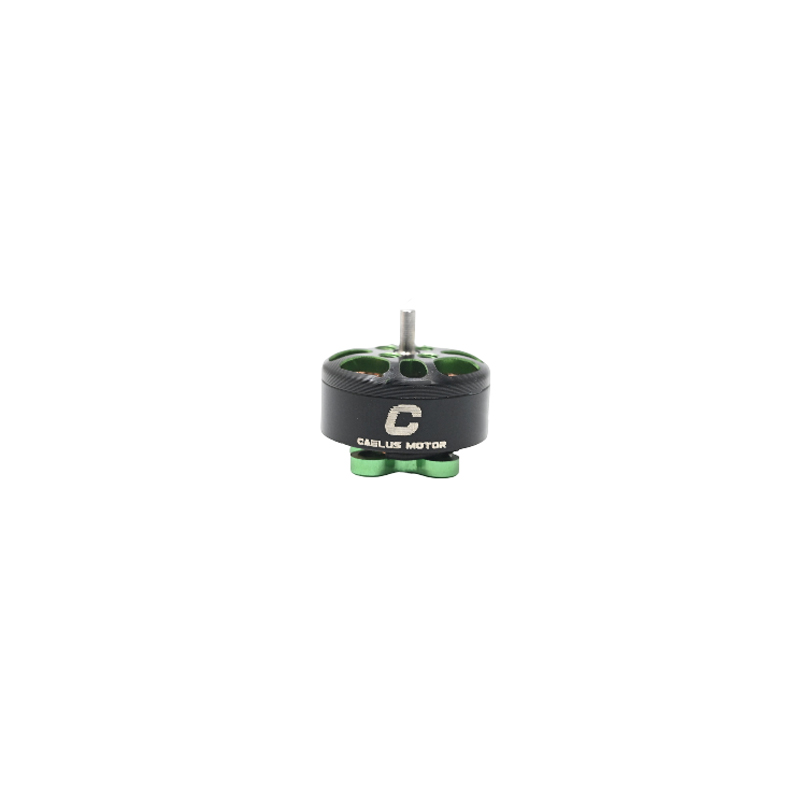

FLYCCI FA1204 3100KV Brushless Motor

Name: FLYCCI FA1204 3100KV Brushless Motor
Brand: FLYCCI
SKU: DRFC-2424
Price: 1319.00 INR
Availability: OutOfStock

₹1,319.00 (Inclusive of all taxes)

Out of Stock

The FLYCCI FA1204 is a compact 1204-size brushless motor with a 3100KV rating, engineered for 2-4S LiPo power systems (7.4-15V) and optimized for 3-inch propellers on lightweight CineWhoop and cinematic drone builds.

Features

3100KV rating for high-RPM performance on 2-4S LiPo batteries.
Compact 1204 motor size (15.7mm diameter x 10.8mm height).
Generates up to 211g of maximum thrust per motor.
Features a durable 2mm steel shaft for reliable power transfer.
Ultra-lightweight design at just 7 grams per motor.

Out of stock

Get Notified When Available

Description

The FLYCCI FA1204 brushless motor delivers a high power-to-weight ratio, making it an ideal choice for compact, high-performance UAV platforms. Its 3100KV winding is optimized for 2-4S LiPo voltage, providing the rotational speed necessary for agile flight and rapid throttle response in constrained builds.

Constructed with quality materials, the motor is designed for durability and efficient thermal management, ensuring consistent performance during extended flight sessions. The compact 15.7×10.8mm form factor allows for seamless integration into tight 3-inch CineWhoop frames, where space and weight are critical constraints.

Key Features

High-Speed 3100KV Windings: Optimized for 2-4S voltage, delivering high RPM for responsive throttle control and agile maneuvers.
Ultra-Compact & Lightweight Build: Measures 15.7mm in diameter and 10.8mm in height, weighing only 7g to minimize overall system weight.
Durable 2mm Steel Shaft: Provides a robust connection for propellers, ensuring reliable power transfer and resistance to bending.
Efficient Thermal Design: Engineered for effective heat dissipation, maintaining stable performance and motor longevity during continuous operation.
Precision Balanced Bell & Stator: Manufactured to minimize vibrations, resulting in smoother flight and reduced wear on other components.

Applications

3-inch CineWhoop drones requiring smooth, stabilized footage and ducted propeller protection.
Lightweight 3-inch freestyle or racing quadcopters built for agility and rapid acceleration.
Compact cinematic drone platforms where a minimal footprint and low weight are paramount.
Small-scale UAV projects and experimental micro-builds operating on 2S or 3S LiPo batteries.

Technical Specifications

Model	FA1204
Motor KV	3100 KV
Motor Size	15.7 x 10.8 mm
Shaft Diameter	2 mm
Voltage Range	DC 7.4-15V (2-4S LiPo)
Max Thrust	211 g
Power Capacity	77 W
Recommended Propeller	3 inch
Weight	7 g

Frequently Asked Questions

What is the recommended battery voltage for the FLYCCI FA1204 3100KV motor?

The FLYCCI FA1204 3100KV motor is rated for 2-4S LiPo batteries, corresponding to a voltage range of 7.4V to 15V. For optimal performance and motor longevity, it is best used with 3S (11.1V) or 4S (14.8V) packs, as the higher voltage provides the necessary power for its high-KV design.

What size propeller is compatible with this 1204 3100KV motor?

This motor is designed and tested for 3-inch propellers. Using larger props may overstress the motor and ESC, while smaller props may not utilize its full power potential. Always pair it with lightweight, balanced 3-inch props, such as tri-blade or bi-blade designs, suitable for micro and CineWhoop builds.

What is the mounting pattern for the FLYCCI FA1204 motor?

The FA1204 motor uses a standard M2 mounting screw pattern. The exact hole spacing is typically 9mm or 12mm, which is common for 1204-size motors. Always check your frame's motor mounting plate for compatibility with this M2 pattern before installation.
