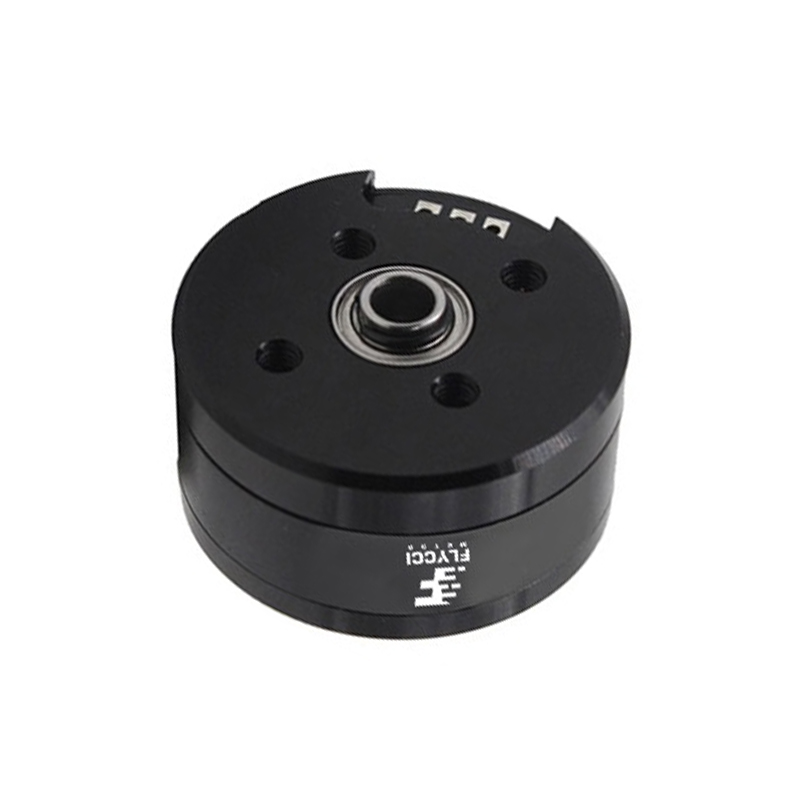

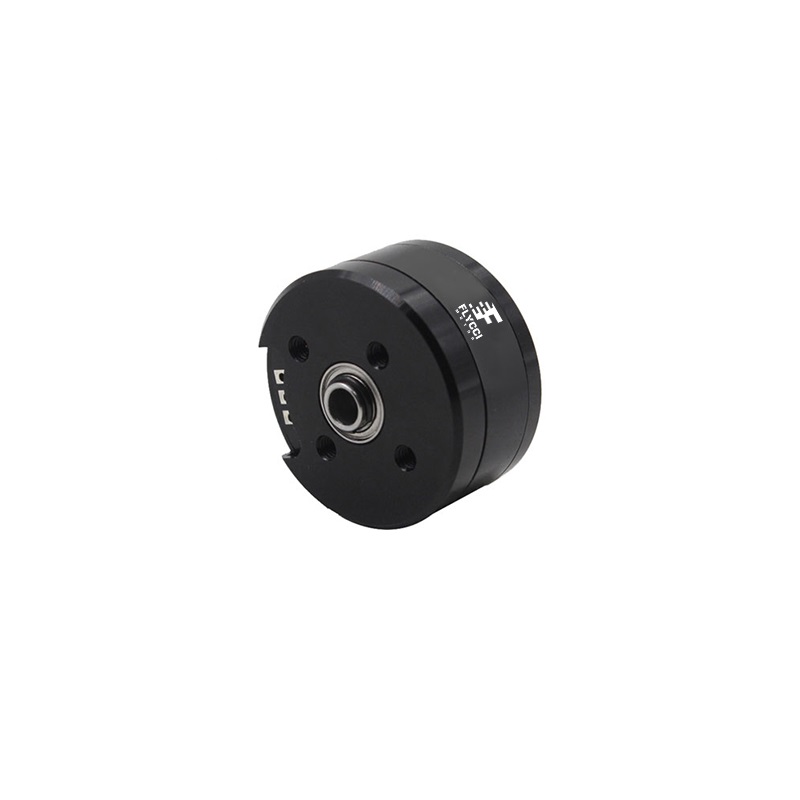

FLYCCI BGM2606-90 90KV Brushless Motor

The FLYCCI BGM2606-90 is specifically designed for precision motion control applications requiring high torque at low rotational speeds. Its primary uses include camera gimbal stabilization systems, robotic arm joints, and various industrial automation machines where smooth, accurate positioning is more critical than high RPM.

No, this motor is not suitable for standard multirotor or FPV drone propulsion. Its 90KV rating and high 8.5Ω phase resistance are optimized for torque, not speed. Using it for propulsion would result in extremely low RPM and insufficient thrust. It is intended for gimbal, actuator, and direct-drive automation applications.

This motor requires a brushless ESC capable of operating in a low-KV, high-resistance regime, often labeled for gimbal or servo use. Controllers like Tinymovr that support closed-loop current control and 'gimbal mode' are ideal. Standard high-current drone ESCs may not provide the fine control needed and could operate inefficiently with this motor's electrical characteristics.

The 4mm output shaft diameter is a standard size for direct coupling to gimbal mechanisms and other driven components without the need for additional adapters. It provides a robust mechanical connection capable of handling the motor's torque output, ensuring reliable power transfer in precision assemblies.
