SKU: 3DMR-0716
📋 GST Invoice Available

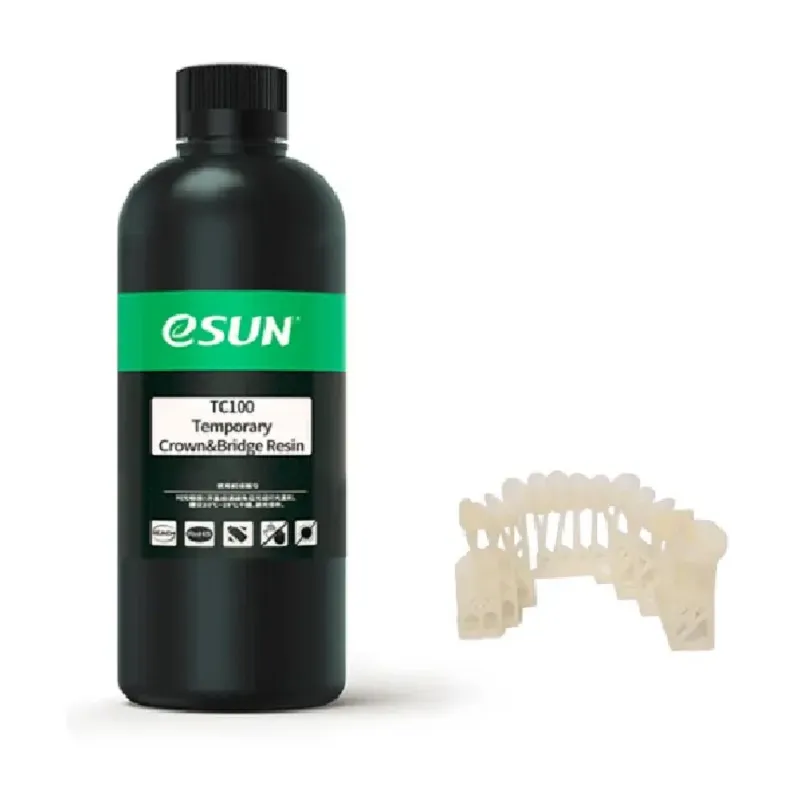

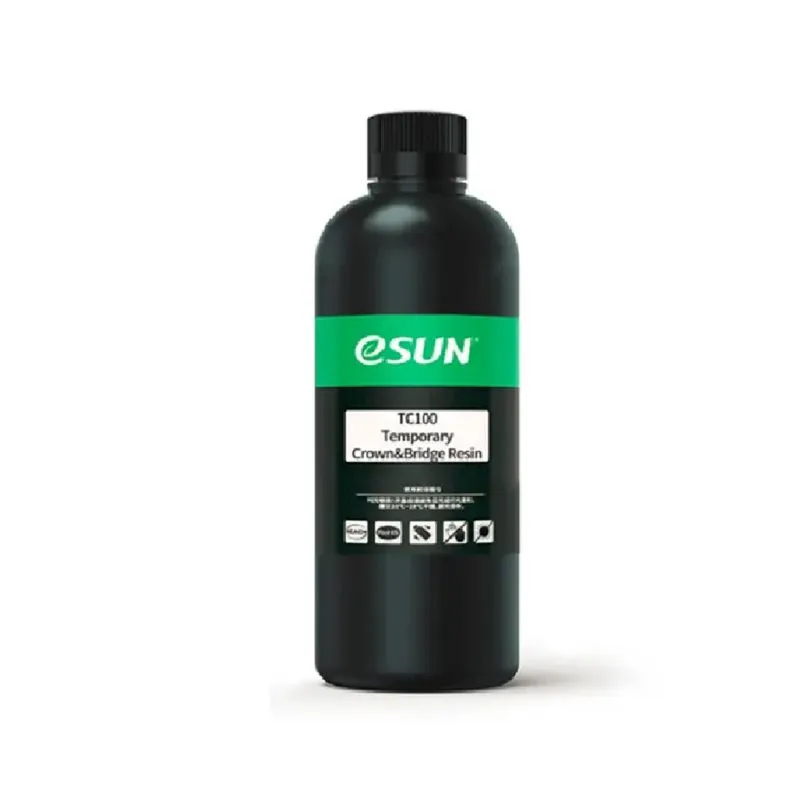

eSUN TC100 Temporary Crown & Bridge Resin A1 1kg

₹9,499.00 (Inclusive of all taxes)
Out of Stock

eSUN TC100 Temporary Crown & Bridge Resin is a specialized photopolymer for dental applications, offering high surface hardness and excellent scratch resistance. Designed for DLP/LCD 3D printers, it produces durable, aesthetically pleasing temporary dental prosthetics.

Features

  • Formulated for temporary dental crowns and bridges with A1 color aesthetics.
  • Achieves high surface hardness (>80D Shore D) and superior scratch resistance after post-curing.
  • Designed for short-term oral use, ensuring odorless and tasteless applications.
  • Optimized for DLP/LCD printers, providing high molding precision for intricate dental models.

Out of stock

Description

The eSUN TC100 Temporary Crown & Bridge Resin is engineered for precision dental additive manufacturing. This specialized photopolymer is formulated to produce temporary dental prosthetics that are suitable for short-term use within the oral environment. Its unique composition ensures the final printed parts are odorless and tasteless, providing comfort and safety for the patient.

Characterized by its exceptional post-curing properties, this resin develops a high surface hardness exceeding 80D Shore D, coupled with excellent scratch resistance. This makes the TC100 ideal for applications where mechanical durability and aesthetic integrity are critical. Achieving optimal results requires careful cleaning, thorough post-curing, and precise polishing to maximize the material’s inherent strength and natural appearance.

Key Features

  • Biocompatible for short-term oral use, odorless and tasteless.
  • Delivers a natural tooth-like A1 shade appearance.
  • Exhibits exceptional molding precision for detailed anatomical structures.
  • Achieves superior surface hardness, typically 80-90 Shore D.
  • Provides excellent scratch resistance on post-cured surfaces.
  • Optimized for 395-405nm UV light, compatible with most DLP/LCD 3D printers.

Applications

  • 3D printing of temporary dental crowns.
  • Fabrication of temporary dental bridges.
  • Prototyping of dental prosthetics requiring high detail and hardness.
  • Medical and dental education models.

Technical Specifications

Material TypeTC100 Temporary Crown & Bridge Resin
ColorBeige (A1)
Net Weight1 kg
Density1.05-1.25 g/cm³
Viscosity150-350 mPa·s
UV Wavelength395-405 nm
Recommended Exposure Time2.5-3 seconds (varies by printer)
Tensile Strength30.0 ± 10 % MPa
Elongation at Break6.45 ± 10 %
Hardness (Shore D)80-90

Frequently Asked Questions

What are the optimal storage conditions for eSUN TC100 resin?

Store the resin in a cool, dark place away from direct sunlight or UV light exposure. Ensure the bottle is tightly sealed to prevent moisture absorption and contamination. Ideal storage temperatures are typically between 15-30°C to maintain resin stability and shelf life.

What post-processing steps are crucial for TC100 resin?

After printing, clean parts thoroughly with IPA (Isopropyl Alcohol) for several minutes, then air dry completely. Post-cure under a 395-405nm UV light to achieve full material properties like high hardness and scratch resistance. Finally, polish for a smooth, aesthetic finish.

Can eSUN TC100 resin be used with all types of resin 3D printers?

This resin is optimized for DLP and LCD resin 3D printers operating at a UV wavelength of 395-405nm. Compatibility with specific printer models can vary, so always refer to your printer's recommended settings and perform small test prints to fine-tune exposure.

How should print settings like exposure time be adjusted for TC100?

The recommended exposure time is 2.5-3 seconds per layer, but this is a starting point. It requires calibration based on your specific printer's UV power, screen resolution, and layer height. Conduct exposure calibration tests (e.g., R_E_R_F) for optimal detail and successful prints.

Package Includes

  • 1x eSUN TC100 Temporary Crown & Bridge Resin (A1, 1kg)

Additional Information

Weight 1 kg
Dimensions 28 × 10 × 10 cm
