SKU: 3DMR-1119
📋 GST Invoice Available

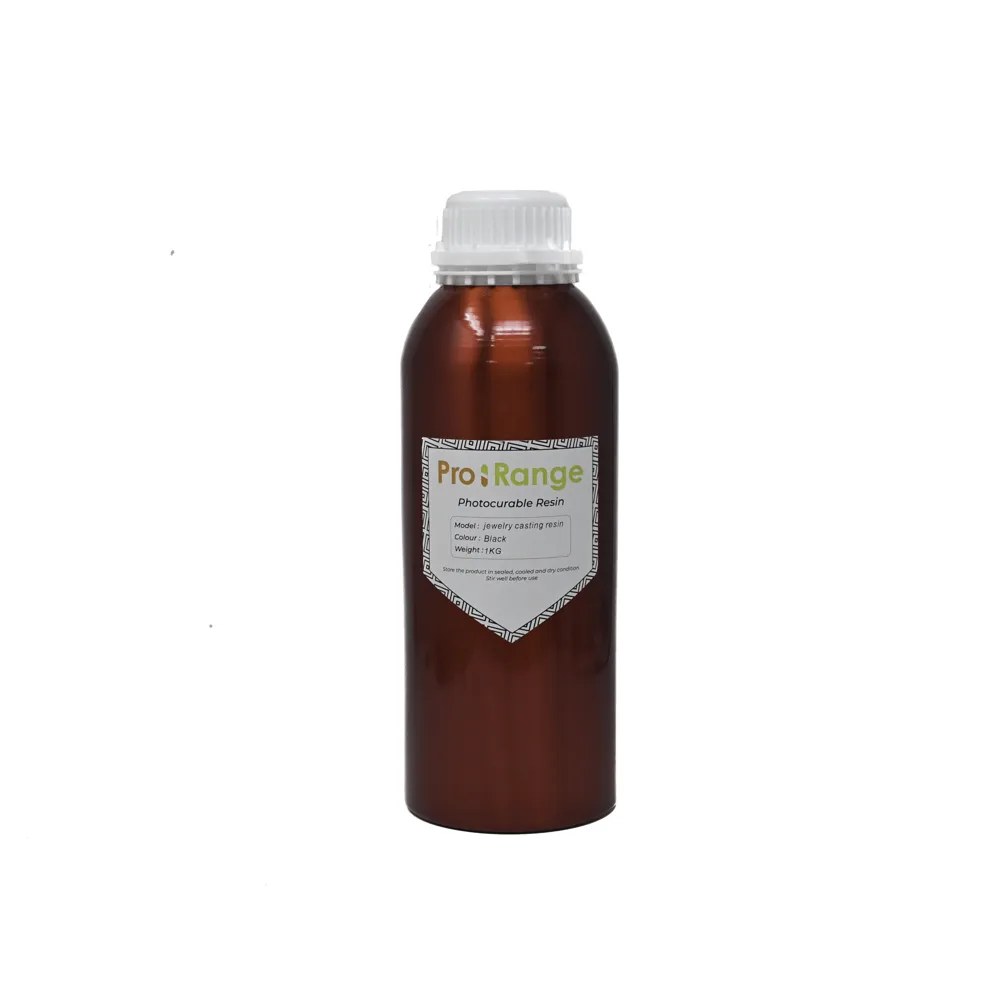

Pro-Range Jewelry Casting Resin 1Kg Black

₹5,585.00 (Inclusive of all taxes)
Out of Stock

Pro-Range Black Casting Resin is engineered for intricate jewelry making and small object casting, delivering a durable, high-detail finish. With a low viscosity of 125cps and a Shore D hardness of 85, it ensures precise molding and wear-resistant parts.

Features

  • High-detail casting resin optimized for jewelry and intricate models.
  • Features a low viscosity (125cps) for superior mold filling and detail reproduction.
  • Achieves a high Shore D hardness of 85, ensuring durable, wear-resistant parts.
  • Cures rapidly under 395-405nm UV light, offering efficient production cycles.
  • Exhibits significant tensile (35 MPa) and impact strength (13 J/m) for robust designs.

Out of stock

Description

Pro-Range Black Casting Resin is a high-performance photopolymer engineered specifically for jewelry manufacturing and intricate small object casting applications. This advanced liquid resin cures efficiently under UV light, producing durable, high-resolution models with a vibrant black finish. Its specialized formulation allows for the creation of extremely detailed pieces, such as rings, pendants, and miniature designs, providing a professional-grade solution for both industrial artists and passionate hobbyists.

This casting resin offers exceptional mechanical properties crucial for demanding applications. With a tensile strength of 35 MPa and a flexural strength of 75 MPa, finished parts exhibit robust durability. The low viscosity of 125 cps ensures excellent flow into complex molds, capturing the finest details without trapping air. Post-processing is streamlined, involving simple washing, UV post-curing, and stress-relief steps to achieve optimal material properties.

Key Features

  • Produces vibrant black, high-contrast finished parts ideal for intricate jewelry.
  • Engineered for high durability with a tensile strength of 35 MPa and flexural strength of 75 MPa.
  • Features ultra-low viscosity (125 cps) for exceptional detail capture and smooth resin flow.
  • Optimized for rapid UV curing with wavelengths between 395nm and 405nm.
  • Offers enhanced impact resistance (13 J/m) and low water absorption (0.93%).
  • Achieves a high Shore D hardness of 85, providing wear-resistant and rigid models.
  • Maintains structural integrity with a heat deflection temperature up to 85°C.
  • Facilitates quick and straightforward post-processing, including washing and post-curing.

Applications

  • Creating intricate jewelry pieces such as rings, pendants, and earrings.
  • Manufacturing highly detailed miniature models and gaming figures.
  • Prototyping small, complex components requiring fine feature resolution.
  • Producing decorative and artistic objects with precise aesthetics.
  • Casting delicate parts where high hardness and wear resistance are critical.

Technical Specifications

Material TypeCasting Photopolymer Resin
ColorBlack
Volume1 kg
Viscosity125 mPa·s
Curing Wavelength395-405 nm
Tensile Strength35 MPa
Flexural Strength75 MPa
Impact Strength13 J/m
Shore D Hardness85D
Heat Deflection Temp.85°C
Water Absorption0.93%

Frequently Asked Questions

What are the optimal UV exposure settings for Pro-Range Black Casting Resin?

Optimal exposure settings typically range from 2.5-4 seconds per layer on mono LCD printers, depending on layer height and printer power. Dialing in a test print is crucial to achieve the best detail and complete cure, ensuring delicate features are fully formed and robust.

How should Pro-Range Black Casting Resin be post-processed for best results?

After printing, wash parts thoroughly with 90%+ IPA for 3-5 minutes, ensuring all uncured resin is removed. Allow parts to air dry completely, then post-cure under 395-405nm UV light for 10-20 minutes, rotating for even exposure to maximize hardness and strength.

Can this casting resin be used for purposes other than jewelry?

Yes, while optimized for jewelry, its high detail, hardness (85D), and strength (35 MPa tensile) make it excellent for miniature figures, small functional prototypes, and intricate artistic models. Always verify material properties meet your specific application requirements.

What storage conditions are recommended for Pro-Range Black Casting Resin?

Store the resin in its original opaque bottle in a cool, dry place away from direct sunlight and UV exposure. Ensure the cap is tightly sealed to prevent contamination and exposure to ambient light, which can prematurely cure the resin.

Package Includes

  • 1x Pro-Range Jewelry Casting Resin 1Kg (Black)

Additional Information

Weight 1 kg
Dimensions 26 × 9 × 9 cm
