SKU: 3DMR-0776
📋 GST Invoice Available

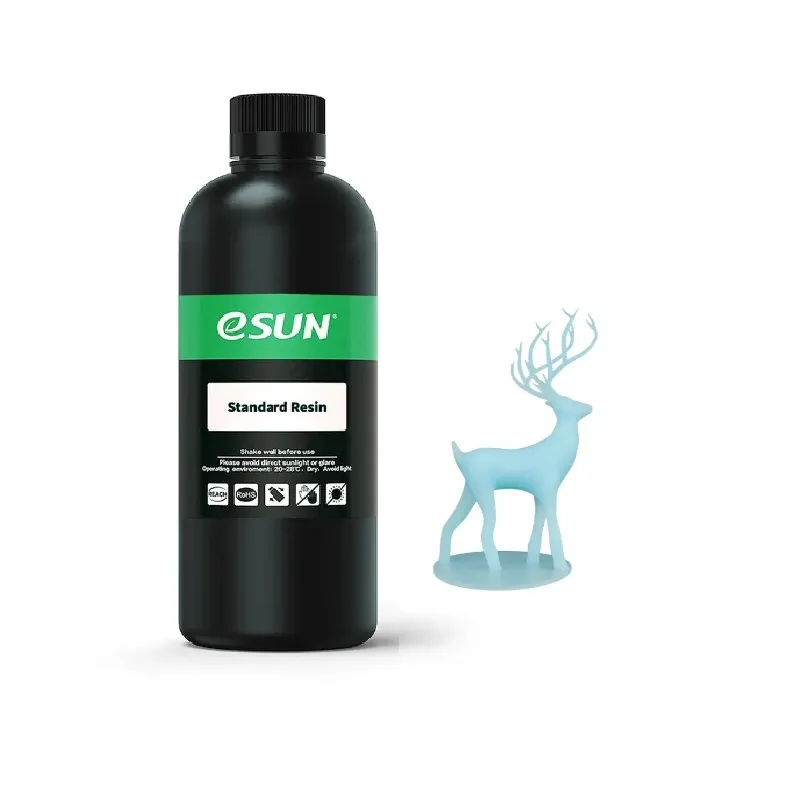

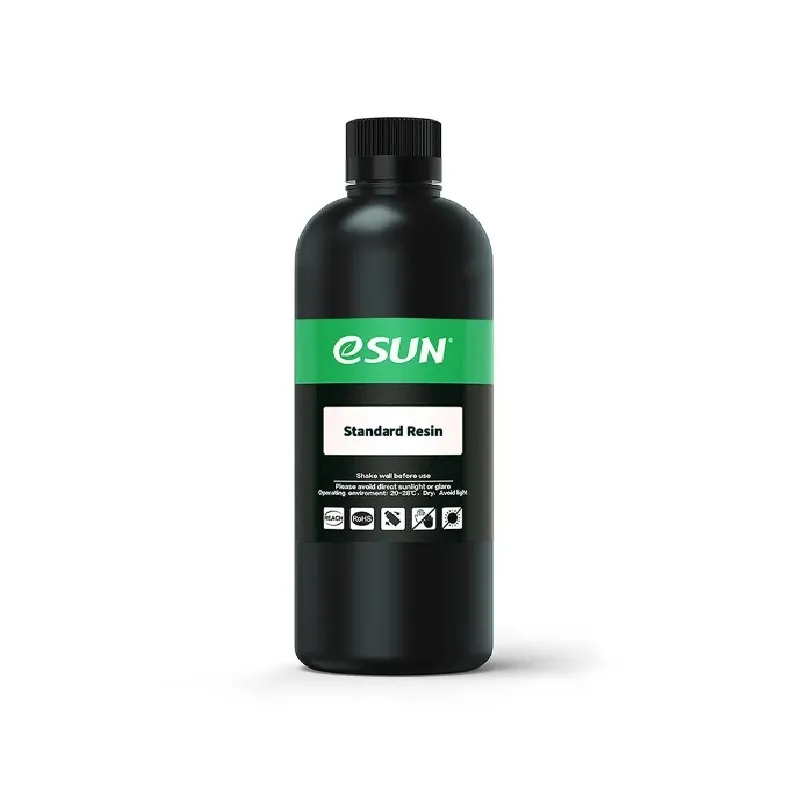

eSUN Standard Resin, Sky Blue, 1kg

₹3,188.00 (Inclusive of all taxes)
Out of Stock

eSUN Standard Resin in Sky Blue offers excellent rigidity and precise molding for thin-layered parts, making it ideal for rapid prototyping and functional testing. This epoxy-based photopolymer resin is optimized for LCD 3D printers, delivering reliable performance and a smooth finish.

Features

  • High precision and dimensional stability for intricate models.
  • Fast curing properties enhance printing speed and success rates.
  • Robust rigidity and toughness suitable for functional prototypes.
  • Optimized fluidity for smooth printing and detailed reproduction.
  • Broad compatibility with most LCD/DLP resin 3D printers.

Out of stock

Description

eSUN Standard Resin, presented here in Sky Blue, is an epoxy-based photopolymer meticulously engineered for excellent printability and robust mechanical properties. It delivers high rigidity and exceptional molding accuracy, enabling the production of thin-layered parts with intricate details. This resin is particularly well-suited for rapid prototyping, allowing designers and engineers to quickly create test parts for functional evaluation and design iteration.

Models printed with eSUN Standard Resin exhibit good dimensional stability and can withstand moderate functional testing. Post-processing is straightforward; finished models require cleaning with high-concentration alcohol (>95%) for approximately 30 seconds to remove uncured resin. This ensures optimal surface quality and durability for your printed components, making it a reliable choice for a wide range of resin 3D printing applications.

Key Features

  • Professional LCD molding resin with balanced rigidity and toughness.
  • Achieves high precision and low shrinkage for stable, accurate prints.
  • Ensures fast curing and excellent fluidity, boosting printing efficiency.
  • Promotes strong adhesion of models to the build plate for high success rates.
  • Facilitates easy detachment of cured parts after printing.
  • Designed for compatibility with a majority of mainstream LCD 3D printers.

Applications

  • Functional prototyping and concept verification.
  • Rapid design iteration and test part creation.
  • Creating detailed models requiring high accuracy.
  • General purpose resin printing for various applications.

Technical Specifications

ColorSky Blue
Material TypeStandard Resin (Epoxy-based)
Density1.08-1.13 g/cm³
Viscosity170-200 mPa·s
Curing Wavelength395-405 nm
Tensile Strength46-67 MPa
Flexural Modulus1000-1400 MPa
Flexural Strength46-72 MPa
Net Weight1 kg (bottle)

Frequently Asked Questions

What is the optimal cleaning procedure for models printed with eSUN Standard Resin?

After printing, models should be cleaned thoroughly with high-concentration alcohol, ideally 95% or higher, for approximately 30 seconds. This process effectively removes any residual uncured resin from the surface, ensuring a clean finish and preparing the part for subsequent post-curing.

Is an enclosure necessary when printing with eSUN Standard Resin?

While not strictly required for odor control due to its low-VOC nature, printing in a stable environment with minimal temperature fluctuations is recommended. An enclosure helps maintain a consistent temperature, which can improve print reliability and reduce warping, especially for larger models.

What post-curing methods are recommended for eSUN Standard Resin?

Post-curing using a dedicated UV curing station or direct sunlight is highly recommended to achieve optimal mechanical properties and hardness. Ensure the cleaned model is fully dry before exposure to UV light for about 2-10 minutes, depending on the intensity of the light source.

What are the typical storage conditions for eSUN Standard Resin?

Store eSUN Standard Resin in a cool, dry, and dark place, away from direct sunlight and heat sources, to prevent premature curing. Ensure the bottle is tightly sealed after use to avoid exposure to air and moisture, which can degrade the resin's quality over time.

Package Includes

  • 1x eSUN Standard Resin-Sky Blue (1kg bottle)

Additional Information

Weight 1 kg
Dimensions 10 × 10 × 27 cm
