SKU: 3DMR-0808
📋 GST Invoice Available

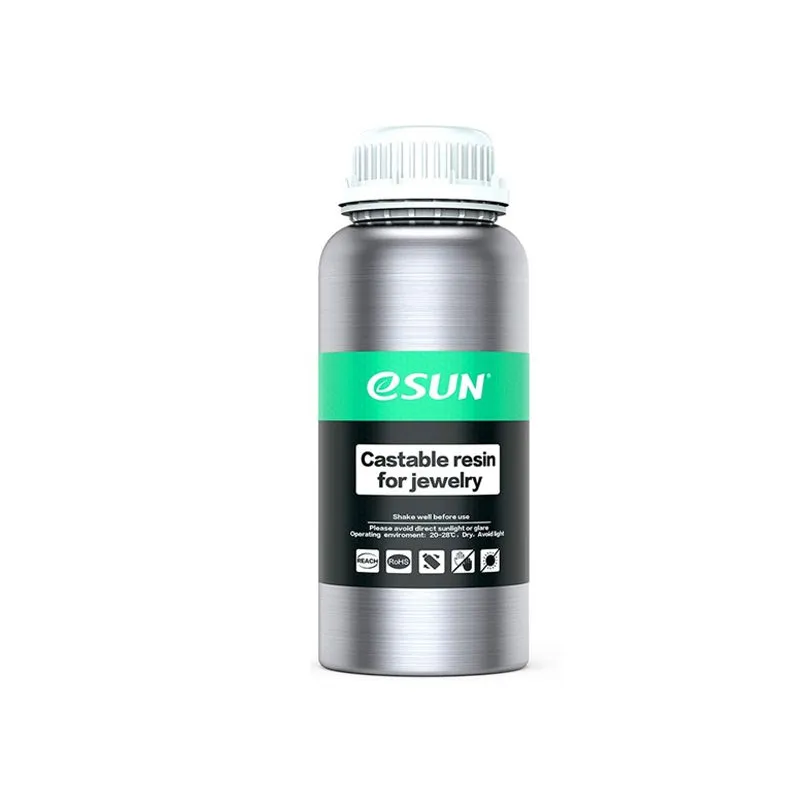

eSUN Castable Jewelry Resin Green 1kg

₹11,609.00 (Inclusive of all taxes)
Out of Stock

eSUN Castable Jewelry Resin is formulated with a high wax content for precise, ash-free lost-wax casting, ideal for intricate jewelry designs. Compatible with 405nm LCD/DLP 3D printers, it offers low volume shrinkage and minimal odor for a clean printing experience.

Features

  • High precision and smooth surface finish for intricate jewelry designs.
  • Engineered for 100% ash-free casting, simplifying post-processing for metal models.
  • Features low volume shrinkage, ensuring dimensional accuracy of printed patterns.
  • Optimized for 405nm LCD/DLP 3D printers, providing broad compatibility.
  • Low odor formulation enhances the printing environment.

Out of stock

Description

The eSUN Castable Jewelry Resin in Green is specifically developed for the demands of lost-wax casting in jewelry manufacturing. Its high wax content is crucial for producing patterns that burn out completely, leaving no ash residue to contaminate metal castings. This resin ensures exceptional detail retention and a smooth surface finish, critical for producing high-quality molds for various precious metals.

This advanced photopolymer resin exhibits low volume shrinkage, maintaining the intricate geometries of your designs from print to cast. It is fully compatible with most 405nm LCD/DLP 3D printers, making it a versatile choice for workshops and designers. With a recommended casting temperature range of 730-780°C, it facilitates reliable burnout processes, and its low odor characteristic contributes to a more pleasant working environment.

Key Features

  • High precision for capturing intricate details in jewelry designs.
  • Smooth surface finish reduces post-processing work on printed patterns.
  • 100% ash-free casting ensures clean burnout and high-quality metal results.
  • Low volume shrinkage property guarantees excellent dimensional accuracy.
  • Low odor formulation improves the overall printing experience.
  • Fine flexibility prevents cracking after initial curing, aiding handling.
  • Wide compatibility with most LCD/DLP 405nm UV resin 3D printers.

Applications

  • Creating master patterns for lost-wax casting of jewelry.
  • Producing intricate models for dental casting procedures.
  • Manufacturing custom metal fittings and small components.
  • Rapid prototyping of detailed, castable designs.
  • Creating bespoke miniature figures for metal replication.

Technical Specifications

ColorGreen
MaterialCastable Resin
Density1.07-1.12 g/cm3
Viscosity100-150 mPa-s (at 25°C)
Wavelength395-405 nm
Tensile Strength42-62 MPa
Flexural Modulus1860-2640 MPa
Hardness (Shore D)60
Flexural Strength49-58 MPa
IZOD Impact Strength44-49 J/m
Casting Temperature730-780°C

Frequently Asked Questions

What are the optimal printing settings for eSUN Castable Jewelry Resin?

Optimal settings vary by printer, but a typical layer height of 0.025-0.05mm and exposure times between 1.5-3.0 seconds are common. Adjust lift speed and base layer count to ensure strong adhesion and detail. Always consult your printer's recommended resin profile for a starting point and fine-tune from there.

Is post-curing required for eSUN Castable Jewelry Resin patterns?

While light post-curing for 30-60 seconds can harden the pattern for easier handling and improved detail, extensive post-curing is not strictly necessary as the resin will fully burn out during the casting process. Over-curing can make the resin brittle, so minimal exposure is recommended before investing.

What casting temperature range is recommended for this resin?

The eSUN Castable Jewelry Resin is designed for a casting temperature range of 730-780°C (1346-1436°F). It's crucial to follow a proper burnout cycle specific to castable resins, ensuring a slow ramp-up to allow the resin to fully vaporize without leaving ash or residual carbon inside the mold cavity.

How should this resin be stored to maintain its properties?

To preserve the resin's quality, store it in its original opaque bottle in a cool, dry, and dark place away from direct sunlight and UV light. Ensure the cap is tightly sealed to prevent air exposure and contamination. Proper storage helps maintain its viscosity and reactivity over time, extending shelf life.

Package Includes

  • 1x eSUN Castable Resin for Jewelry Suite 1kg-Green

Additional Information

Weight 1.2 kg
Dimensions 29 × 13 × 1 cm
