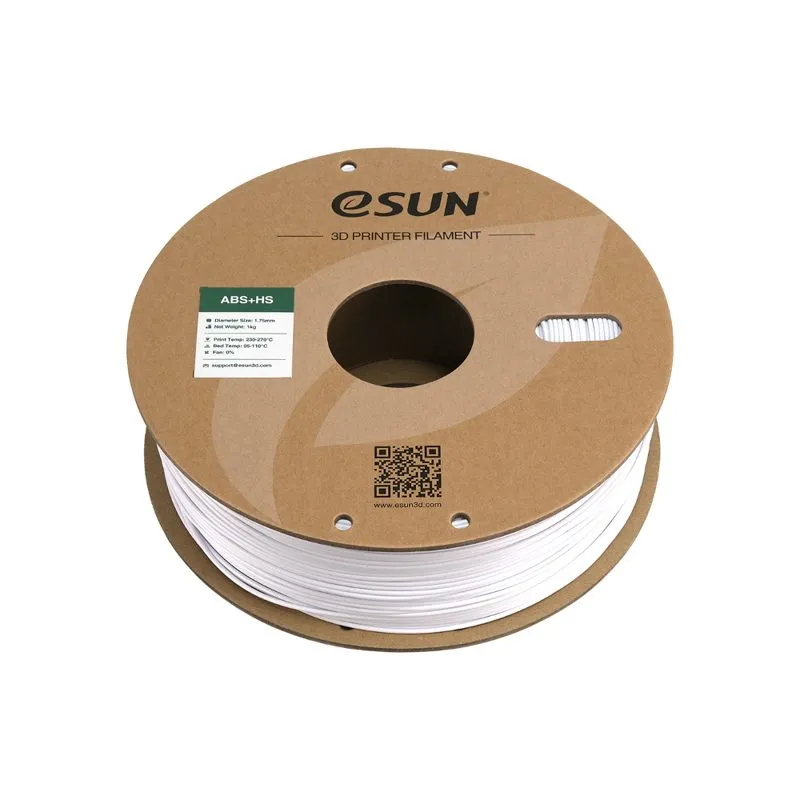

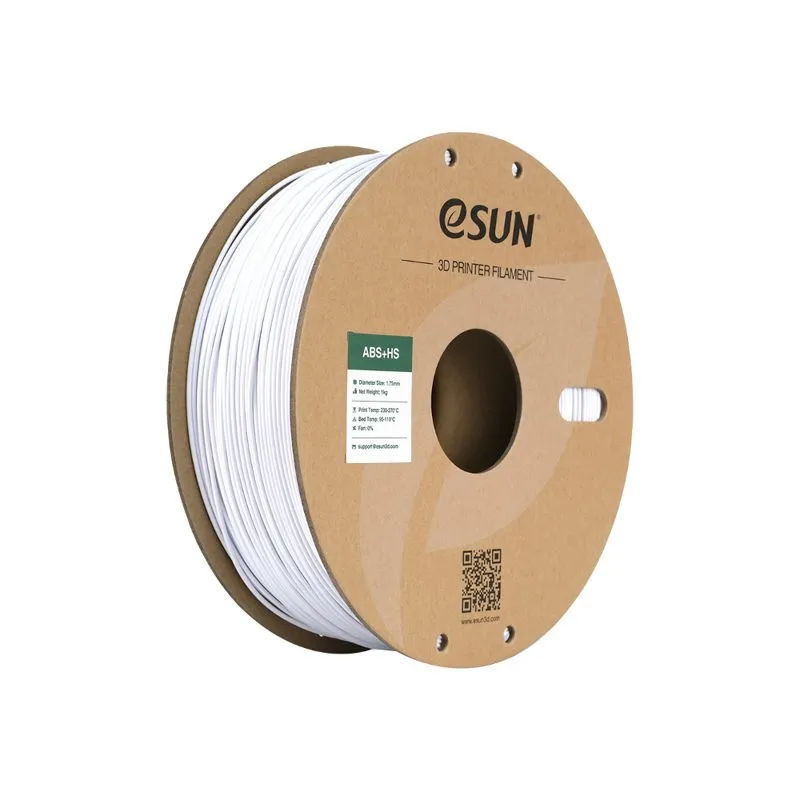

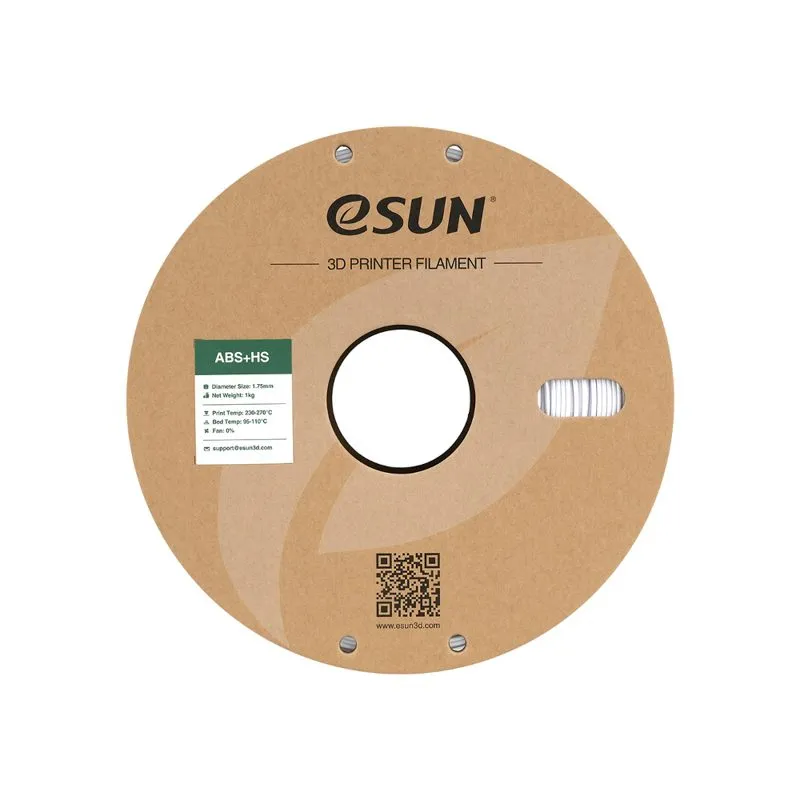

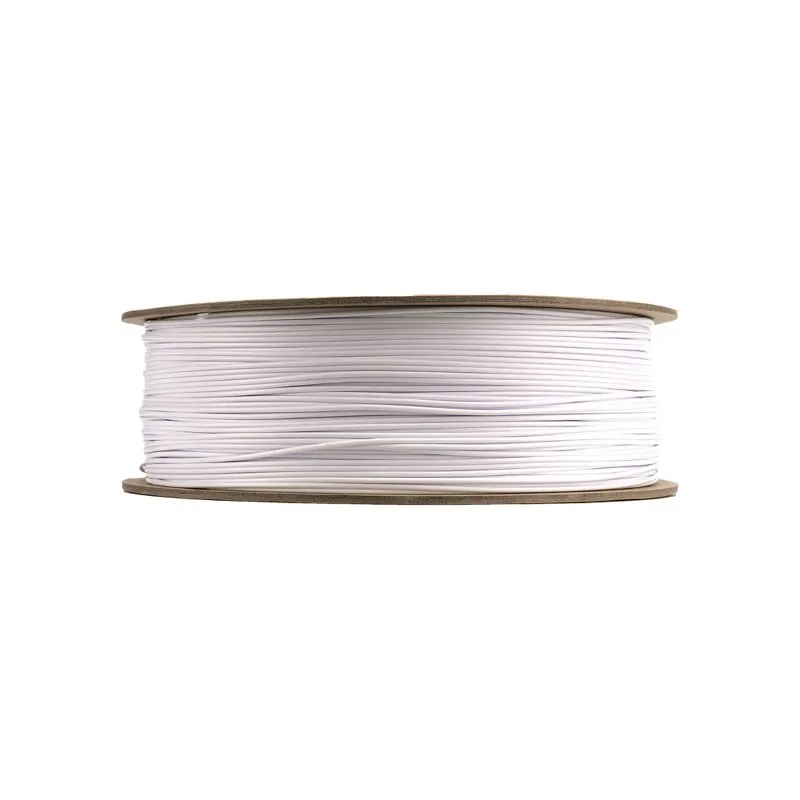

eSUN ABS+ HS Filament - Cold White 1.75mm

₹1,199.00 (Inclusive of all taxes)
Out of Stock

eSUN ABS+ HS is an advanced 1.75mm ABS-based filament engineered for FDM 3D printing, offering enhanced toughness and durability. Its modified formulation ensures low shrinkage and minimal odor, significantly reducing warping and making it suitable for comfortable, extended printing sessions.

Features

  • Engineered for reduced warping and cracking with superior interlayer adhesion.
  • Features low VOC components for a comfortable, low-odor printing experience.
  • Optimized for high-speed 3D printing without compromising part quality.
  • Delivers exceptional toughness and durability for demanding functional prints.
  • Supports acetone polishing for smooth, professional surface finishes.

Out of stock

Description

eSUN ABS+ HS is a highly refined acrylonitrile butadiene styrene (ABS) filament, meticulously engineered for additive manufacturing applications demanding superior mechanical performance and print reliability. This advanced formulation significantly minimizes the inherent challenges of traditional ABS, notably exhibiting substantially lower shrinkage and enhanced interlayer adhesion. These properties collectively mitigate common issues such as warping and cracking, ensuring higher success rates for complex and large-format prints.

Beyond its dimensional stability, ABS+ HS features a low VOC composition, resulting in significantly reduced odor during the printing process. This improvement creates a more comfortable and safer working environment, particularly beneficial for extended print jobs. The material is also optimized for high-speed FDM printing, allowing for rapid production without sacrificing print quality or structural integrity. Furthermore, parts produced with ABS+ HS are amenable to acetone vapor smoothing, providing a seamless, professional surface finish that effectively eliminates visible layer lines.

Key Features

  • Enhanced Dimensional Stability: Engineered with lower shrinkage to ensure precise and accurate 3D printed parts, reducing warp and crack potential.
  • Low Odor Formulation: Contains low Volatile Organic Compounds (VOCs) for a more comfortable and less intrusive printing environment.
  • Superior Heat Resistance: Maintains structural integrity and performance in applications requiring resistance to higher operating temperatures.
  • Acetone Vapour Smoothable: Allows for post-processing with acetone vapor to achieve incredibly smooth, professional-grade surface finishes.
  • Optimized for High-Speed Printing: Designed to deliver consistent quality and strong layer adhesion even at increased printing speeds.
  • Exceptional Durability and Toughness: Provides robust mechanical properties, making it ideal for creating strong and resilient functional prototypes and end-use parts.

Applications

  • Functional Prototyping: Ideal for creating durable and dimensionally stable prototypes for form, fit, and functional testing.
  • Mechanical Components: Suitable for printing gears, housings, jigs, and fixtures that require good impact resistance and strength.
  • Enclosures & Casings: Excellent for robust electronic enclosures and protective housings due to its heat resistance and toughness.
  • Automotive & Engineering Parts: Can be used for non-critical parts in automotive or other engineering applications where higher temperature resistance than PLA is needed.

Technical Specifications

Material TypeABS+ HS (Acrylonitrile Butadiene Styrene High Speed)
Filament Diameter1.75mm
ColorCold White
Density1.04 g/cm³
Heat Distortion Temp (0.45MPa)89 ℃
Melt Flow Index (220°C/10kg)6 g/10min
Elongation at Break3.9 %
Tensile Strength28 MPa
Flexural Strength46 MPa
Recommended Extruder Temp230 - 270 °C
Recommended Printing Speed50 - 300 mm/s
Spool Weight (Gross)1.24 kg (Shipping Weight)

Frequently Asked Questions

What are the optimal printing temperature settings for eSUN ABS+ HS?

The recommended extruder temperature for eSUN ABS+ HS is between 230-270°C. A heated bed at 80-100°C is crucial for optimal adhesion and to further minimize warping. Adjust settings based on your specific printer and part geometry for best results, ensuring consistent extrusion and strong layer bonding.

How can I prevent warping when printing with eSUN ABS+ HS?

Despite its low-shrinkage formula, a heated build plate (80-100°C) and an enclosed print chamber are highly recommended for eSUN ABS+ HS to prevent warping. Using an adhesive like ABS slurry or glue stick on the bed can also significantly improve first-layer adhesion, ensuring stability throughout the print.

Can eSUN ABS+ HS be post-processed for a smoother finish?

Yes, eSUN ABS+ HS filament is compatible with acetone vapor smoothing. This technique dissolves the outer layers, effectively eliminating layer lines and producing a very smooth, glossy, and professional surface finish. Ensure proper ventilation and safety precautions when working with acetone.

What specific benefits does the 'HS' (High Speed) designation offer?

The 'HS' in ABS+ HS signifies its optimization for high-speed 3D printing. This formulation maintains excellent flow characteristics and rapid solidification, allowing for faster print speeds (50-300mm/s) without compromising part strength, dimensional accuracy, or surface quality, enhancing production efficiency.

Package Includes

  • 1x eSUN ABS+ HS Cold White 1.75mm 3D Printing Filament Spool
  • Vacuum sealed bag with desiccant

Additional Information

Weight 1.24 kg
Dimensions 22 × 22 × 9 cm
