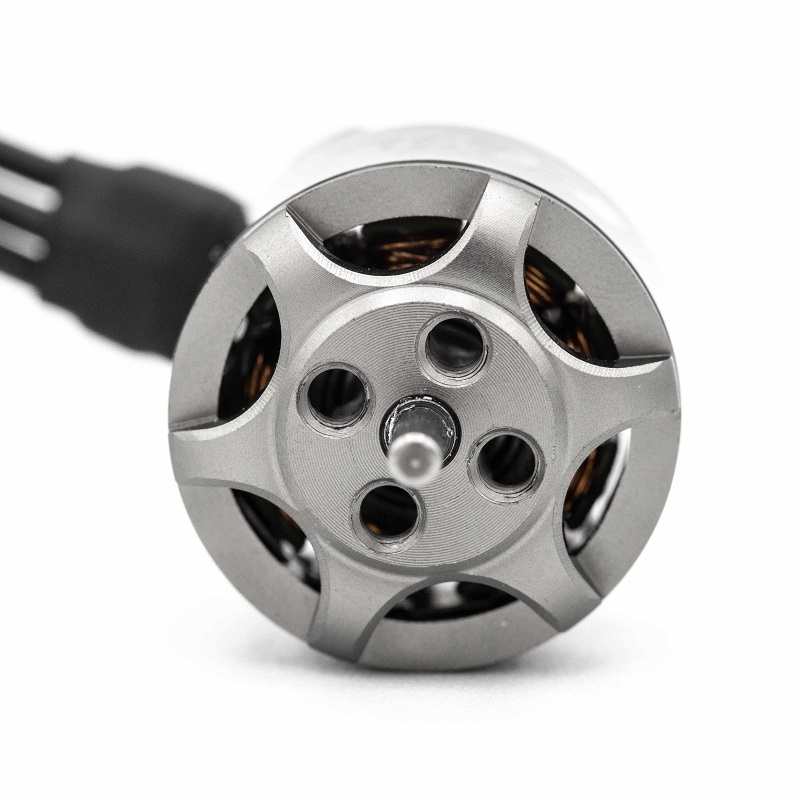

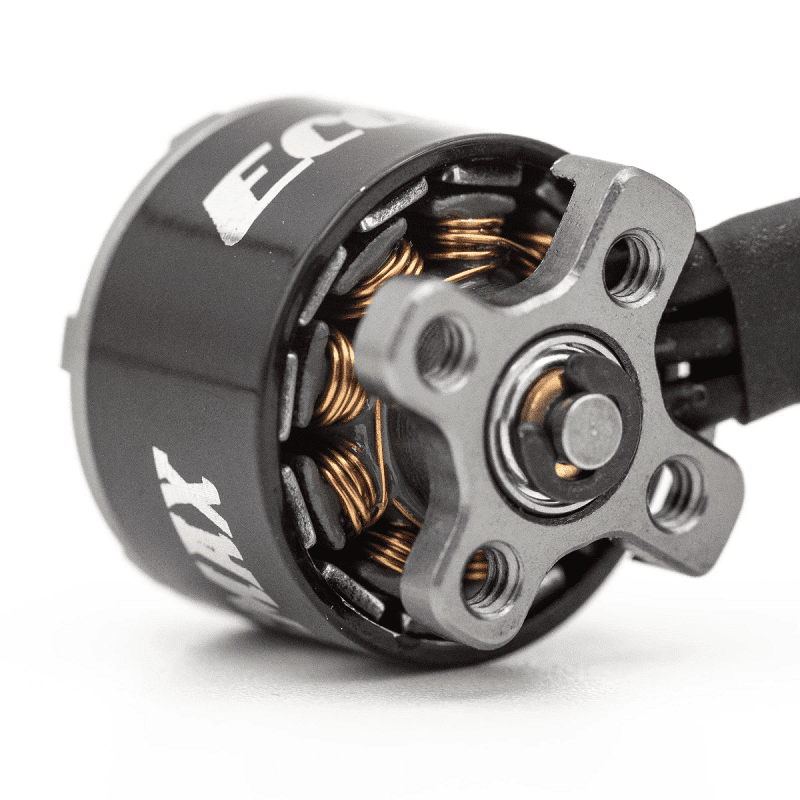

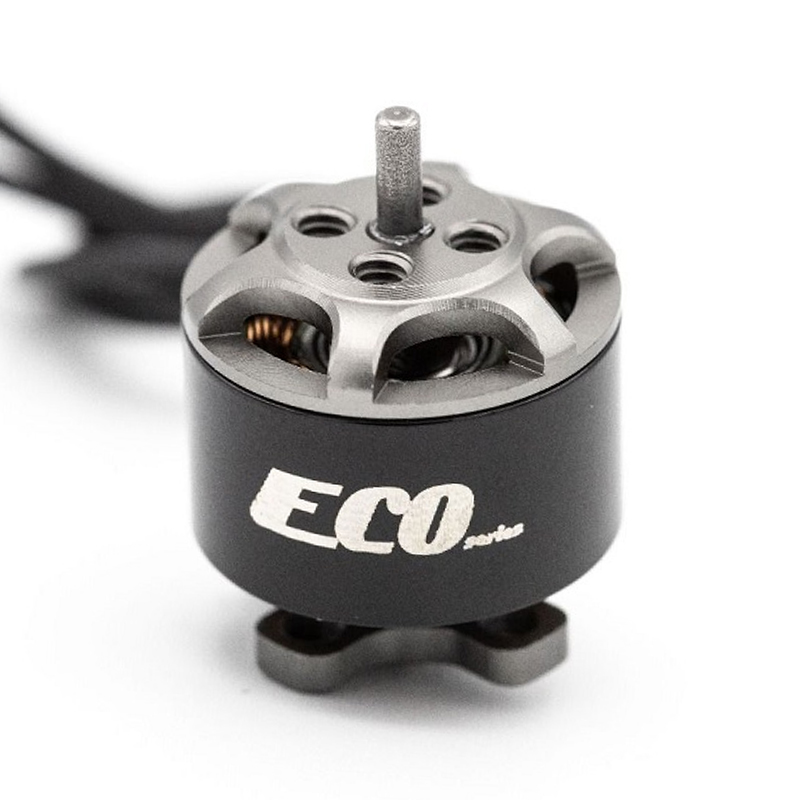

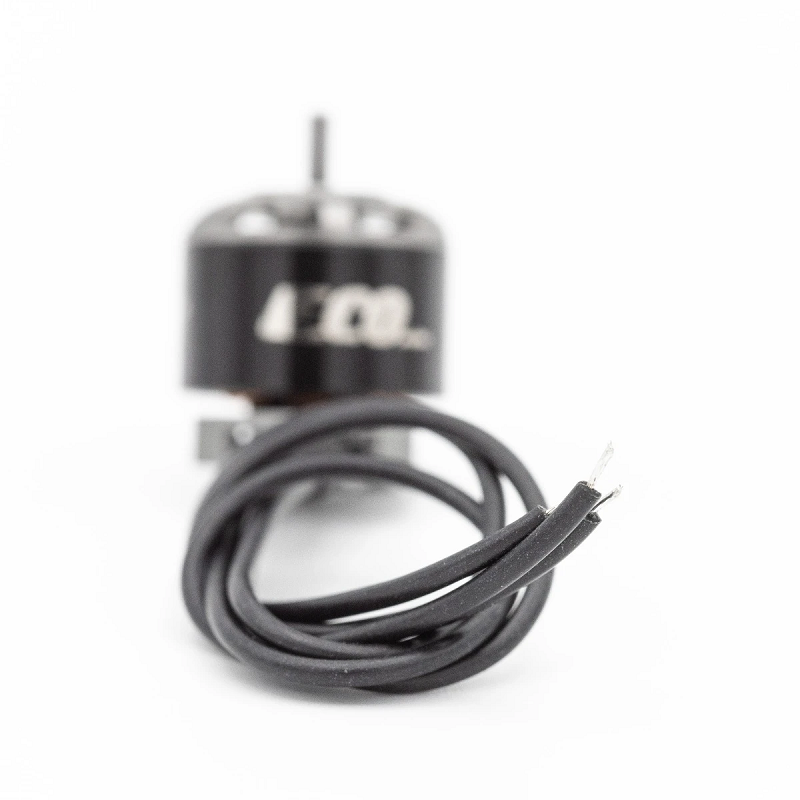

EMAX ECO Micro 1106 4500KV CW Brushless Motor
The EMAX ECO Micro 1106 4500KV brushless motor is engineered for high-performance 2-inch to 3-inch micro FPV drones, optimized for 2S to 3S LiPo batteries. Its 9N12P framework and 8mm tall stator deliver exceptional torque and smoothness for racing and freestyle applications.
Features
- 4500KV rating optimized for 2S-3S LiPo power systems.
- 1.5mm steel prop shaft and 9x9mm mounting pattern for secure installation.
- 9N12P framework with multi-strand copper windings for efficient power delivery.
- Precision CNC-machined housing with factory balancing for minimal vibration.
- Generates up to 280g of thrust on 3S for aggressive micro quad performance.
Out of stock
The EMAX ECO Micro 1106 motor series addresses the critical need for high torque and smooth operation in compact, high-KV motors. Its 8mm tall stator design provides the instantaneous torque typically lacking in micro-class motors, enabling crisp throttle response and precise control for 2-inch and 3-inch propeller setups.
Constructed with a durable steel shaft, premium ball bearings, and a corrosion-resistant anodized finish, this motor is built for longevity and reliability. The precision manufacturing and factory balancing ensure minimal mechanical vibration, which is essential for clean flight controller feedback and optimal performance in micro FPV racing and freestyle drones.
Additional Information
| Weight | 0.0067 kg |
|---|---|
| Dimensions | 1.99 × 1.42 cm |
