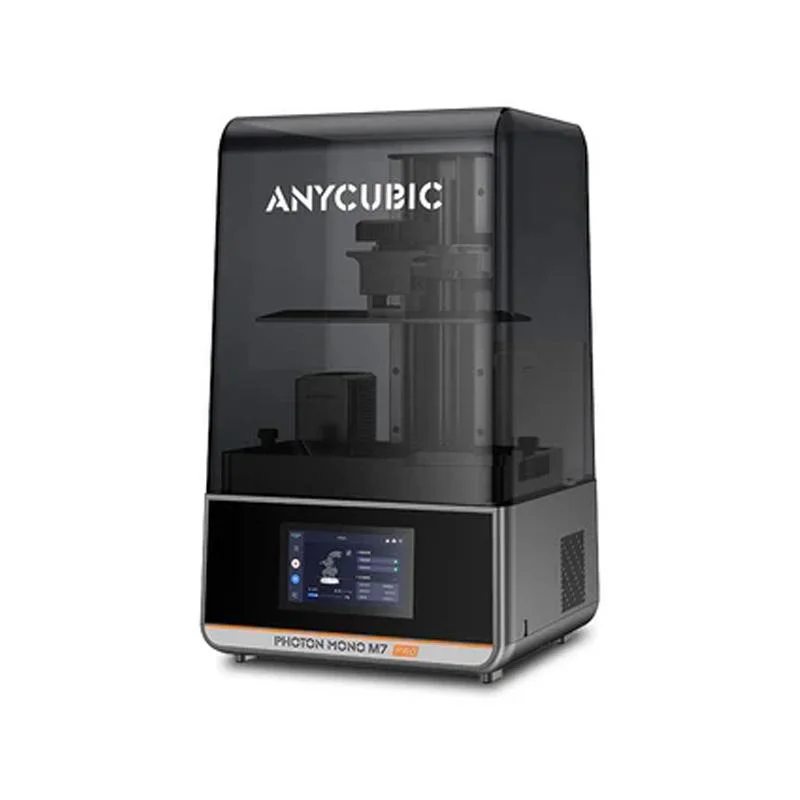

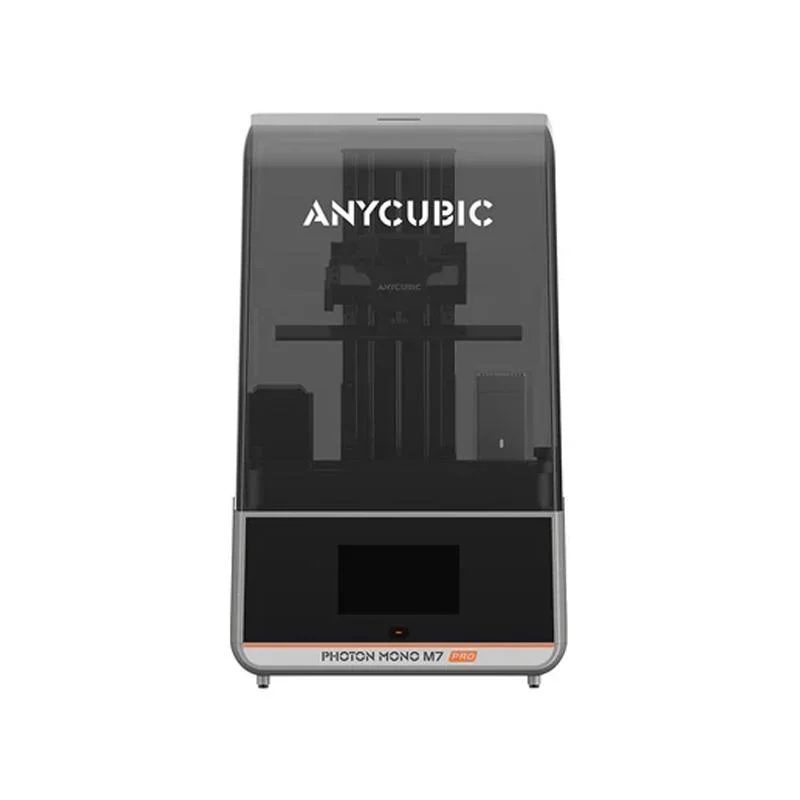

Anycubic Photon Mono M7 Pro 3D Printer
The Anycubic Photon Mono M7 Pro is a high-precision resin 3D printer featuring a 14K resolution display with the LighTurbo 3.0 optical system, capable of achieving print speeds up to 220mm/h. It offers a generous build volume of 223 x 126 x 230 mm and includes leveling-free automatic setup for a streamlined printing workflow.
Features
- Ultra-High 14K Resolution: Achieve exceptional detail and fidelity with a 13320 x 5120 pixel display, powered by the LighTurbo 3.0 optical system for superior light uniformity.
- Rapid Printing Speeds: Print models swiftly at up to 220mm/h using high-speed resins, significantly reducing production times.
- Expansive Build Volume: Utilize a generous 223 x 126 x 230 mm build area, enabling the creation of larger models or batch printing multiple parts.
- Leveling-Free Operation: Benefit from automatic platform leveling, simplifying setup and ensuring consistent first-layer adhesion without manual calibration.
- Intelligent Resin Management: Features automatic resin refill and a dynamic temperature-controlled vat, optimizing resin conditions and print reliability.
Out of stock
The Anycubic Photon Mono M7 Pro is engineered for users demanding ultra-high precision and rapid production in resin 3D printing. Integrating the LighTurbo 3.0 optical system with a 14K ultra-high-definition screen, this printer delivers exceptional detail and robust performance. Its suite of intelligent features, including automatic leveling and resin management, streamlines the printing process for both professional and enthusiast applications, enabling efficient creation within its ample build volume.
At its core, the LighTurbo 3.0 system, combined with Fresnel lenses and front-facing reflectors, maintains light parallelism at less than 3 degrees, ensuring over 90% light uniformity across the build plate. This precise light distribution is crucial for achieving tight dimensional tolerances of ±0.01-0.05mm. The printer also incorporates an intelligence-assisted system that includes dynamic temperature control for the resin vat, maintaining optimal resin viscosity throughout the print. Coupled with automatic resin refill and recycling, this minimizes waste and ensures consistent material supply.
Further enhancing its operational efficiency, the Photon Mono M7 Pro features advanced automatic intelligent detections. These capabilities include failed print detection to halt operations upon anomaly, release film lifespan reminders, resin residue detection for screen protection, and real-time resin level monitoring to prevent print interruptions due to insufficient material. These integrated smart functions reduce manual intervention, safeguard components, and ensure a more reliable and productive 3D printing workflow.
Additional Information
| Weight | 13 kg |
|---|---|
| Dimensions | 65 × 40 × 40 cm |
