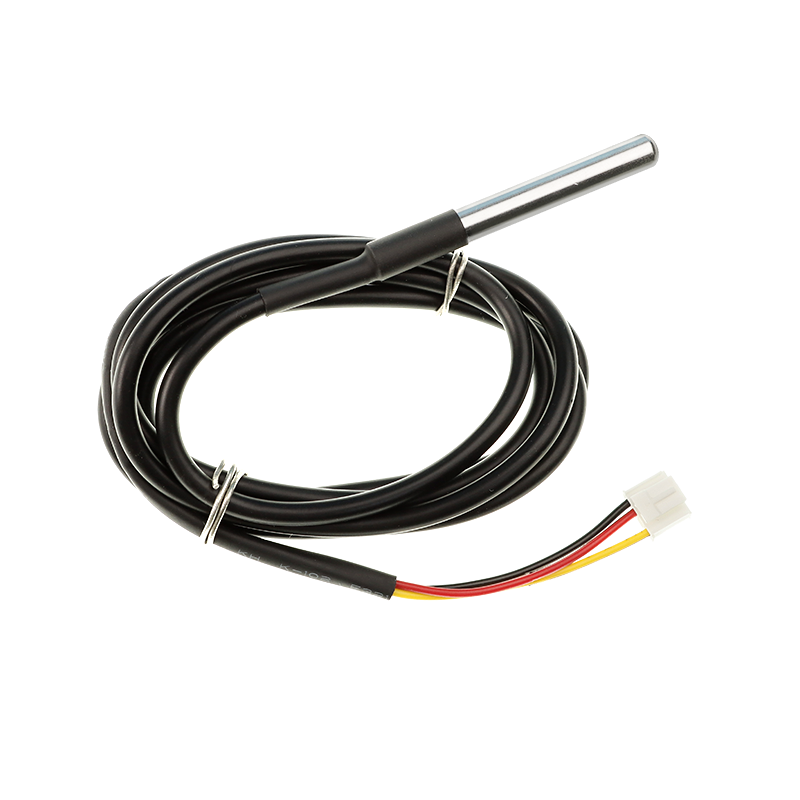

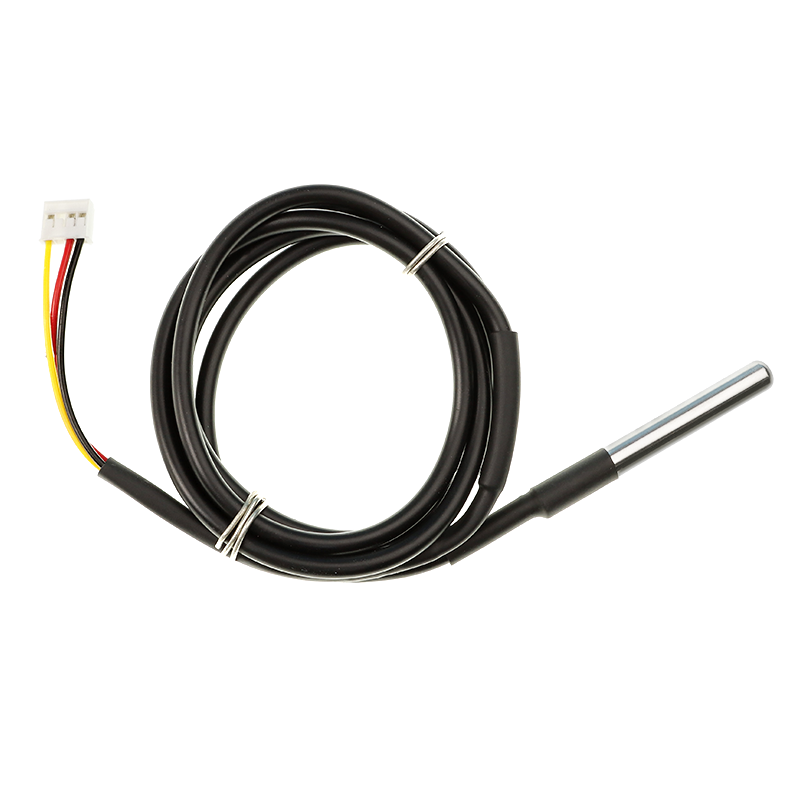

Elecrow Crowtail-One Wire Waterproof Temperature Sensor - DS18B20 Stainless Steel Probe
The Elecrow Crowtail-One Wire Waterproof Temperature Sensor integrates a DS18B20 digital sensor within a stainless steel probe, offering a robust solution for remote or wet environment temperature monitoring from -55°C to +125°C. It operates on a 3.0V to 5.5V supply and communicates via a 1-Wire digital interface, making it compatible with Arduino, Raspberry Pi, ESP32, and other microcontrollers.
Features
- Digital DS18B20 sensor with 9 to 12-bit configurable resolution for precise temperature readings.
- Stainless steel waterproof probe (6mm diameter, 30mm length) suitable for harsh or wet conditions.
- Wide operating temperature range from -55°C to +125°C with ±0.5°C accuracy from -10°C to +85°C.
- Simple 1-Wire digital interface requires only a single data pin, enabling daisy-chaining of multiple sensors.
- Crowtail-compatible connector for easy integration with modular prototyping systems.
Out of stock
This sensor is a waterproof, industrial-grade adaptation of the Maxim Integrated DS18B20 digital temperature sensor. Housed in a sealed stainless steel tube, it provides reliable measurements in environments where moisture, condensation, or immersion is a concern. The 1-Wire communication protocol ensures signal integrity over extended cable runs without analog signal degradation, making it ideal for distributed sensing networks.
The sensor delivers configurable 9 to 12-bit temperature readings, allowing users to balance resolution against conversion time. Its wide supply voltage range of 3.0V to 5.5V ensures compatibility with both 3.3V and 5V logic systems commonly found in development boards and industrial controllers. The PVC-jacketed cable is rated for continuous use below 100°C, while the probe itself can withstand the full sensor range.
Additional Information
| Weight | 0.026 kg |
|---|---|
| Dimensions | 12 × 8 × 2 cm |
